Smart Dedicated Design STR7202 - Finalizing Installation

Installation Manual STR7202 TAG4 & SFM7704 TAG1
DBCI-0512-0052-V013
STR7202 2-Side Trimmer & SFM7704 Square Fold Module
Name: RI01
Date: 29-3-2017
Page: 60 / 72
5. Installation (continued)
Contents
5.4 Finalizing Installation
5.4.1 STR on F1

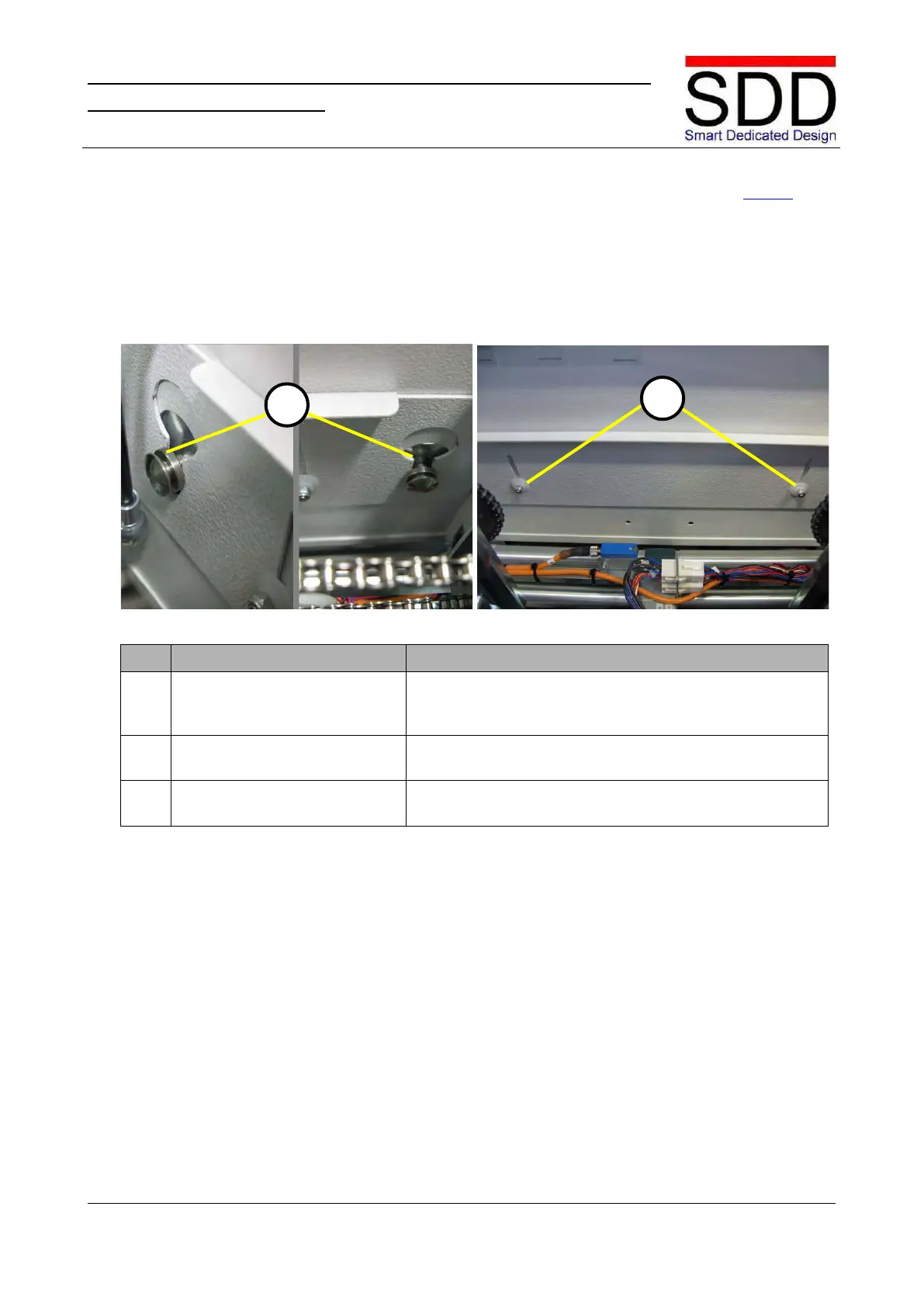

Fig. 5.4.1.1 Fig. 5.4.1.2
Step
Action
Remarks
1.
Locking STR
Lock the STR to the F1 by pulling the STR Docking
Bracket upwards in the outer slot [A] of the Stud. (Fig.
5.4.1.1)
2. Secure Docking Bracket Secure the Docking Bracket by tightening the nuts [B] with
a 7mm wrench. (Fig. 5.4.1.2)
3.
Place and secure Covers
Reverse the procedure in steps 4.4.1 #1-3 on page 13 to
place back and secure Covers on the STR and SFM.
A
B
