Removing
X

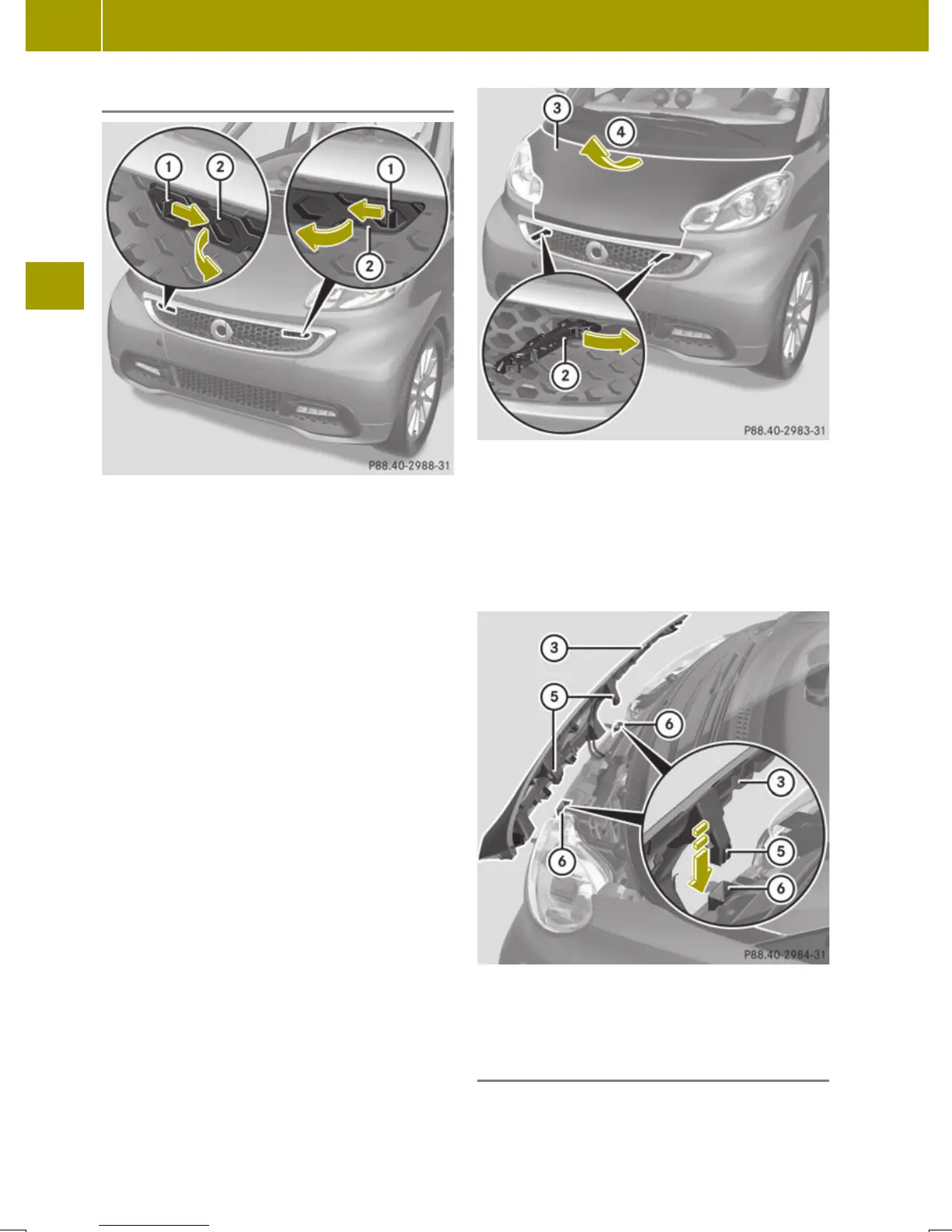

Using a suitable object, push both open-
ers : towards the inside in direction of
the arrows.
Both levers ; are released from the
radiator grille.
X
Pull both levers ; forward in direction
of the arrows.
X
Pull both levers ; fully towards the out-
side in the direction of the arrows.
X
Lift the front of service flap =.
X
First pull service flap = forward
slightly and then remove it upwards as
indicated by arrow ?.
X
Insert hooks A on the back of service
flap = into openings B.
Remounting
X
Lift service flap = out of openings B.
124
Front compartment
>> Operation.
