Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X
Turn the exterior lamp switch to position
$ (Y page 64).
X
Switch off the ignition.
X
Open the service flap (Y page 123).

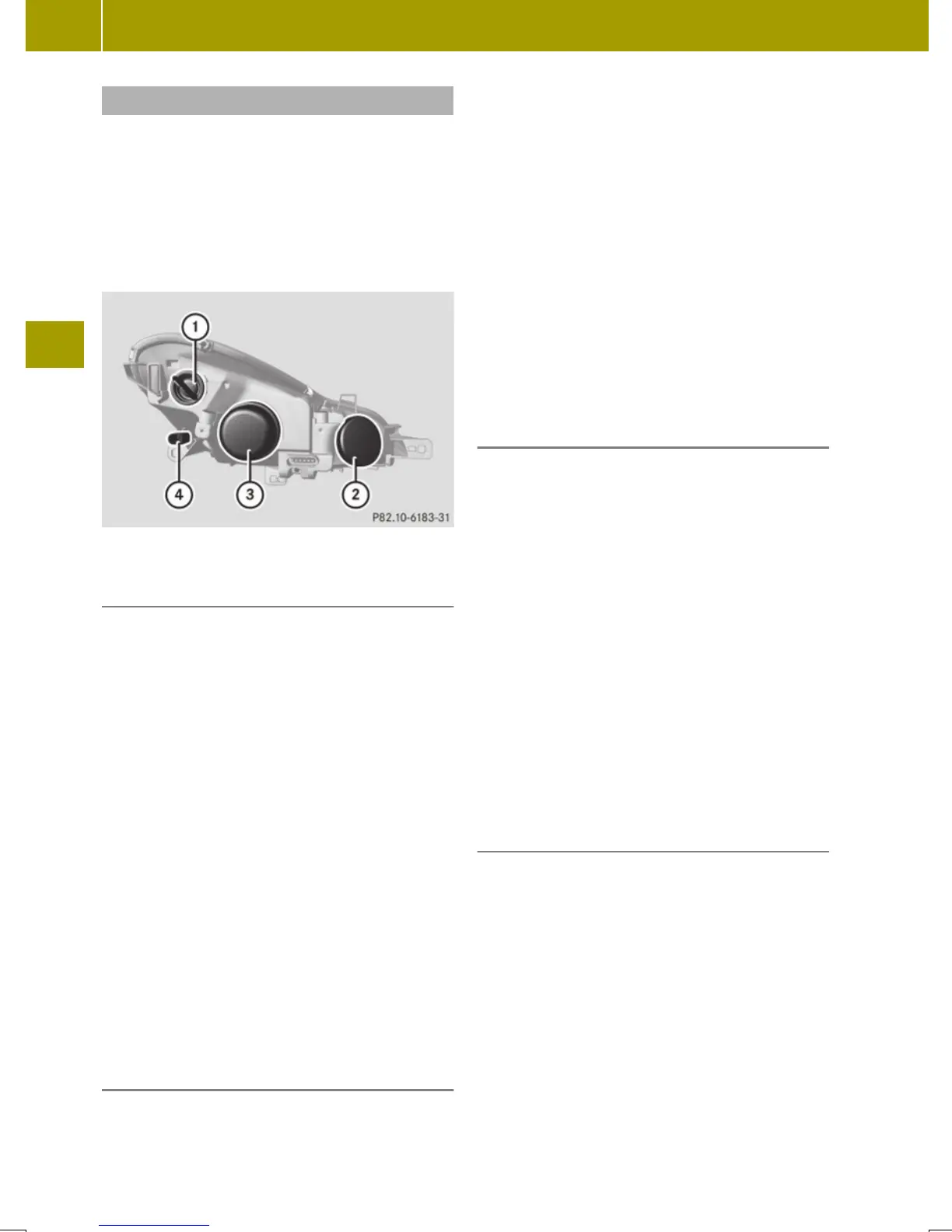

Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb
X
Removing:
Driver’s side: Turn bulb socket ? toward
the outside.
Passenger side: Turn bulb socket ?
toward the outside.
X
Pull bulb socket ? out of the headlamp
housing.
X
Pull the bulb out of bulb socket ?.
X
Installing: Insert the new bulb into bulb
socket ?.
X
Insert bulb socket ? into the headlamp
housing.
X
Driver side: Turn bulb socket ? toward
the inside.
Passenger side: Turn bulb socket ?
toward the inside.
Low‑beam headlamp bulb
X
Removing: Take off low‑beam headlamp
cover =.
X
Detach the electrical connector.
X
Bend the retainer spring end down and
forward until it unclips. Fold the
retainer spring back.
X
Pull the bulb out of the headlamp hous-
ing.
X
Installing: Insert the new bulb into the
headlamp housing.
X
Fold the retainer spring forward.
X
Bend the retainer spring end forward
then up and back to clip in.
X
Attach the electrical connector.
X
Reinstall low‑beam headlamp cover =.
High‑beam headlamp bulb
X
Removing: Take off high‑beam headlamp
cover ;.
X
Detach the electrical connector.
X
Tilt the bulb socket down and pull it out.
X
Pull the bulb out of the bulb socket.
X
Installing: Insert the new bulb into the
bulb socket.
X
Fit the bulb so that the retaining lug of
the base plate is pointing up.
X
Press the bulb into the bulb socket until
it is fully engaged.
X
Attach the electrical connector.
X
Reinstall high‑beam headlamp cover ;.
Front turn signal lamp bulb
X
Removing: Turn bulb socket : counter-
clockwise by a quarter of turn and pull it
out of the headlamp housing.
X
Press gently onto the bulb and turn it
counterclockwise.
X
Pull the bulb out of bulb socket :.
X
Installing: Insert the new bulb into bulb
socket :.
X
Press gently onto the bulb and turn it
clockwise.
X
Insert bulb socket : into the headlamp
housing.
