HGM1780 Automatic Genset Controller
ISSUE 2013-04-03
Version1.7
Page 8 of 24
HGM1780 Automatic Genset Controller

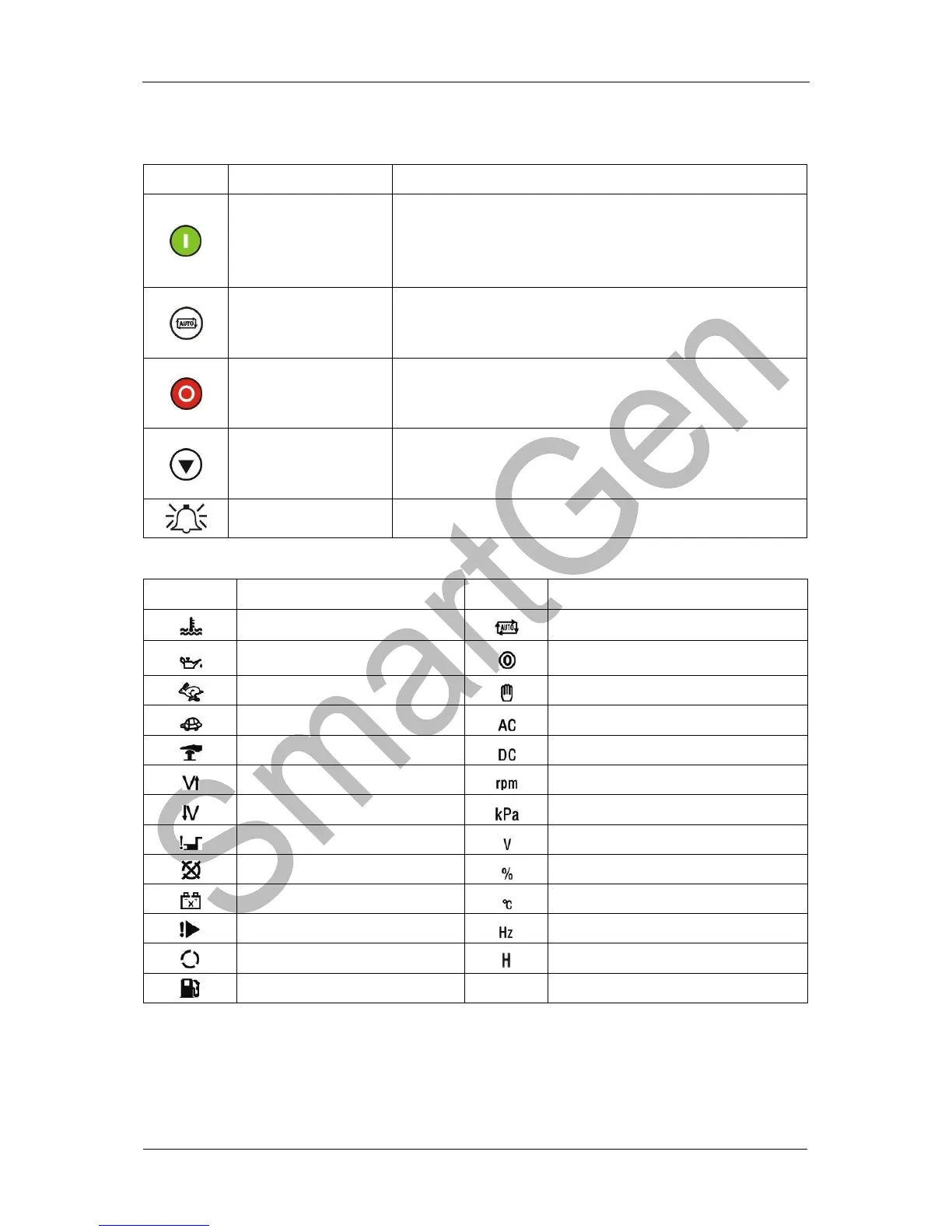

4.2. LCD ICONS
4. OPERATION
4.1. PANEL KEYS
Key
Definition
Description
Manual/Decrease
Pressing this button will start the generator
manually and place it into its manual mode; in
settings menu moves cursor down and decreases
the set value.
Auto/Increase
Pressing this button will place the module into its
auto mode; in settings menu moves cursor up and
increases the set value.
Stop
Pressing this button in any situation will shut down
the generator and place it into its standby mode; in
case of alarm, pressing this button will clear alarms.
Turn Page
/Confirm
Using this button you can scroll pages of the LCD
monitor; in settings menu press to move cursor and
confirm.
Alarm Indicator
This indicator will flash when an alarm occurs.
Icon
Definition
Icon
Definition
High Temp. Alarm
Auto Mode
Low Oil Pressure
Stop Mode
Over Speed Alarm
Manual Mode
Under Speed Alarm
Gens Volts Indication
Emergency Stop
Battery Volts Indication
Over Voltage
Speed Unit (Per Minute)
Under Voltage
Oil Pressure Unit
Fail to start
Voltage Unit
Fail to stop
Fuel Level Unit (%)
Voltage Abnormal
Temperature Unit
Auxiliary Alarm
Frequency Unit
Normal Run
Hours Count
Fuel Level Low
A
Load Current
