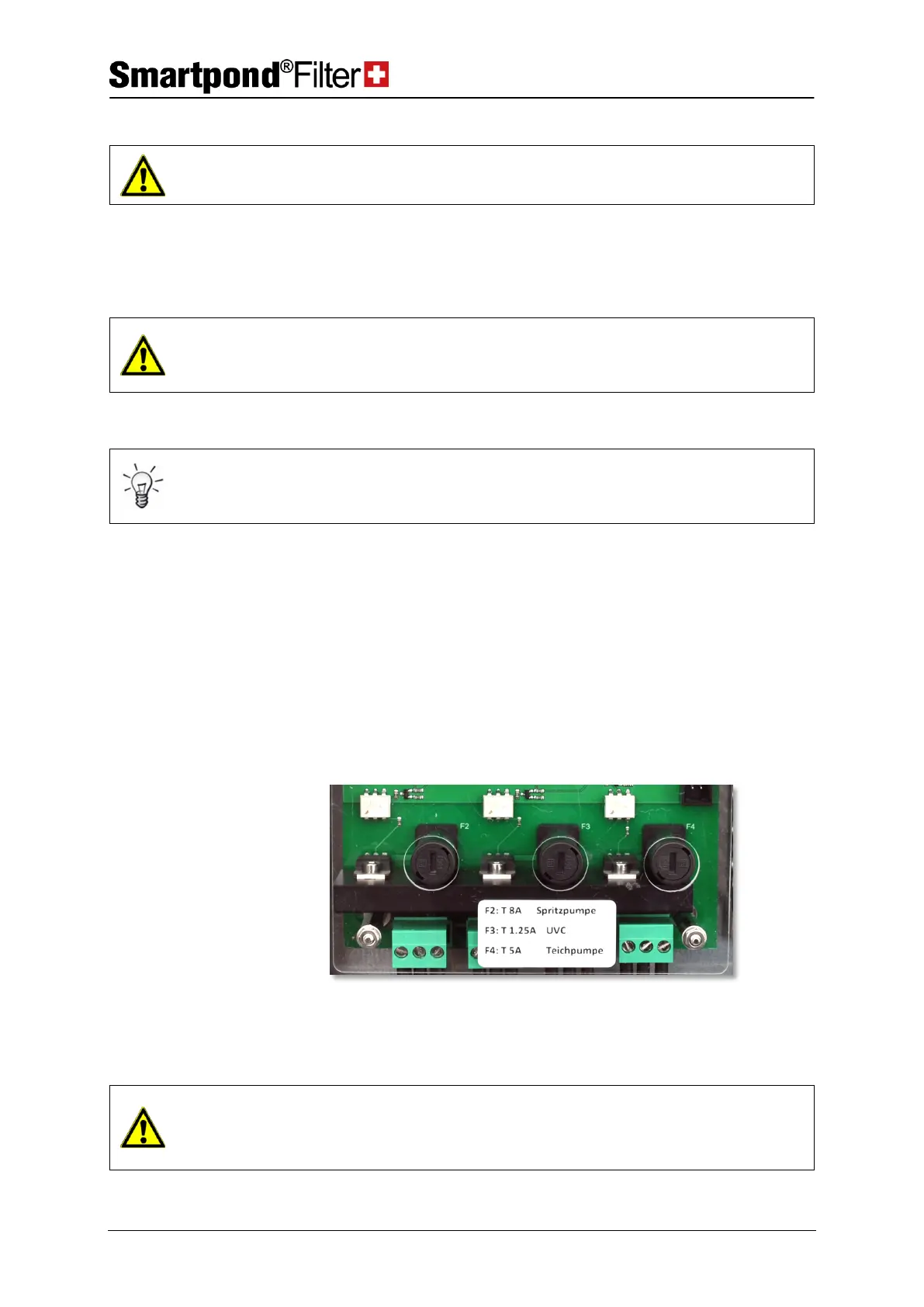

3.3.2 Electrical installation
Before handling the filter, the power plug shall be drawn out of the main
power supply socket for safety reasons.
The filter is delivered in mounted and operational mode. The control unit
box must be protected from rain/water and moisture and hung up in frost-
free surroundings.
FI switch: With regard to electrical installation of the plant, it must be
assured that the power supply is passed through a residual-current circuit
breaker
The switch in the control unit box is designed for a total of 16 A of current.
In order to guarantee the safety functions, the pond pumps and pressure
pump as well as the optional immersing UV-C shall be directly connected to
the control unit box.
After the filter has been properly positioned, all supply and return pipes
have been installed and ca. 40cm water has been allowed to enter, the
power cable can be connected with the mains.
Fuses for the power sockets in the control unit box
F2 spraying pump – T 8A
F3 UVC – T 1.25A
F4 pond pump – T 5A
Only use slow-blow fuses (5x20mm)!
