Cleaning of the belt spraying nozzle
Instruction manual EBF / EBF ECO page 18 of 19
11/2014
(e.g. thin needle).
Insert the nozzle
When the nozzle is being inserted, it shall be made sure that the thread is
not overtightened.
Non-return valve
A non-return valve is present beside the manometer which prevents
dripping of water from the spraying nozzle when the water level is high in
the pond.
Water nozzle, Rinsing
channel
Another nozzle directed inwards facilitates the efficient transport of dirt
and contaminated water away from the system into the dirt outlet
channel.
Instruction
The opening of the nozzle is very delicate and it shall not be damaged!

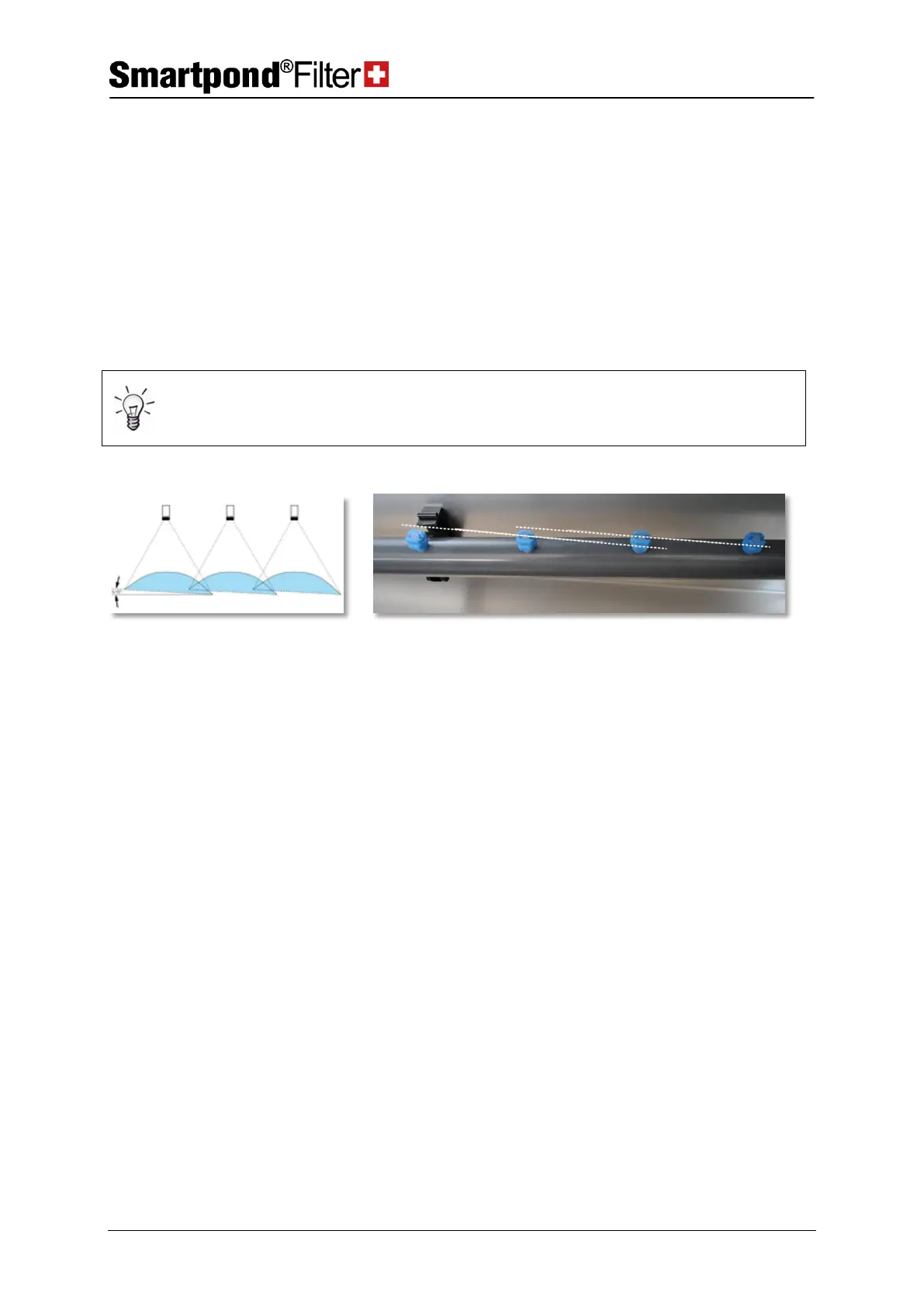

The nozzles must be aligned to each other at a slightly slant angle so that
the ‘‘fan beam’’ overlaps and covers a large area (see picture).
Alignment / Angle of the flushing nozzles
7 Replacement / Guarantee
Only original replacement parts of the firm AquaFil GmbH shall be used.
In case of improper installation, especially due to non-compliance with
the difference in the installation height of the S-Filter to the water level of
the pond, the manufacturer will not accept any claims for damage
resulting from it.
For defects which arise during and after the winter season, a guarantee
claim cannot be taken into consideration, if the plant has not been
adequately protected against temperatures lower than zero degrees.
The following wear parts are excluded from the guarantee:
 Filter belt
 Spraying nozzles
 Fine filter insert
