SR808ac Cable Modem User Manual
13

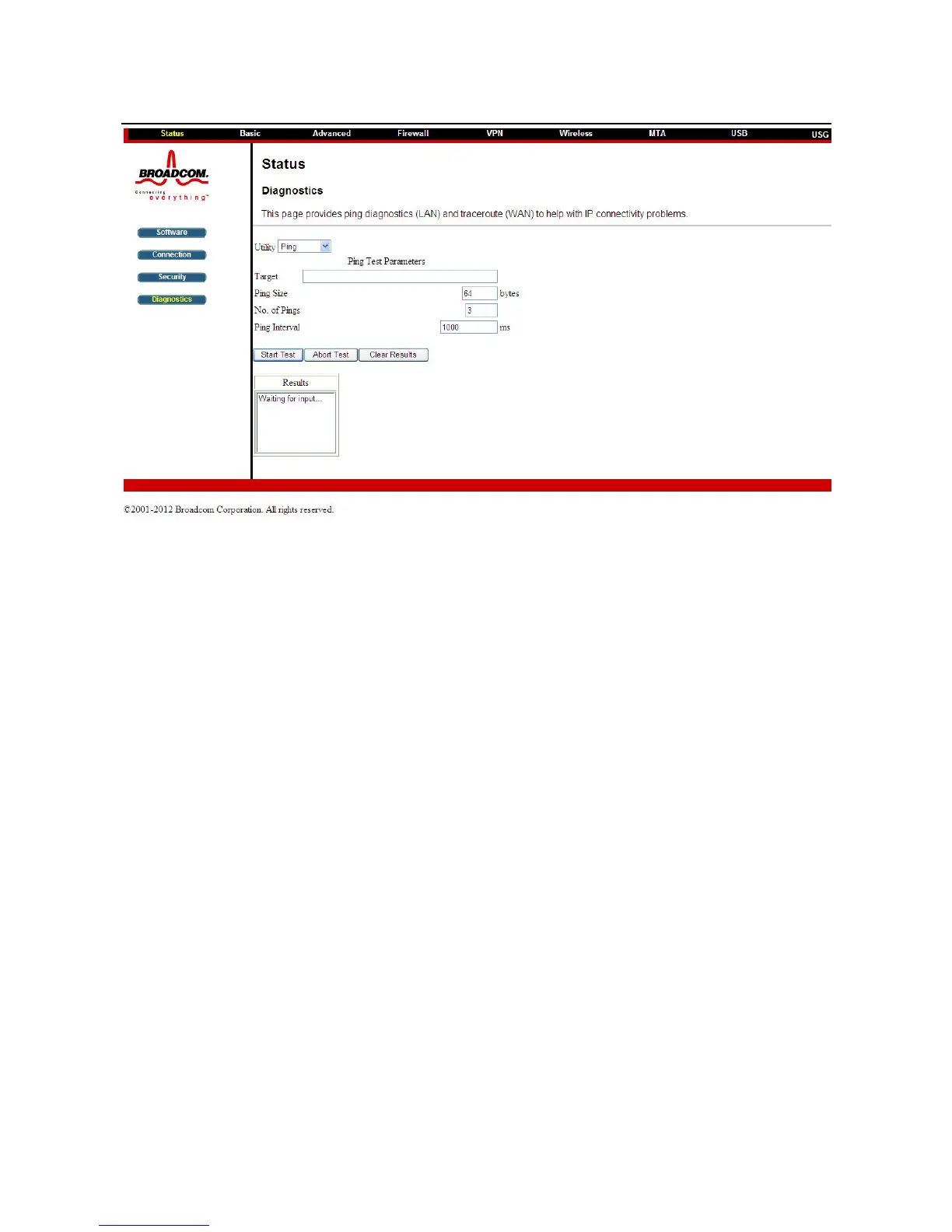

Figure 6 Diagnostic information
Two utilities are provided for troubleshooting network connectivity: Ping and
Traceroute.
Ping allows you to check connectivity between the CMRG and devices on the LAN.
Traceroute allows you to map the network path from the CMRG to a public host.
Selecting Traceroute from the drop-down Utility list will present alternate controls for
the traceroute utility: To run either utility, make any changes to the default parameters
and select Start Test to begin. The window will automatically be refreshed as the
results are displayed in the Results table.
5.2 Basic
Choose Basic and the submenus of Basic are shown as below:
