-15-

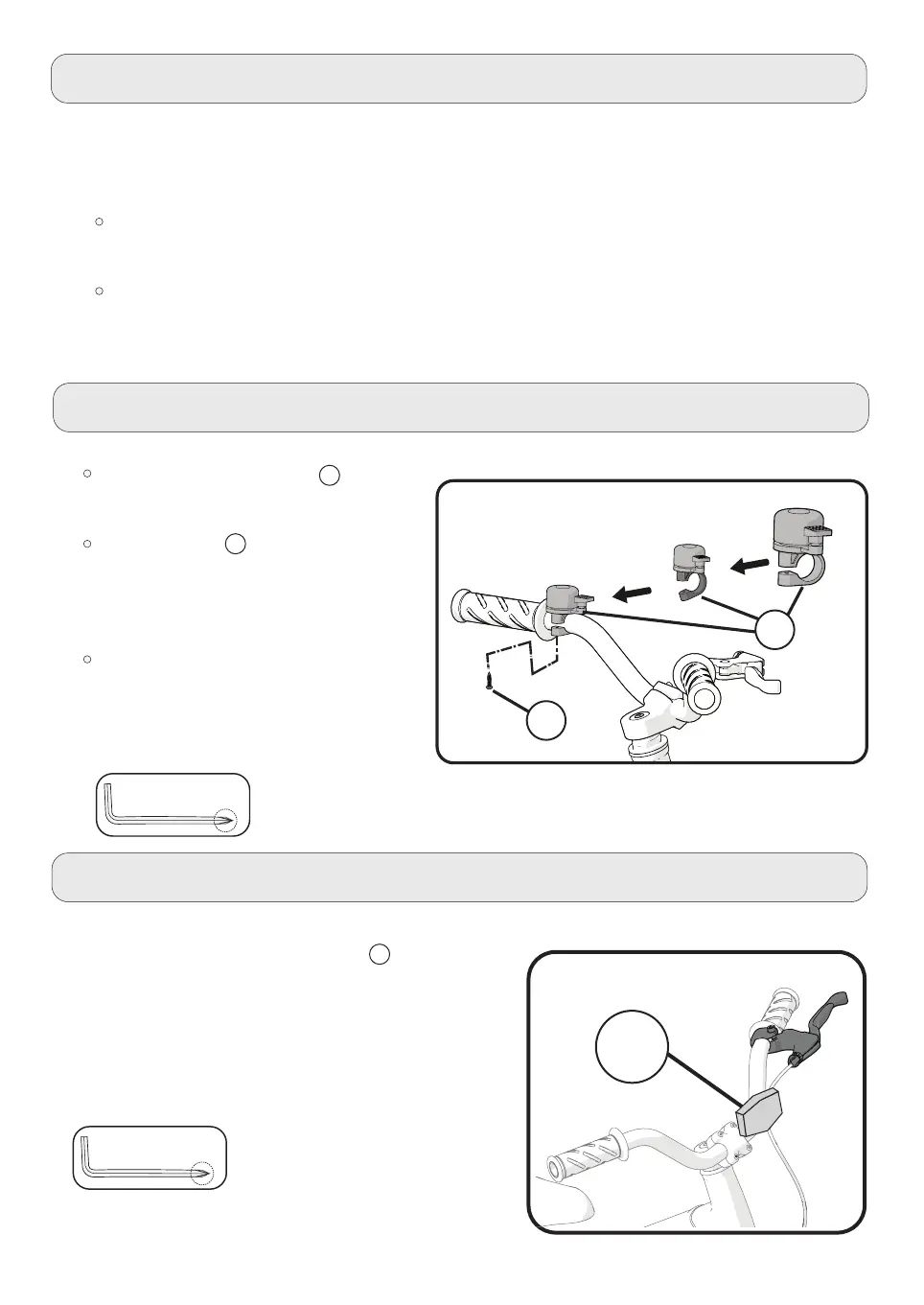

Bell Feature
In case the mounting screw A is
factory installed remove it and set it
aside.
Open the clamp B just enough so that
the handlebar can be fit on.
Position the bell / accessory so that it
can be in proper level and position as
shown.
Tighten the screw securely. Be careful
not to over tighten it as this could
damage the clamp.
B
A
Reflector Installation
Reflector Installation:
1. Position the FRONT white reflector A so that it points
in a straight forward manner.
2. Tighten the clamp screw carefully.
NOTE:
Do not over-tighten as this would damage the
clamp.
Testing The Seat - Post Clamp Tightness
To test the tightness of the seat-post clamp:
Try turning the seat side-to-side.
If the Seat Post moves in the seat tube:
Tighten the Allen screw which is on the seat-post clamp.
Repeat this test again, until the seat post does not move in the seat tube.
6mm / 0.23‘’
6mm / 0.23‘’
A
