SMC Networks EX600 Series Opration Manual

-12-
EX※※-OMR1012
Mounting and Installation
■
Installation

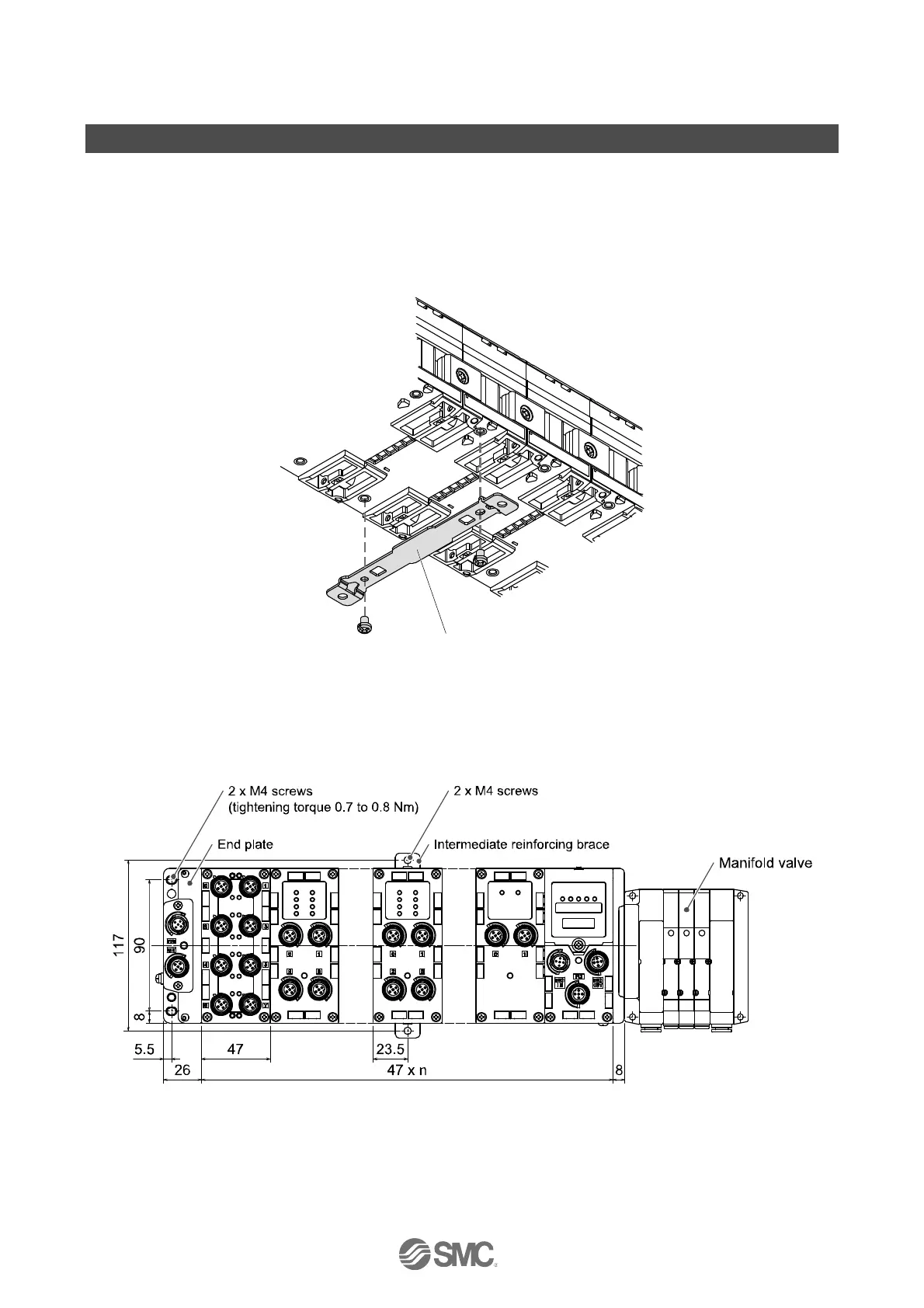

•Direct mounting
(1) Direct mounting
When joining six or more units, fix the middle part of the complete EX600 unit with an intermediate
reinforcing brace (EX600-ZMB1) before mounting using 2-M4 x 5 screws.
(Tightening torque: 0.7 to 0.8 Nm)
Intermediate reinforcing brace
(
EX600-ZMB1
)
(2) Fix and tighten the end plates at one end of the unit. (M4)
(Tightening torque: 0.7 to 0.8 Nm)
Fix the end plate at the valve side while referring to the operation manual of the corresponding valve
manifold.
n (Number of connected Units) ≤ 10
