-18-
EX※※-OMR1012

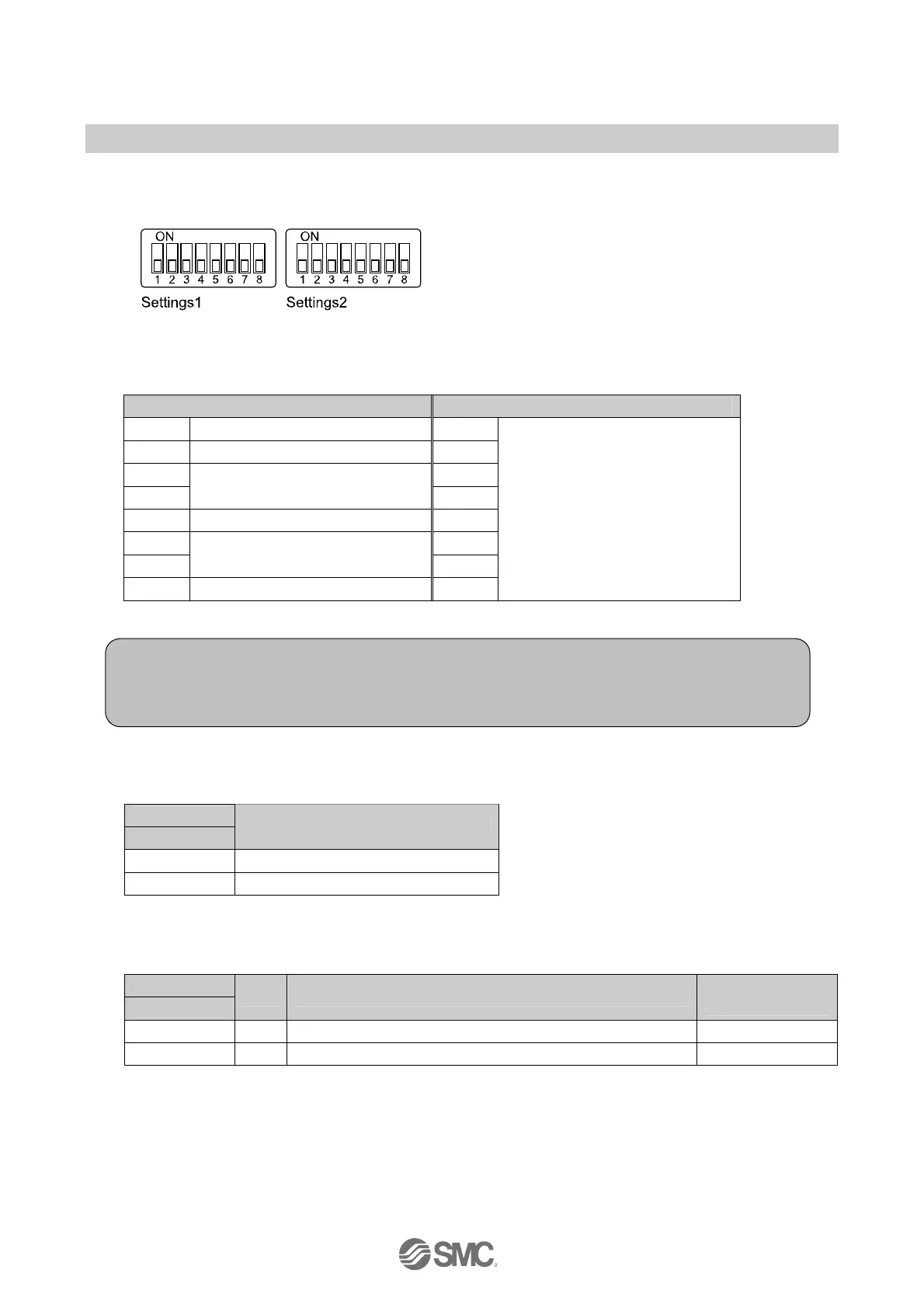

Switch setting
The range of IP address that can be set changes by 5 of the settings1.
(1) 5 of the settings1 is OFF
IP address range: 192.168.0.1 to 192.168.1.254.
Subnet mask: 255.255.255.0
Settings1 Settings2
1 Hold/Clear setting 1
2 Diagnostics setting 2
3 3
4
Reserved
4
5
OFF
5
6 6
7
Reserved
7
8 IP address byte 3 setting 8
•IP address byte 4 setting
•DHCP mode setting
•HOLD/CLEAR switch: Sets the output status when the fieldbus has a communication error or is in idling
state.
Settings1
1
Content
OFF Output is OFF. (default setting)
ON Holds the output.
: This switch can be enabled and disabled by parameter.
•Switch for diagnosis: Allocates the diagnostic data to the input data.
Settings1
2
Mode Content
Diagnostic size set
for the input
OFF 0 Input data only (default setting) 0 byte
ON 1 Input data + System diagnosis + Unit diagnosis 4 bytes
●Precautions for handling
•Handle the switch with care. Excessive force can break the switch.
•3, 4, 6, 7 of the Settings1 switch are not used.
