2.1 Front Panel
The front panel of SMCFS2401 consists of switch model, switch LED indicators,
and 24 10/100Mbps RJ-45 ports.

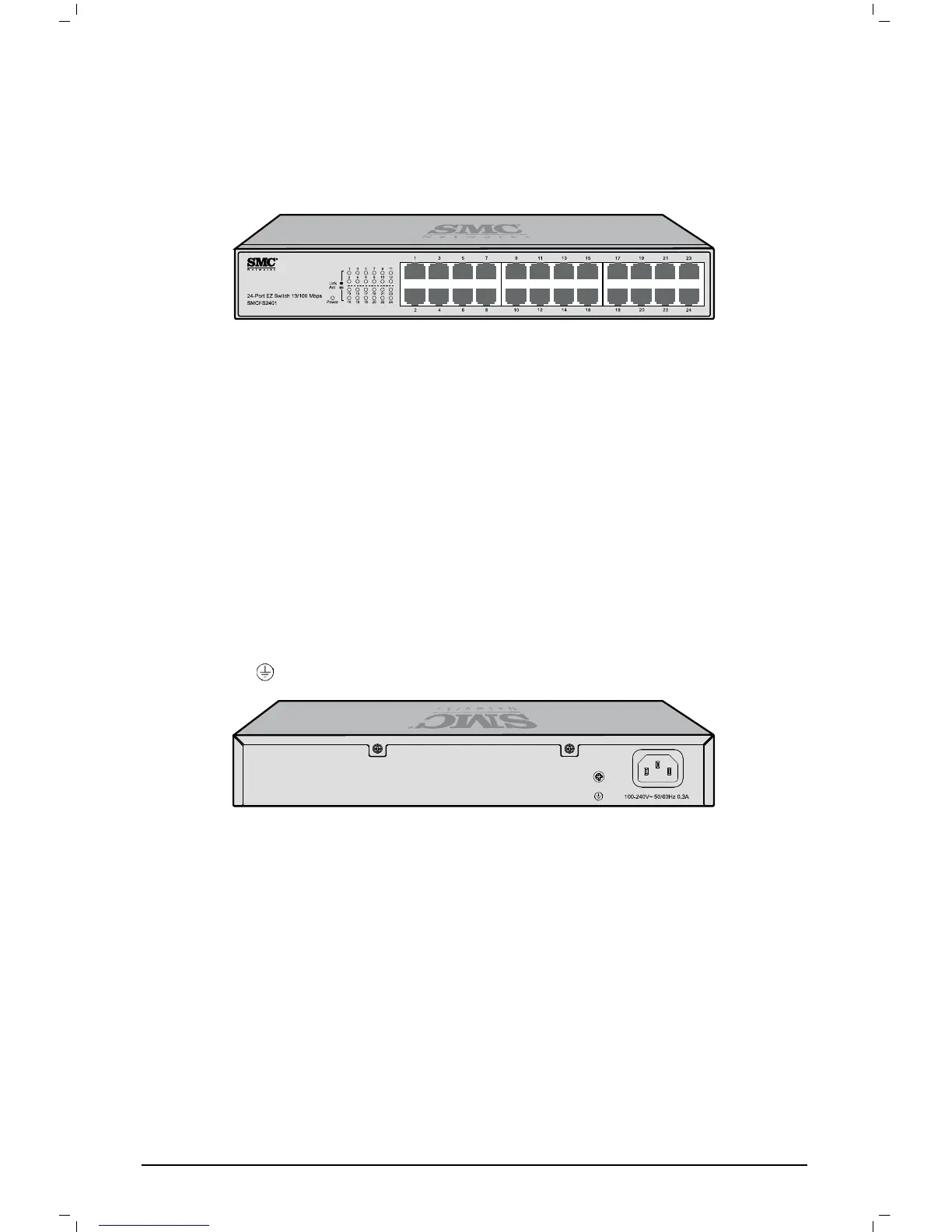

Figure 2-1 SMCFS2401 Switch Front Panel sketch
The LED indicators include Power, Link/Act LED indicators, which are used for
monitoring and pre-troubleshooting of the Switch. The following section shows the
LED indicators of the Switch along with an explanation of each indicator.
¾ Power LED: This indicator will light solid green when the Switch powers up.
If the LED is not lit, please check the power supply and connection.
¾ Link/Act LED: The LED indicates Link/Active status. The corresponding LED
indicator will light solid green when connected to a network device. It flashes
green when data is being transmitted or received on the working connection.
2.2 Rear Panel
The rear panel of SMCFS2401 features a power socket and a Grounding Terminal
(marked with ).
Figure 2-2 SMCFS2401 Switch Rear Panel sketch
¾ Grounding Terminal: SMCFS1601/SMCFS2401 already comes with Lightning
Protection Mechanism. You can also ground the Switch through the PE
(Protecting Earth) cable of AC cord or with Ground Cable. For detail
information, please refer to section 3.3 Connect to Ground.
¾ AC Power Socket: Connect the female connector of the power cord here, and
the male connector to the AC power outlet. Please make sure the voltage of
the power supply meets the requirement of the input voltage.
