Chapter 7 Appendix
7.3 Performance Chart
7-6
7.3 Performance Chart
The values shown on the performance chart are representative and not
guaranteed. Allow a margin for safety to decide use of the product.
7.3.1 Cooling Capacity

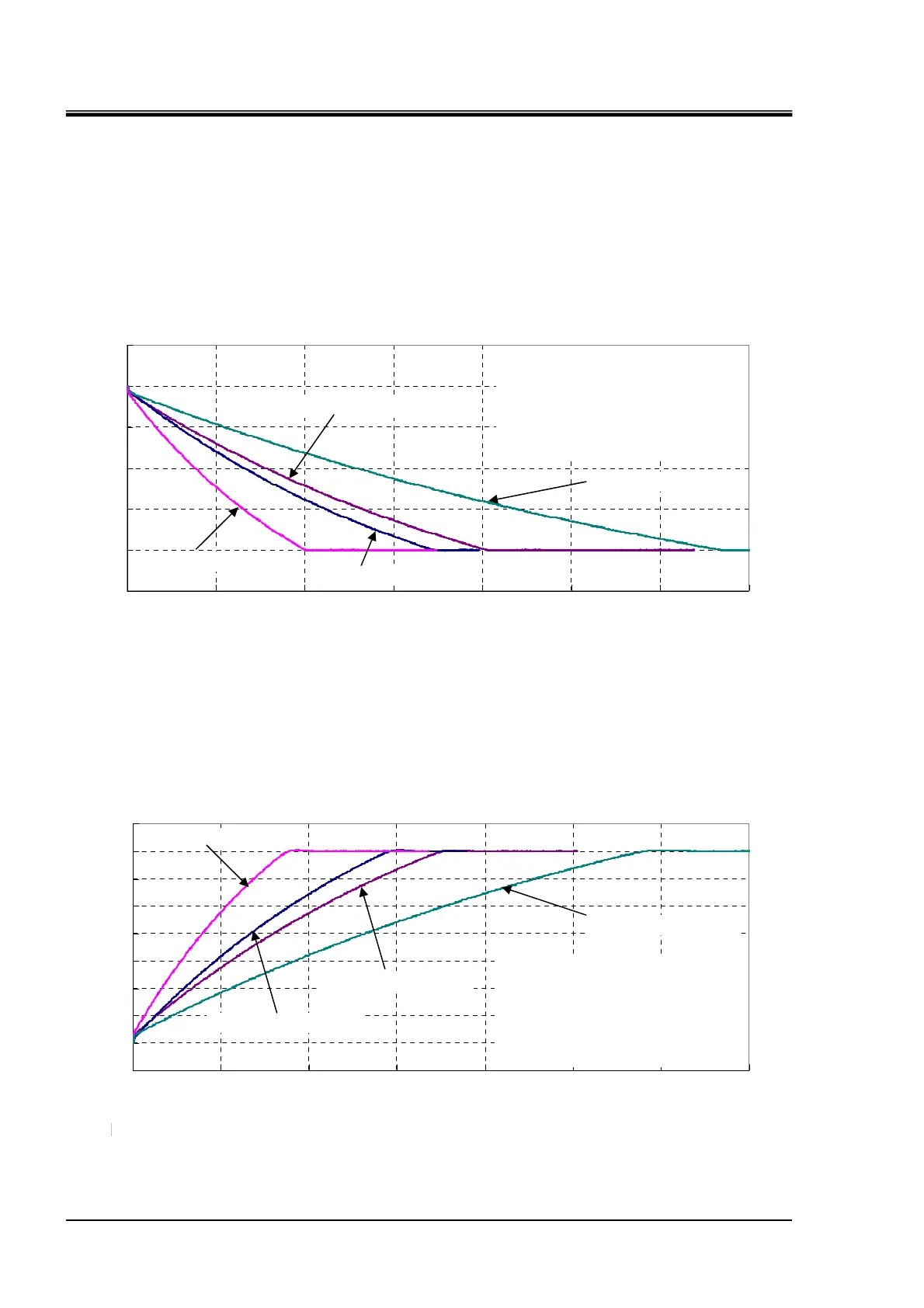

Fig. 7-4-1 Cooling capacity
7.3.2 Heating Capacity
Fig. 7-4-2 Heating capacity
0
5
10
15
20
25
30
0 30 60 90 120 150 180 210
Time(minutes)
Bathliquidtemperature(℃)
-
7
Ambienttemperture:25℃
Bathliquid:Water
Liquidmeasure:Max.liquidlevel
Facilitywater:25℃,3L/min
Shutoutfromoutsidewithalid
20
25
30
35
40
45
50
55
60
65
0 30 60 90 120 150 180 210
Time(minutes)
Bathliquidtemperature(℃)
-
Ambienttemperture:25℃
Bathliquid:Water
Liquidmeasure:Max.liquidlevel
Facilitywater:25℃,3L/min
Shutoutfromoutsidewithalid
INR-244-748/-749
INR-244-733/-745
INR-244-734/-746
INR-244-748/-749
INR-244-736/-747
INR-244-734/-746
INR-244-733/-745
