SMC Networks ZK2 A Series User Manual

-44-
No. ZK2-OM01301

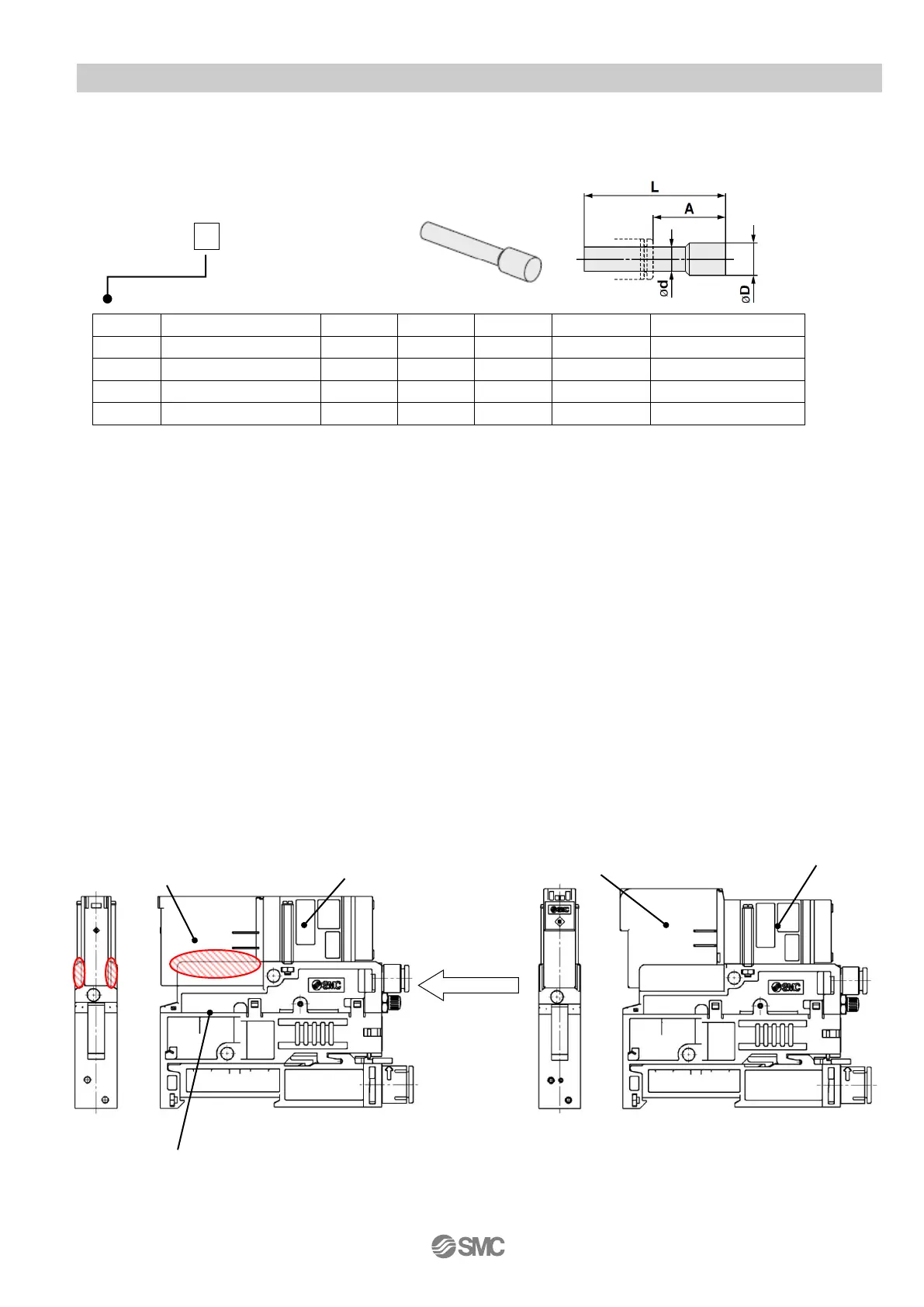

■Plug (For One-touch fitting)
(Purchasing order is available in units of 10 pieces.)
Mounted onto ports which are not used (PV, PS, PD, etc.)
KQ2P- 06
When existing product is used, please be careful with the interchangeability between existing product in the
table below and ZK2□A.
〇Single unit
New valve assembly of ZK2□A cannot be assembled with the existing products.
(Pilot valve dimension and valve body dimension are different)
Model and Dimensions
Symbol
Applicable size ød
A
L
øD
Weight (g)
Note
06
ø6
18
35
8
1
White
08
ø8
20.5
39
10
2
White
07
ø1/4”
18
35
8.5
1
Orange
09
ø5/16”
20.5
39
10
2
Orange
There are
interference
parts within
shaded area
×
Existing product
ZK2□A
Grey
Blue
Valve assembly
New valve assembly
Valve body
