〇 Manifold of 1 or 2 stations.
A single unit ZK2□A for manifold cannot be assembled with the existing manifold.
（Pilot valve dimension and end plate dimension are different)
〇Replacement of the check valve
The ZK2□A body gasket (integrated with the check valve) cannot be mounted to the existing product.
The check valve and the body gasket are separate parts for the conventional product, but ZK2□A is not
interchangeable because it is integrated.
End plate
End plate
×
×

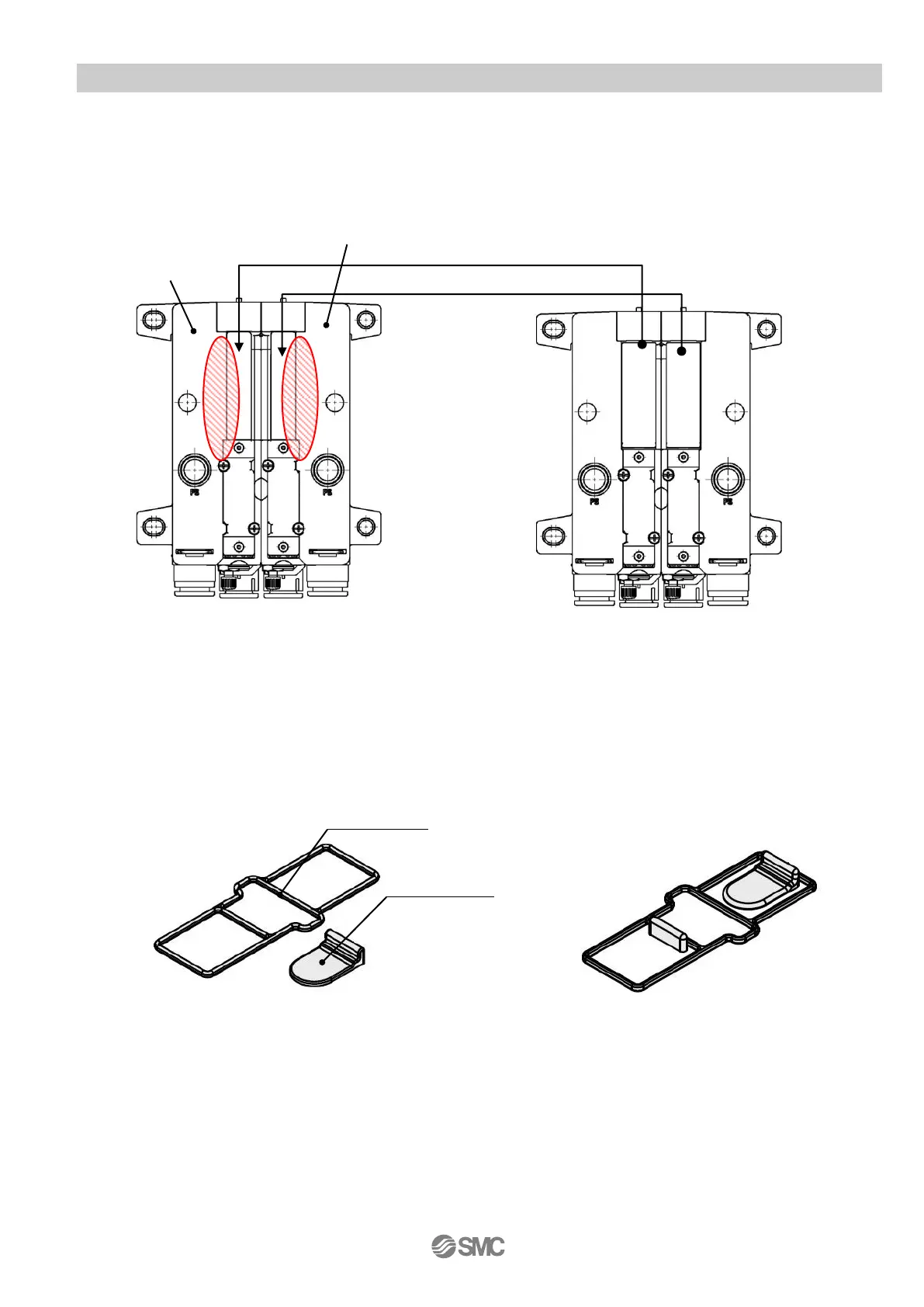

Existing Manifold
ZK2□A Manifold
Body gasket
Check valve
Current product Body gasket and check valve
ZK2□A Body gasket
There are
interference
parts within
shaded area
