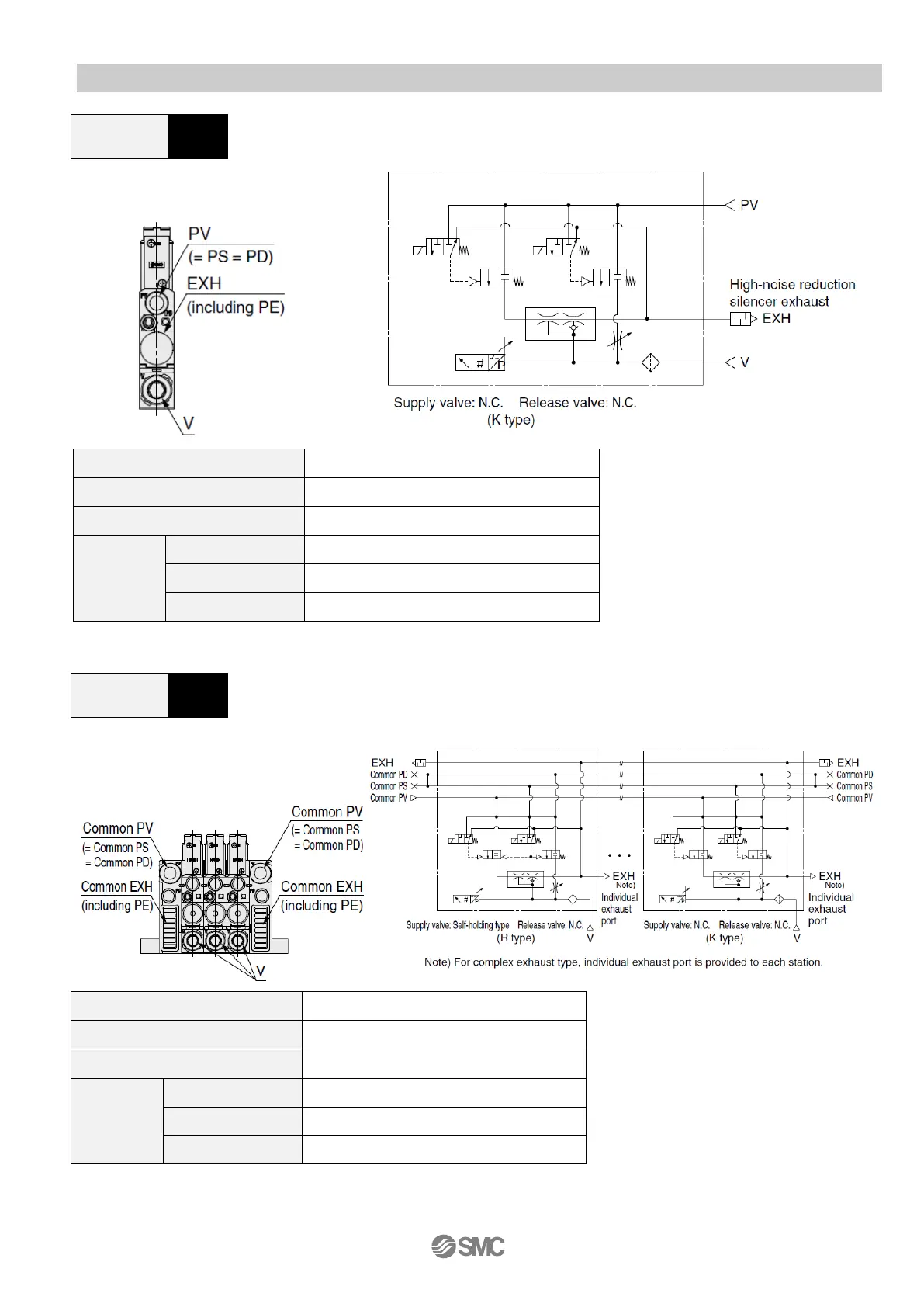

Single unit: ZK2G□□□□□A-□
Single unit: ZK2C□□□□□□A-□
Manifold: ZZK2□□A-A1□
Port
Layout No.
5
Port
Layout No.
6
Port combination: PV = PS = PD
System
Ejector
Body type
Single unit
Exhaust type
High-noise reduction silencer exhaust
Application
and
purpose
Vacuum pressure
-
Exhaust
Released in operating environment
Release pressure
Same pressure as PV
System
Ejector
Body type
Manifold
Exhaust type
Complex exhaust
Application
and
purpose
Vacuum pressure
Common for each station
Exhaust
Released in operating environment
Release pressure
Same pressure as common PV
Port combination: Common PV = Common PS = Common PD
