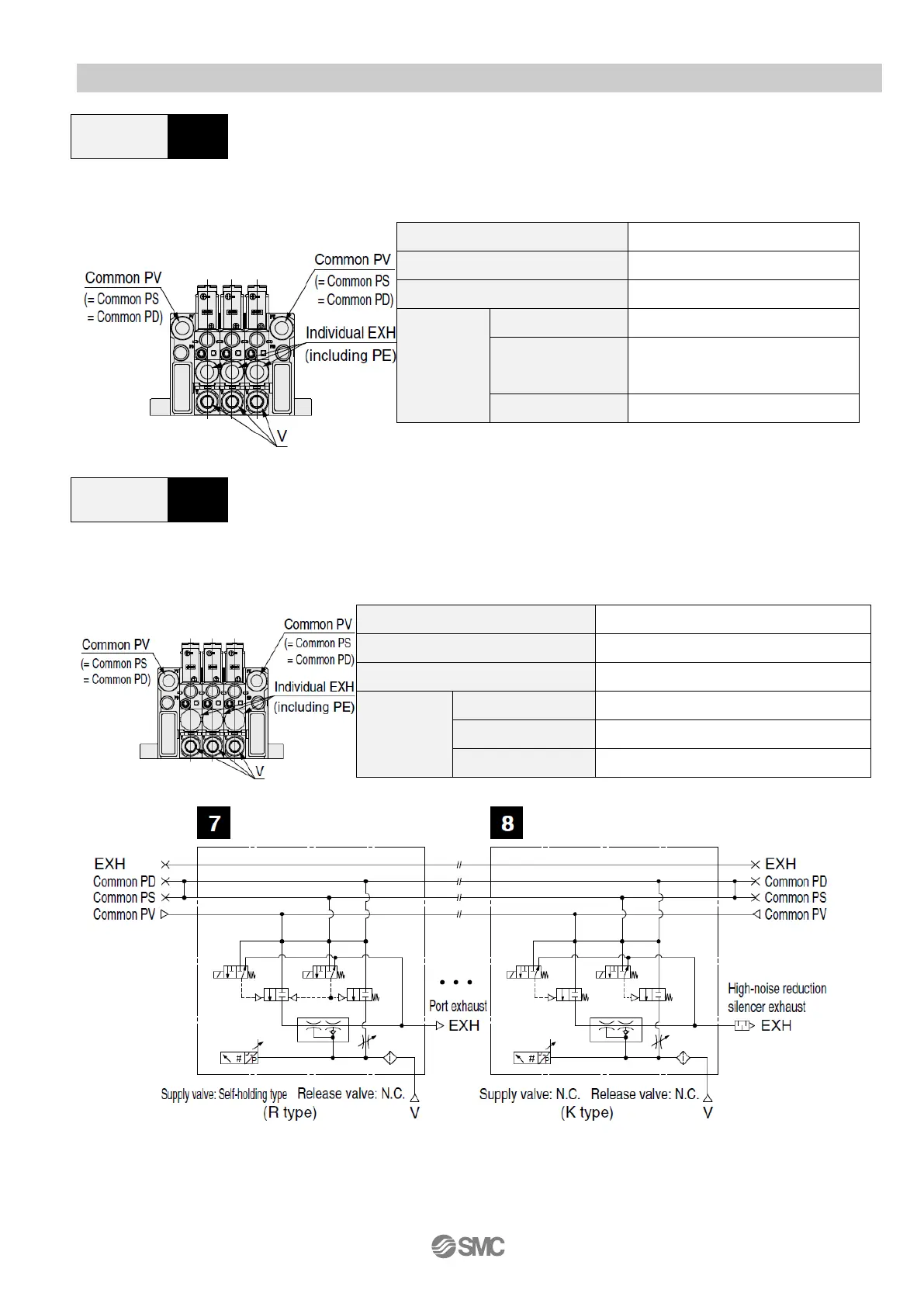

SMC Networks ZK2 A Series User Manual

-63-
No. ZK2-OM01301
Single unit: ZK2F□□□□□A-□
Manifold: ZZK2□□A-A2□
Single unit: ZK2H□□□□□A-□
Manifold: ZZK2□□A-A2□
Port
Layout No.
7
Port
Layout No.
8
System
Ejector
Body type
Manifold
Exhaust type
Individual port exhaust
Application
and
purpose
Vacuum pressure
Common for each station
Exhaust
After piping, individual exhaust
is necessary.
Release pressure
Same pressure as common PV
System
Ejector
Body type
Manifold
Exhaust type
High-noise reduction silencer exhaust
Application
and
purpose
Vacuum pressure
Common for each station
Exhaust
Released in operating environment
Release pressure
Same pressure as common PV
Port combination: Common PV = Common PS = Common PD
Port combination: Common PV = Common PS = Common PD
