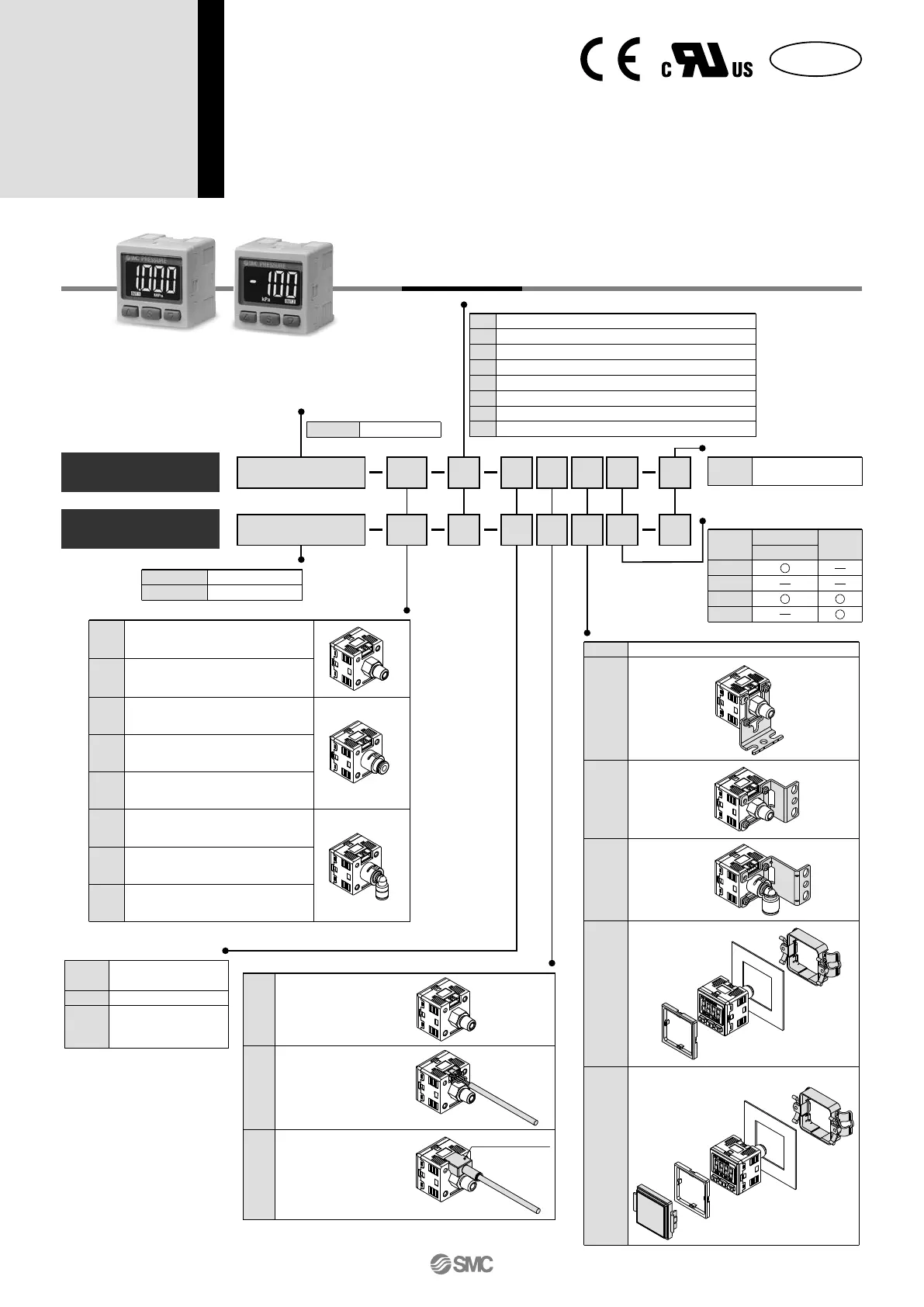

How to Order
2-Color Display
High-Precision
Digital Pressure Switch
Series ZSE30A
(
F
)
/ISE30A
For vacuum/
compound pressure
ISE30A
For positive
pressure
01 N M
ZSE30A 01 N M
Rated pressure range
ISE30A
–0.1 to 1 MPa
Output
NPN open collector 1 output
PNP open collector 1 output
NPN open collector 2 outputs
PNP open collector 2 outputs
NPN open collector 1 output +
Analog voltage output
NPN open collector 1 output +
Analog current output
PNP open collector 1 output +
Analog voltage output
PNP open collector 1 output +
Analog current output
N
P
A
B
C∗
D∗
E∗
F∗
Rated pressure range
ZSE30A
ZSE30AF
0 to –101 kPa
–100 to 100 kPa
Option 1
Without lead wire
Lead wire with connector
(Lead wire length 2 m)
Note)
L
Lead wire with connector
(Lead wire length 2 m)
Note)
With connector cover
G
Nil
Note) For output types N and P, the number of core of lead wires will
be 3, and for other types, it will be 4.
With unit display
Note 1)
switching function
Fixed SI unit
Note 2)
With unit display
Note 1)
switching function
(Initial value psi)
Nil
P∗
M
Display unit
Note 1) Under the New Measure-
ment Law, sales of switches
with the unit switching func-
tion have not been allowed
for use in Japan.
Note 2) Fixed unit kPa, MPa
Piping
R1/8 (M5 female threaded)
NPT1/8 (M5 female threaded)
One-touch fitting ø4 mm, ø5/32 inch
One-touch fitting ø6 mm
One-touch fitting ø1/4 inch
One-touch fitting ø4 mm, ø5/32 inch
One-touch fitting ø6 mm
One-touch fitting ø1/4 inch
01
N01
C4H
C6H
N7H
C4L
C6L
N7L
Straight type
Elbow type
∗ Made to Order
∗ Made to Order
∗ Made to Order
∗
®
RoHS
Option 3
Symbol
Calibration
certificate
Nil
Y
K
T
Operating manual
Booklet
Option 2
None
Bracket A
A1
Bracket B
A2
Bracket C
A3
Panel mount adapter
B
Panel mount adapter + Front protection cover
D
Nil
Made to Order (P.12)
X510
For M12 4-pin
pre-wired connector
Available only for output “A” or “B”.
Connector cover
1
