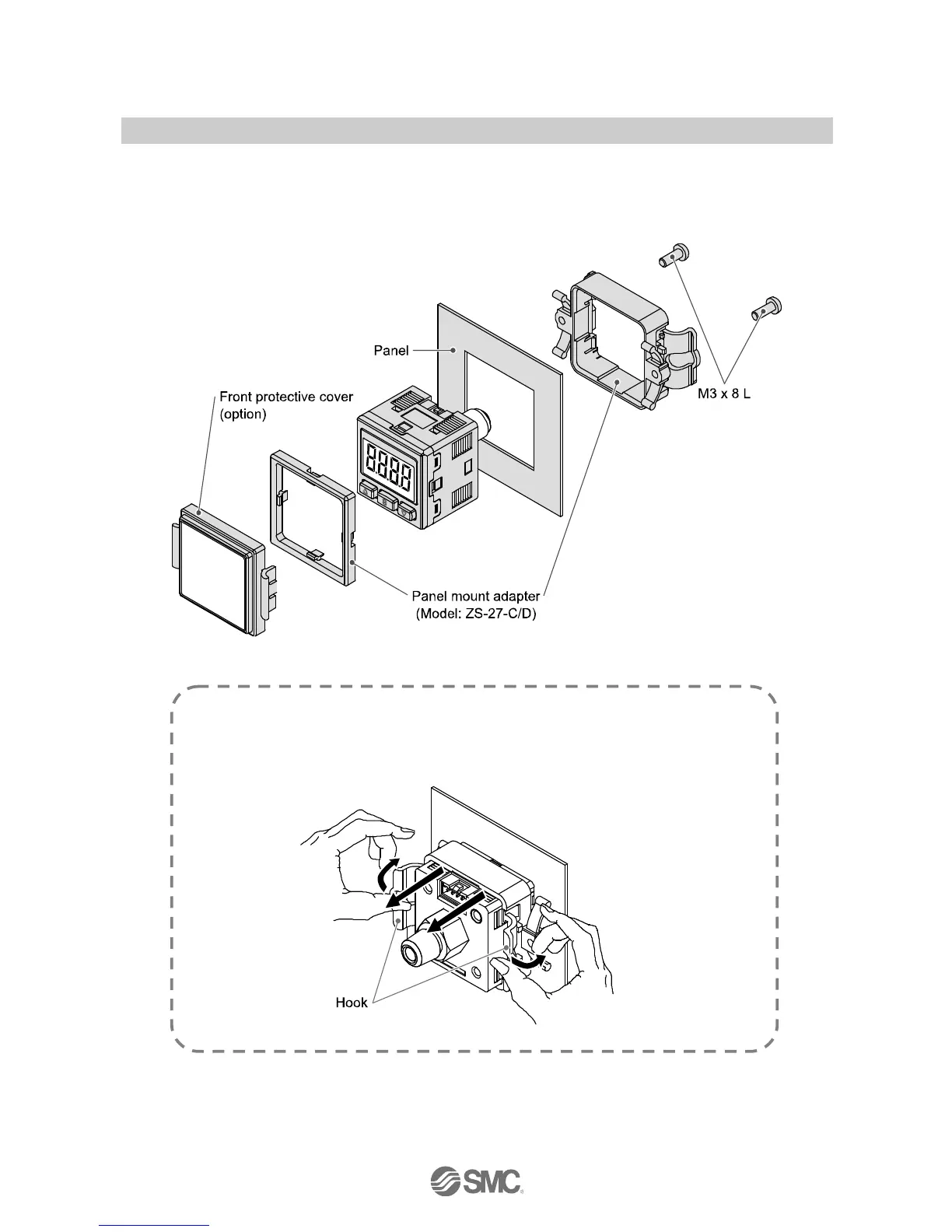

○Mounting with panel mount adapter
Fix the panel mount adapter to the Pressure switch with the set screws M3×8L (2 pcs.) supplied.
Panel mount adapter (Model: ZS-27-C)
Panel mount adapter + Front protective cover (Model: ZS-27-D)
: The panel mount adapter can be rotated by 90 degrees for mounting.
Note when removing the switch
The Pressure switch with panel mount adapter can be removed from the installation
by removing 2 screws and releasing the hooks at the sides, as illustrated.
Take care not to damage the Pressure switch and panel mount adapter.
