SMC Networks ZSE30AF-#-#-X576 User Manual

-18-
No.PS※※-OMV1001

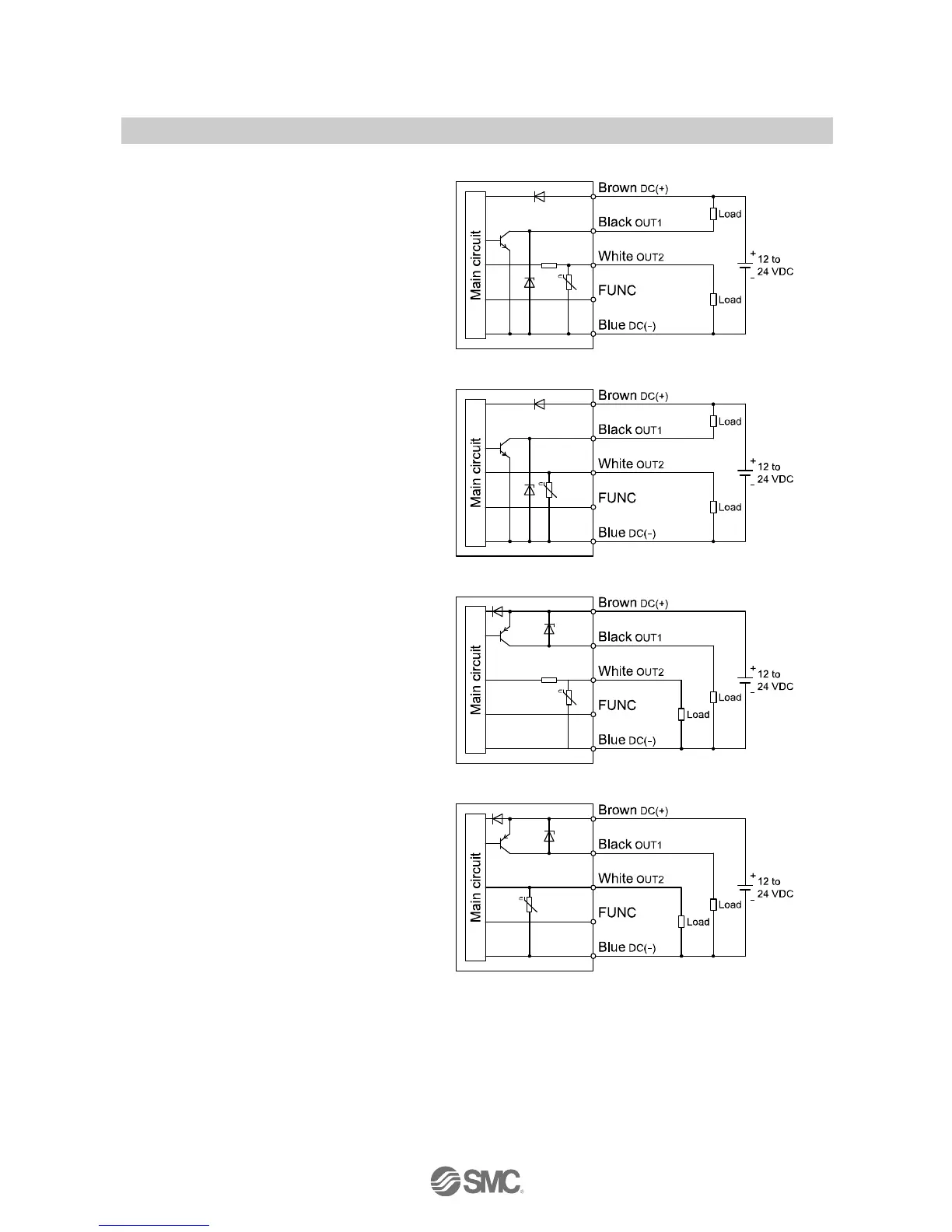

-C
NPN open collector 1 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
Analogue voltage output
Output impedance approx. 1 k
-D
NPN open collector 1 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
Analogue current output
Max. load impedance
300  at 12 V power supply voltage
600  at 24 V power supply voltage
Min. load impedance 50 
-E
PNP open collector 1 output
Max. 80 mA
Residual voltage 1 V or less
Analogue voltage output
Output impedance approx. 1 k
-F
PNP open collector 1 output
Max. 80 mA
Residual voltage 1 V or less
Analogue current output
Max. load impedance
300  at 12 V power supply voltage
600  at 24 V power supply voltage
Min. load impedance 50 
