SMC Networks ZSE30AF-#-#-X576 User Manual

-60-
No.PS※※-OMV1001
Model No.
X576
X577
X578
X579
X580
Environ
ment
Enclosure
IP40
Ambient temperature range
Operation: 0 to 50 C, Storage: -10 to 60 C (no condensation or freezing)
Ambient humidity range
Operation, Storage: 35 to 85%RH (no condensation)
Withstand voltage
1000 VAC, 1 minute between terminals and housing
Insulation resistance
50 M or more at 500 VDC between terminals and housing
Temperature characteristics
±3%F.S. (25 C reference)
Lead wire
Oil resistant vinyl cabtyre cable
3 cores 3.5, 2 m
4 cores Sectional area of conductor: 0.15 mm
2
(AWG26)
Outside diameter of insulator: 1.0 mm

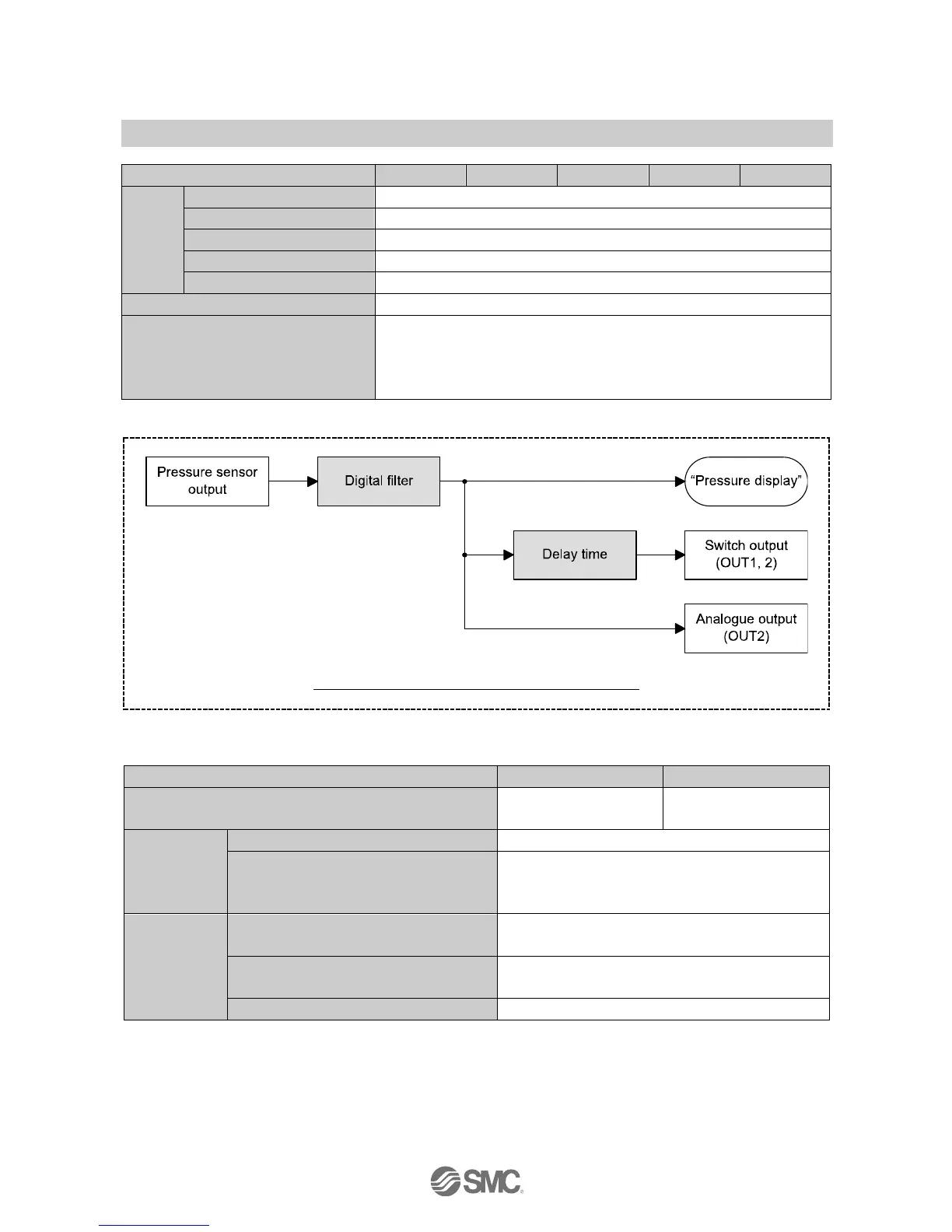

Fig.: Relation between the filter and response time
○Piping specifications
Model No.
01
N01
Port size
R1/8
M5 x 0.8
NPT1/8
M5 x 0.8
Material of
wetted parts
Pressure sensing part
Silicone
Piping port
C3602
(electroless nickel plating)
O-ring: HNBR
Weight
With lead wire and connector attached
(3-core, 2 m)
81 g
With lead wire and connector attached
(4-core, 2 m)
85 g
Without lead wire and connector
43 g
