Smeg C6GMX - 15.2 Burner and Nozzle Specifications; 15.3 Hob Burner Arrangement

Instructions for the Installer
40

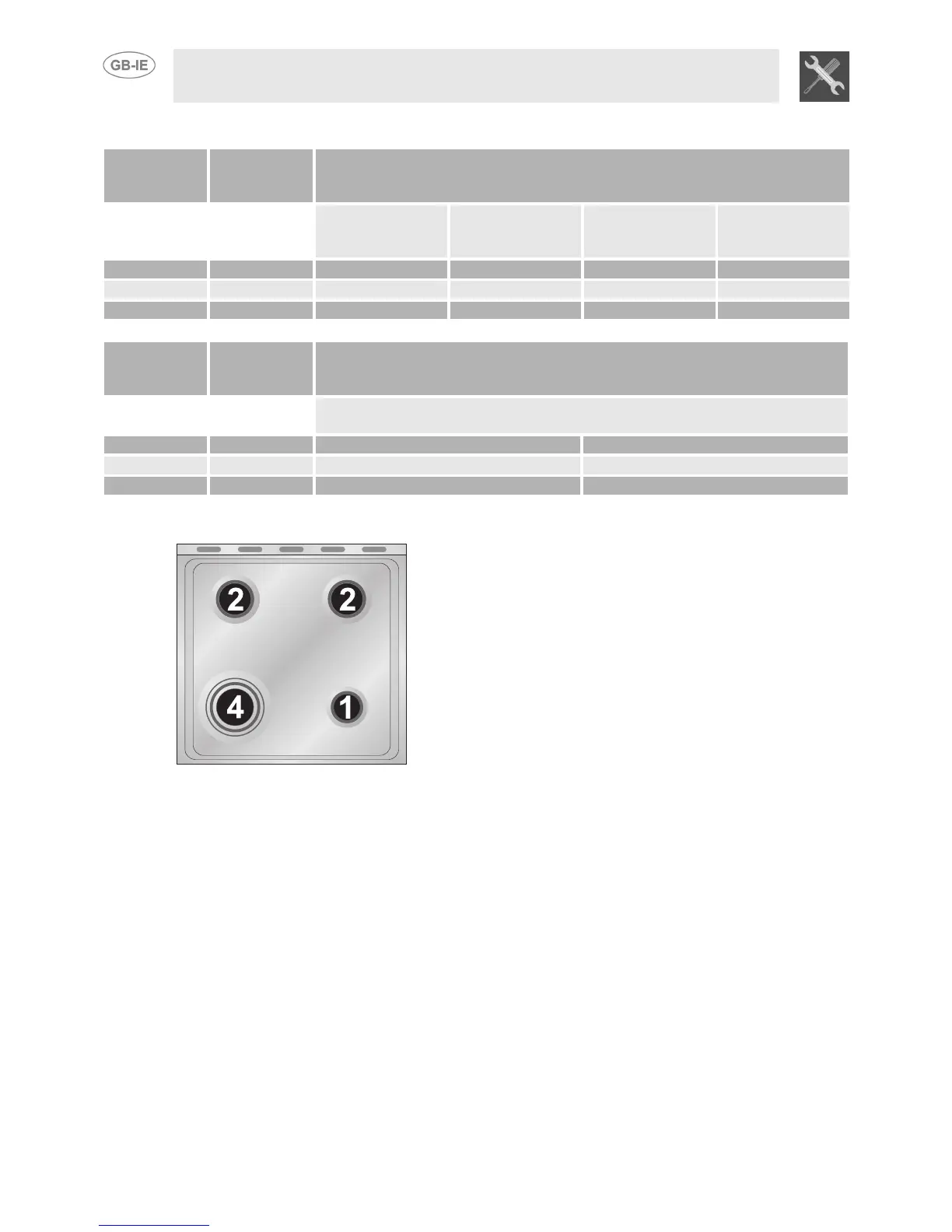

15.2 Burner and nozzle characteristics table
Burner
Rated heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliaire 1.05 50 400 76 75
Semi rapid 1.8 65 500 127 125
Triple crown 3.9 100 1600 284 279
Burner
Rated heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Auxiliaire 1.05 72 (X) 400
Semi rapid 1.8 97 (Z) 500
Triple crown 3.9 135 (K) 1600
15.3 Arrangement of the burners on the hob
BURNERS
1. Auxiliary
2. Semi rapid
4. Triple crown
ø min e max (in cm.)
12 - 14
16 - 24
18 - 26
