Instructions for the user

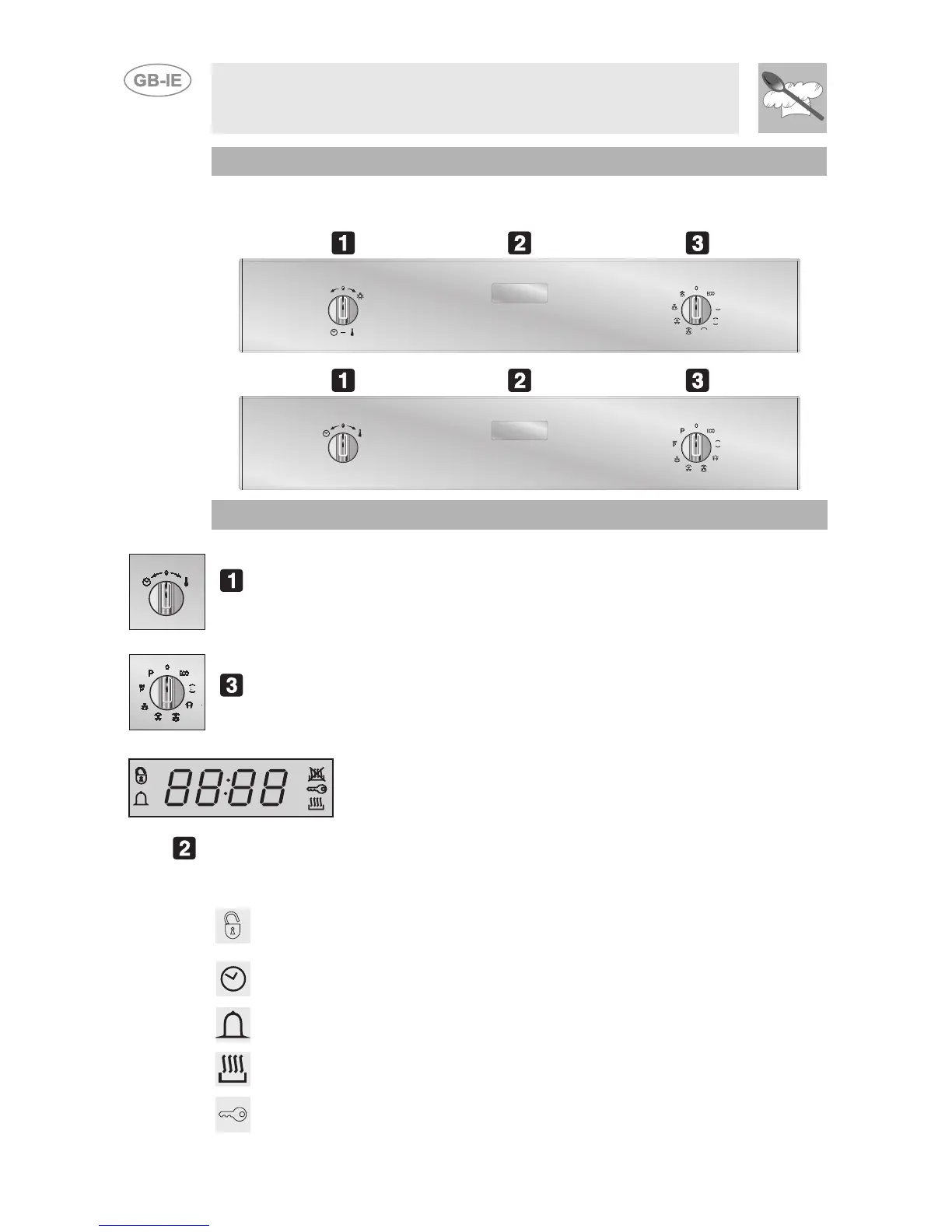

7.3 Description of the controls on the front panel
All the appliance's control and monitoring devices are placed together on the
front panel. The symbols used are described in the table below.
MULTIFUNCTIONPYROLYTIC
FUNCTIONS AND SYMBOLS SHOWN:
PT1
Thermostat
Timer
Knob
Allows to set the time, select the cooking
temperature and duration and program the
cooking start and end times. On some models it
allows to turn on and off the oven lamp.
PT2
ON-OFF
Functions
Knob
Allows to switch the oven on and to select a
cooking or cleaning (where present) function.
DSP
Display
current
time
programmed cooking
procedures
This display shows the current time, or the
cooking duration or the temperature.
The following symbols coming on indicate:
Door interlock indicator
light
(on pyrolytic models only)
:
Comes on when the cleaning cycle is used, to
indicate the door has been locked.
Clock
(on multifunction models only)
:
Adjusting the cooking time
(displayed during adjustments)
Bell:
Minute minder activated.
Cooking duration:
Setting the cooking time.
Commands locking:
Commands locking mode on.
