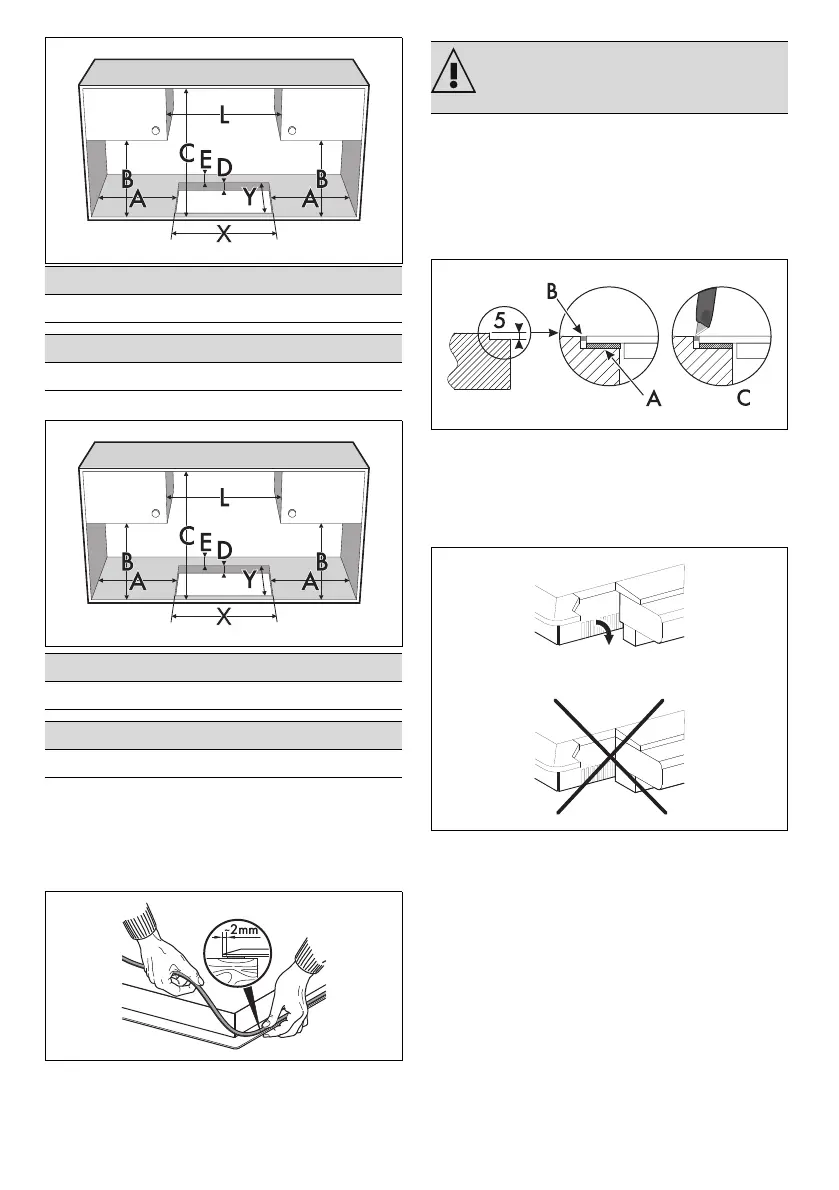

Standard mounting (mm)
Hob seal
To prevent leakage of liquid between the frame
of the hob and the countertop, place the
adhesive seal provided along the entire outer
edge of the hob before assembly.
In the case of flush mounting, after placing the
adhesive seal (A) on the glass surface and after
positioning and securing the hob, fill the edges
with insulating silicone (B) and wipe off any
excess. If for any reason the hob needs to be
removed, cut the silicone using a cutter before
attempting to remove it (C).
Ventilation
The illustrations below show two examples of
installation suitable for proper ventilation and
one example of incorrect installation to be
avoided.
Fastening to the built-in cabinet
It has to be secured to the cabinet using front
and back screws:
A B C D E
min 150 min 460 min 750 30 - 50 min 50
L X Y G H
600-700 596 510 604 514
A B C D E
min 150 min 460 min 750 30 - 50 min 50
L X Y
600-700 560 482
Do not use silicone to secure the hob.
This would make it impossible to remove
the hob without damaging it.
