Installation
68
Table of power draws
5.4 Safety instructions
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the mounting
illustrations.

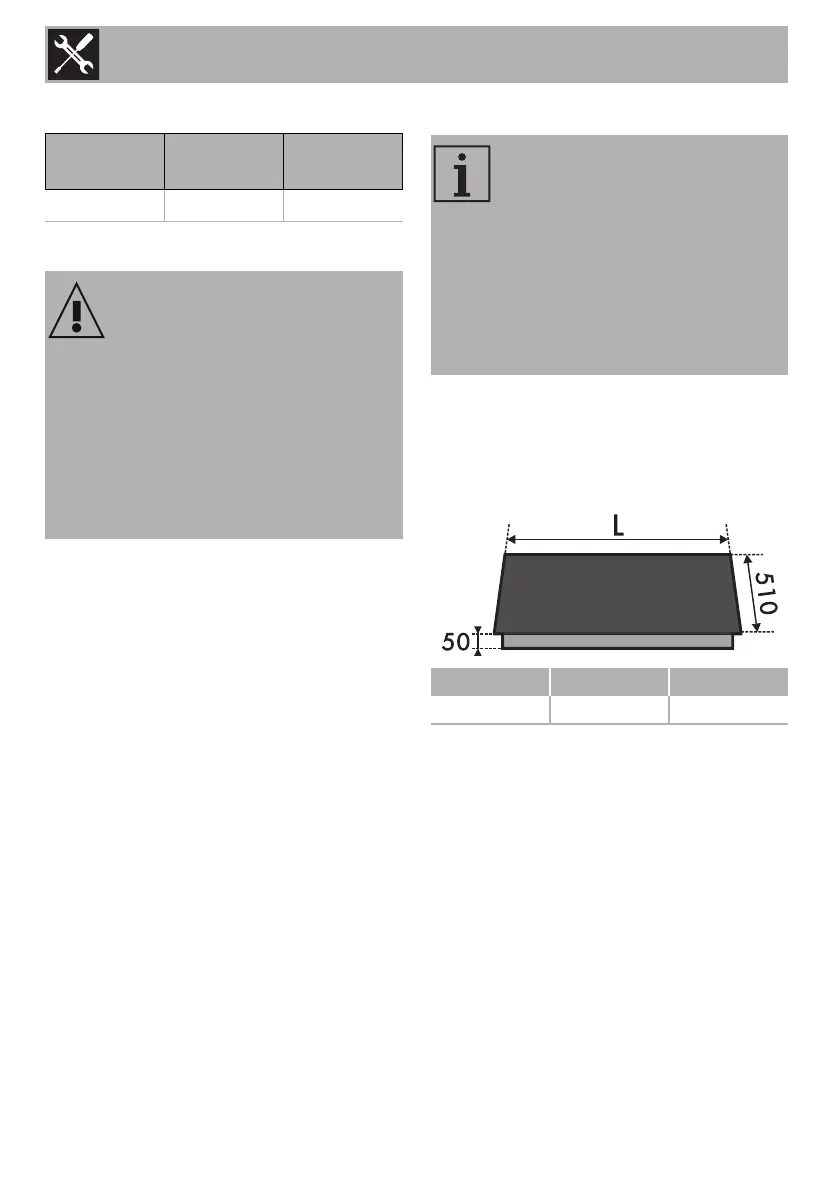

5.5 Section cut from the countertop
Make a hole in the countertop of the unit
according to the dimensions shown in the
figure (mm).
Dimensions for flush mounting
Model
Minimum
power (kW)
Maximum
power (kW)
90 cm 2.4 11.1
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not obstruct the ventilation grille in
front of the product during mounting.
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
L X Y
900 860 490
