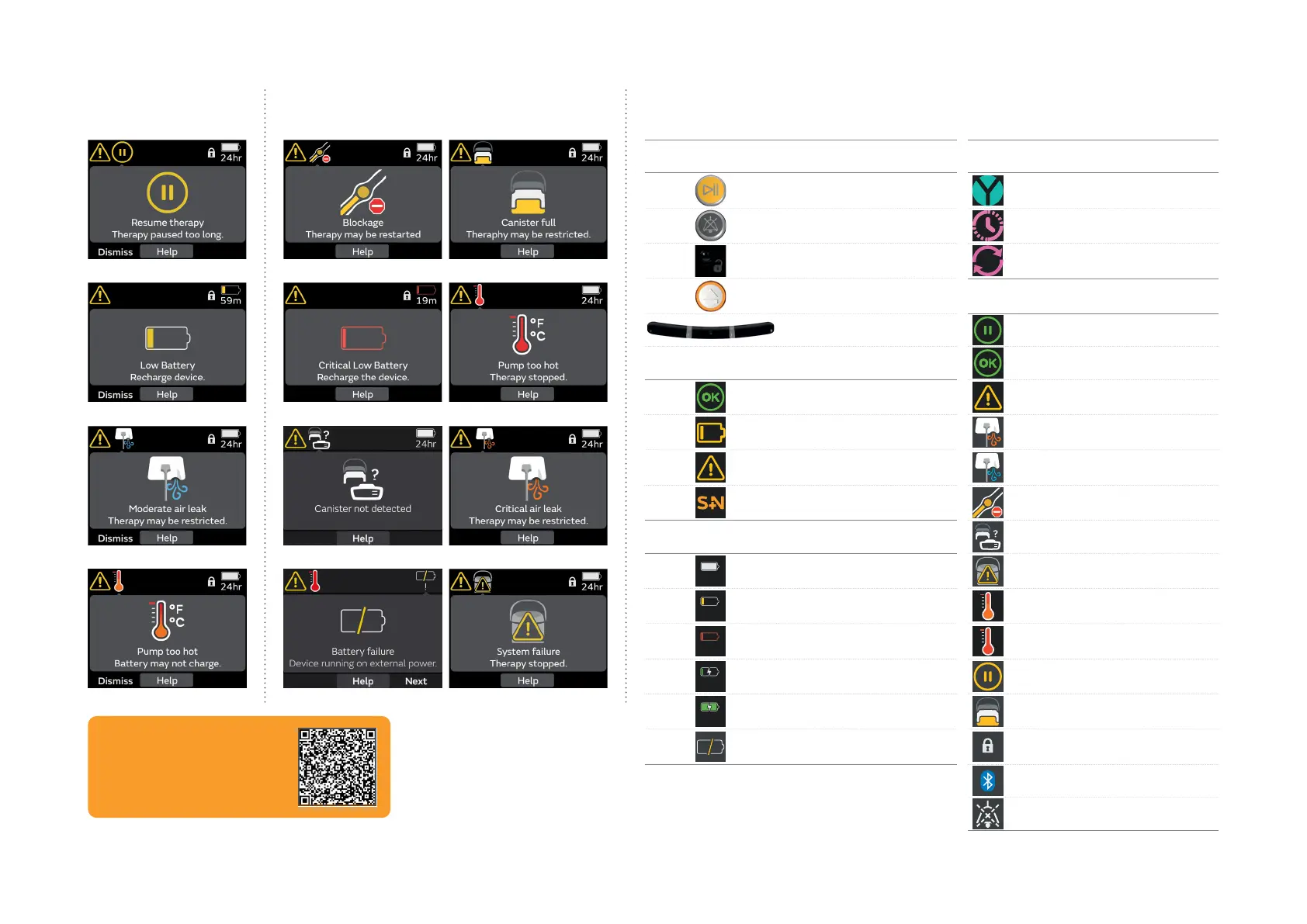

Icons and symbol glossary
Pump buttons
Therapy screen icons
Play/Pause Y-Connector Mode
Mute Intermitent Mode
Canister Release Continuous Mode
Recessed Lock/Unlock
Status bar icons
Three Multifunction Paused
Pump lights
System OK
System OK Alarm/Alert
Battery Warning Critical Air Leak
Alarm/Alert Moderate Air Leak
External Power Indicator Blockage
Battery icons
Canister Missing
24hr
Full Charge System Failure/High Vacuum
1hr
Low Pump Too Hot Alert
30m
Critical Low Pump Too Hot Alarm
10%
Charging Paused Too Long
100%
Full Charged Canister Full
Battery Failure Locked
Bluetooth On
Muted
Alerts
Therapy paused too long
Low battery
Moderate air leak
Pump too hot for charging
Alarms
Blockage
Critical low battery
Canister missing
Battery failure
Canister full
Pump too hot
Critical air leak
High vacuum/System failure
Looking for more information?
Scar the QR code for:
• Customer Care contacts
• Troubleshootings videos
• Basic Operation videos
