Smiths detection HI-SCAN 6040i User Manual

How to calibrate* the HI-SCAN X-ray unit
 Set the conveyor to reverse run by means of the first menu function Position conveyor in order to clear the
tunnel from all items.
On all unit types without lateral cabinet and on dual view units*, if the main monitor shows the bag-
gage and freight items in the scanning view from the top (F 2-33):
 Reverse the conveyor until the conveyor belt joint or the zipper has reached the position just under-
neath the lead curtain at the tunnel exit.

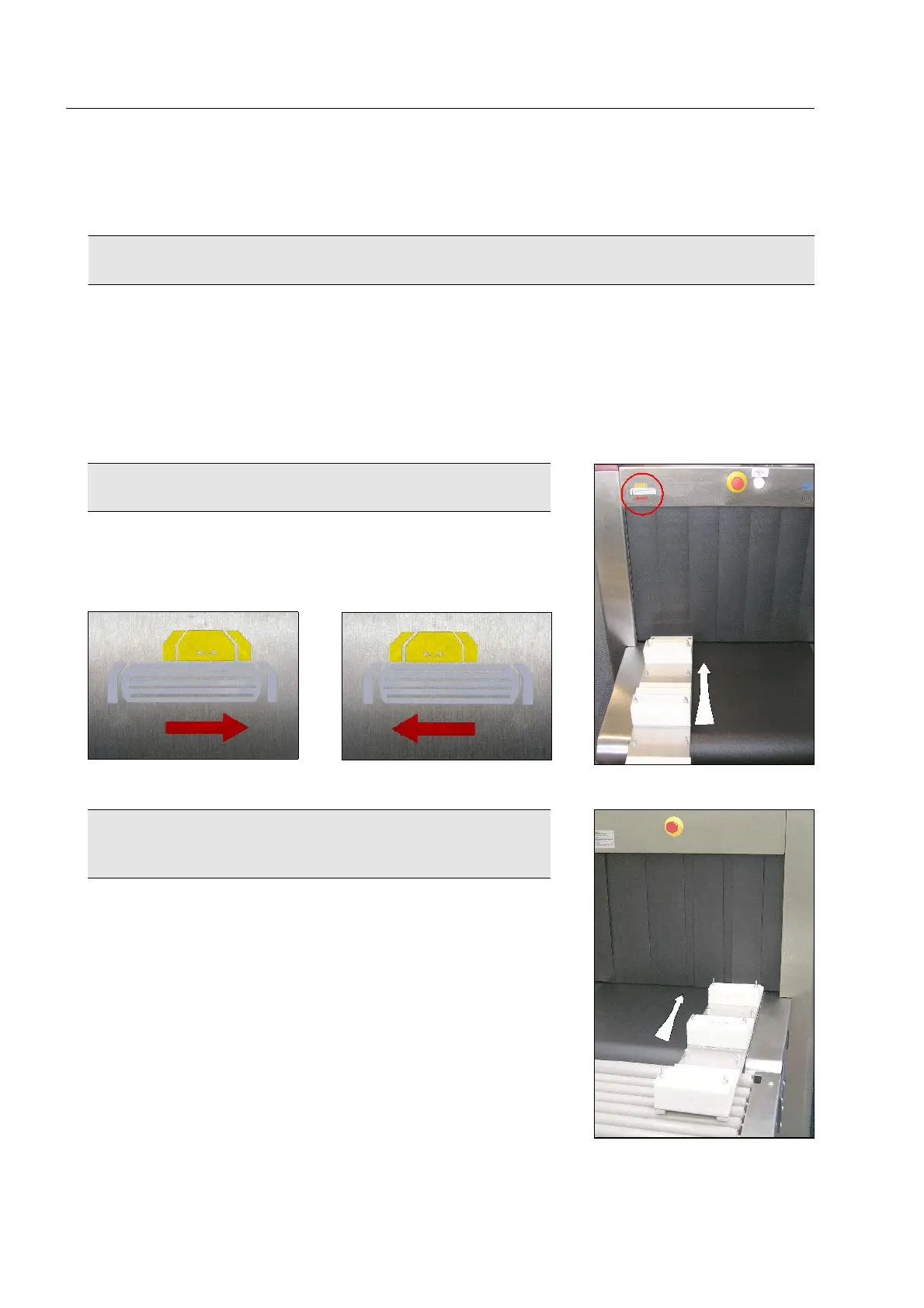

 Now place the calibration body 1 (step wedge) in front of the lead curtain at the input side on the con-
veyor, as illustrated. The pointed end of the body is always to be directed towards the inspection tunnel.
All unit types without side cabinet carrying the illustrated labels
above the tunnel entrances:
The right or left side of the body must be in line with the edge of the
conveyor belt above which the label is situated. Depending on the
unit's layout, this can be the left or right side.
All unit types without side cabinet, not carrying any of the illus-
trated labels above the tunnel entrances (except HI-SCAN 6030di,
13090 and 130100):
The right side of the body - viewed in conveying direction - must be in
line with the right edge of the conveyor belt.
95587413 01/01/09 © Smiths Heimann
2-84

Smiths detection HI-SCAN 6040i Specifications

General

Conveyor Speed	0.2 m/s
X-ray Generator Anode Voltage	160 kV
Weight	Approx. 400 kg
Type	X-ray scanner
Application	Baggage and cargo inspection
Technology	Dual energy X-ray
X-ray Generator Direction	Downwards
Image Processing	Real-time image processing
Power Requirements	220-240 V, 50/60 Hz
Power Supply	230 VAC ±10% / 50 Hz - 60 Hz
Film Safety	Guaranteed up to ISO 1600 (33 DIN)
External Dimensions	Approx. 2000 mm (L) x 1000 mm (W) x 1400 mm (H)
Max. Conveyor Load	160 kg (353 lbs) evenly distributed
