Installation Manual

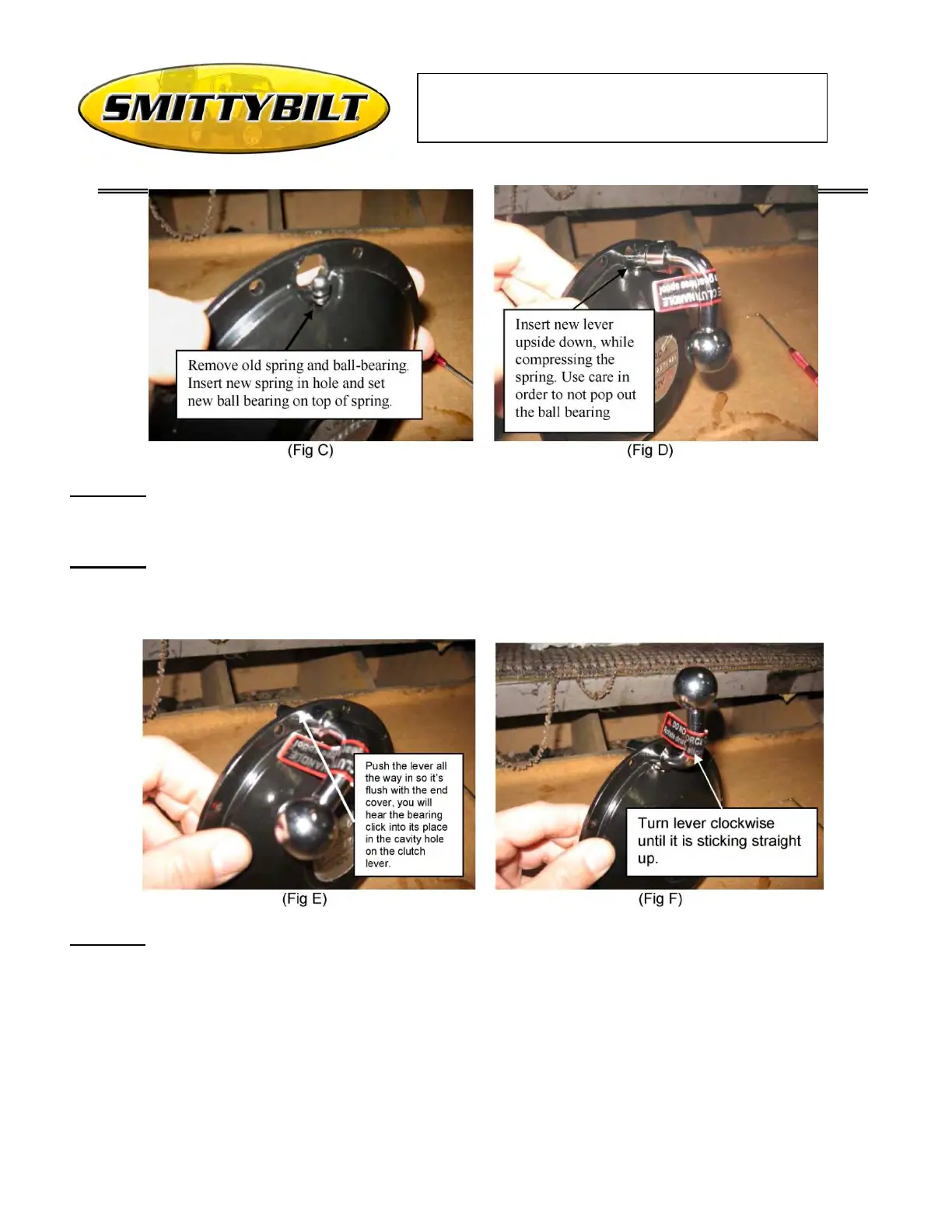

Step 4: Insert new handle upside down through hole in end cap while compressing down the spring
and ball bearing. Use care when doing so the ball bearing does not pop out. (Fig D)
Step 5: Push the lever all the way in so it’s flush with the end cover, you will hear the bearing click
into its place in the cavity hole on the clutch lever. Then turn lever clockwise until it is
sticking straight up. (Fig E, F)
Step 6: Now insert new holding pin/rod through hole in clutch lever on the inside of the cap. Push it
down all the way until it is flush with the top of the lever. (Fig G,H)
