15
EEWB331B
4.3.2 SAPE ARM POSITIONS FOR ALU
WEIGHTS PLACEMENT

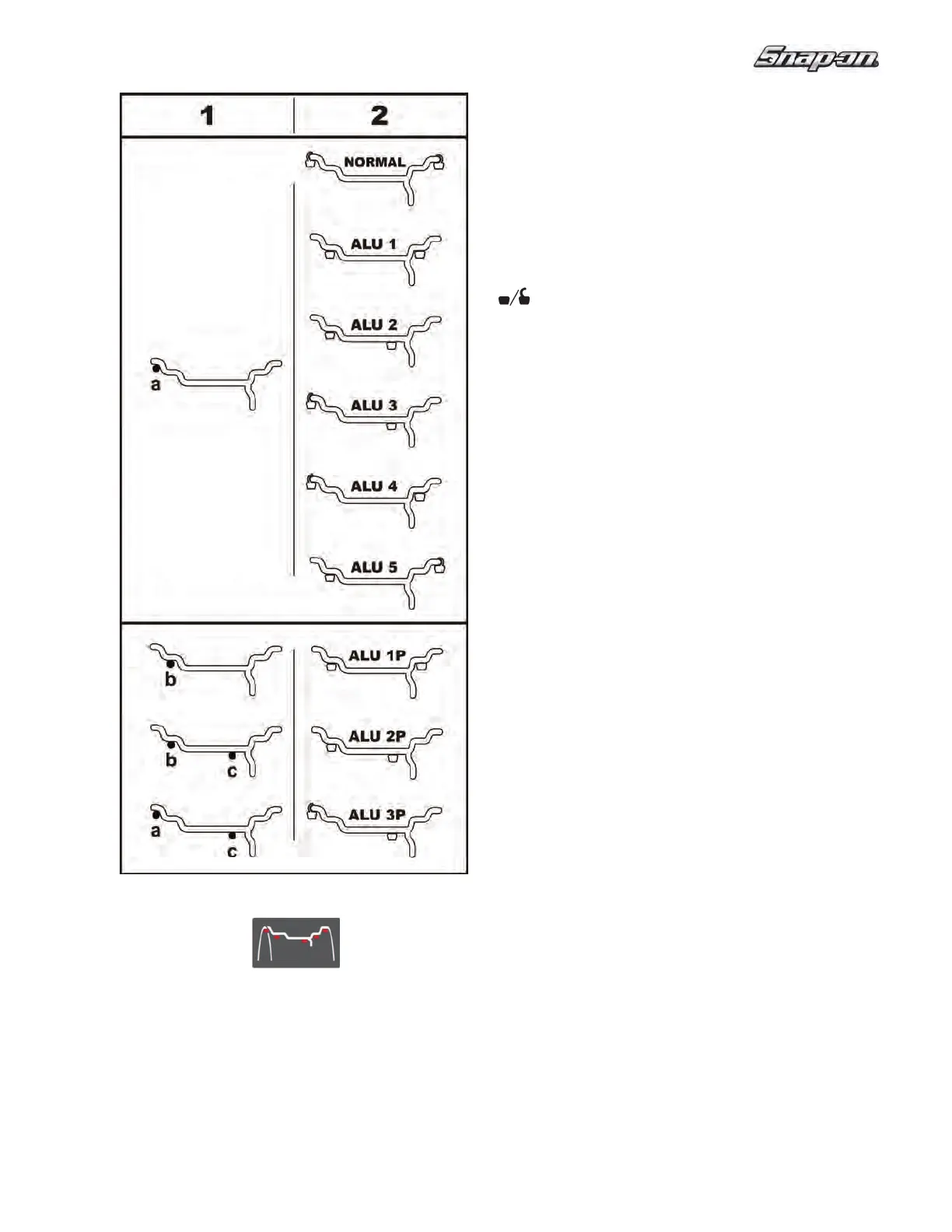

Fig. 22 shows the corrected reading positions of the SAPE
arm (1), and the corresponding weight placement locations
(2); for both adhesive weights and clip-on weights.
Weight Placement illuminated indicators indicate the
weights placement positions on the rim.
— = SAPE arm application point (1).
= weight placement location (2).
Normal Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. This
mode requires the use of clip-on weights.
Alu 1 Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. Press
the Alu key (9) once. This mode requires tape
(or adhesive) weights.
Alu 2 Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. Press
the Alu key (9) twice. This mode requires tape
(or adhesive) weights.
Alu 3 Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. Press
the Alu key (9) three times. This mode requires
tape (or adhesive) weights
.
Alu 4
Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. Press
on the Alu key (9) six times. This mode requires
tape (or adhesive) weights.
Alu 5
Touch the SAPE arm to the rim fl ange (a).
Manually input the rim width dimension. Press
on the Alu key (9) seven times. This mode
requires tape (or adhesive) weights.
Alu 1P Touch the SAPE arm to the rim fl ange (b). Press
the weight placement key (9) once.
Manually input the rim width dimension.
- Use the SAPE arm to apply adhesive weights
to the inside of the rim, and manually place the
weights on the outside of the rim.
Note: Make sure all entries are completed prior to
balancing spin.
Alu 2P Touch the SAPE arm to locations (b-c).
- Use the SAPE arm to place the weights in both
locations. The machine will beep during weight
placement when the exact location is achieved.
Alu 3P Touch the SAPE arm to locations (a-c).
- Use the SAPE arm to place the adhesive
weight in location (c). The machine will beep
during weight placement when the exact
location is achieved. The inside weight is
placed as a standard clip-on style weight.
9
Figure 22
