4.2 Mounting tubeless tires

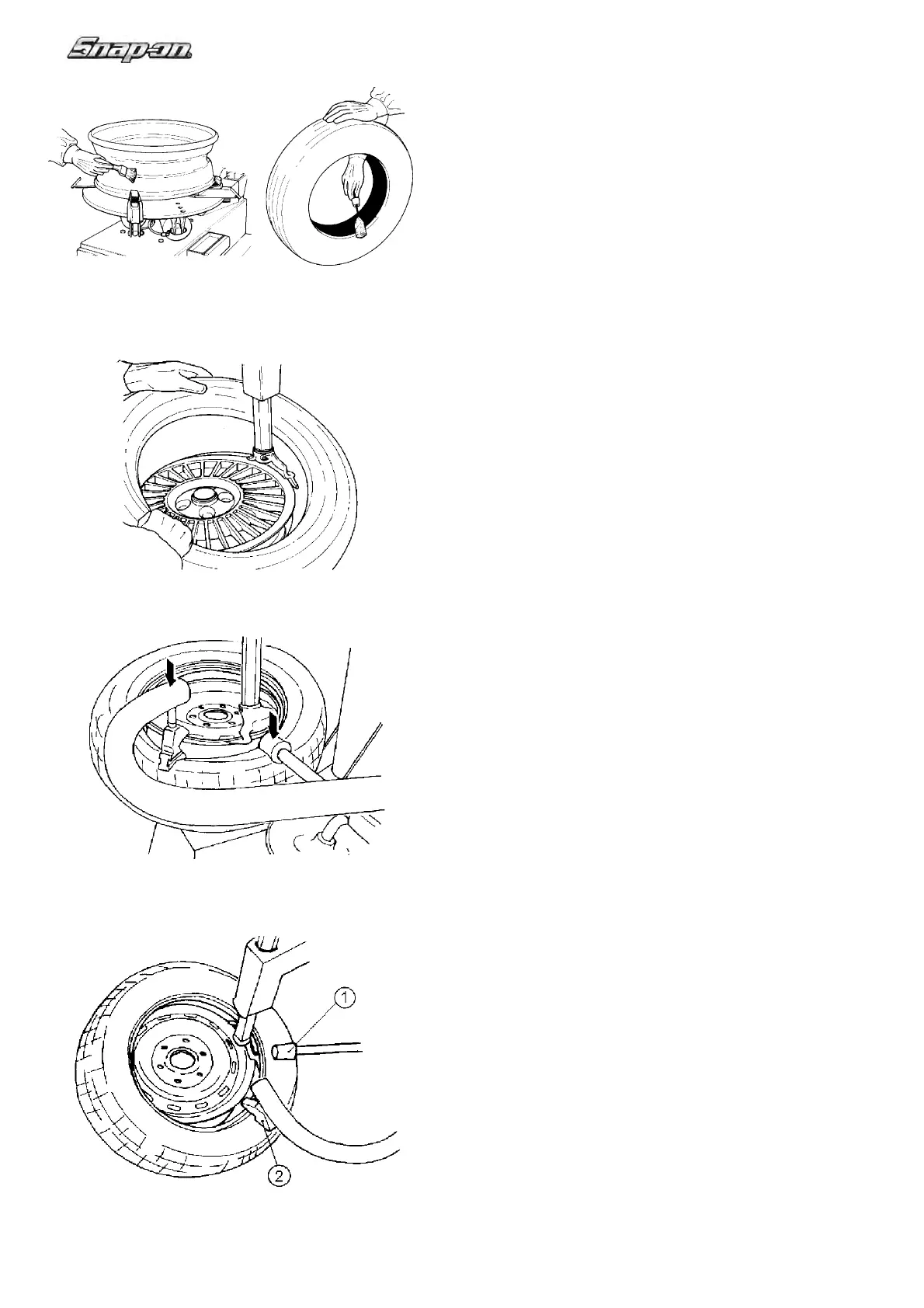

A. Lubricate the entire rim surface (Fig. 4.2-1).
Lubricate both beads, inside and outside, (Fig. 4.2-2).
WA
RNING
THE TIRE MUST BE SUFFICIENTLY LUBRICATED
WITH THE SUPPLIED TIRE PASTE AND BRUSH.
WARNING
OBSERVE T HE ROTATION DIREC TIO N OF
THE TIRE, IF REQUIRED. SOME TIRES HAVE
A COLOR DOT THAT MUST BE KEPT ON THE
OUTSIDE OF THE WHEEL.
B. Lock the rim on the turntable and rotate it to have the
valve in 5 o’clock position. This is particularly important
for cars equipped with TPMS sensors.
Place the tire to be mounted on the rim. Swing the
mounting arm forward so that the mount/demount head
is in the working position. Engage the lower bead OVER
the mounting wing and UNDER the mounting ! nger of the
mounting tool. Turn the wheel clockwise and push the tire
down into the drop center, opposite to the mount/demount
head (Fig. 4.2-3).
C. Mount the upper bead following the directions in section
B. With low pro! le tires, the pneumatic bead holding and
mounting tool can help to facilitate operations (Fig. 4.2-4).
4.2.1 Use the bead presser as a mounting
help device.
A. Mount the !
rst bead.
Position the roller (Item 1) and the bead pusher tool (Item
2) as showed in Fig. 4.2-5.
B. Lower the bead pusher so that the roller and the bead
pusher tool on the tire help keeping the bead into the drop
center (Fig. 4.2-4).
The bead pusher tool follows the tire rotation during the
mounting operation.
Bring the roller and the bead pusher tool back to rest
position.
