Seat Adjustment

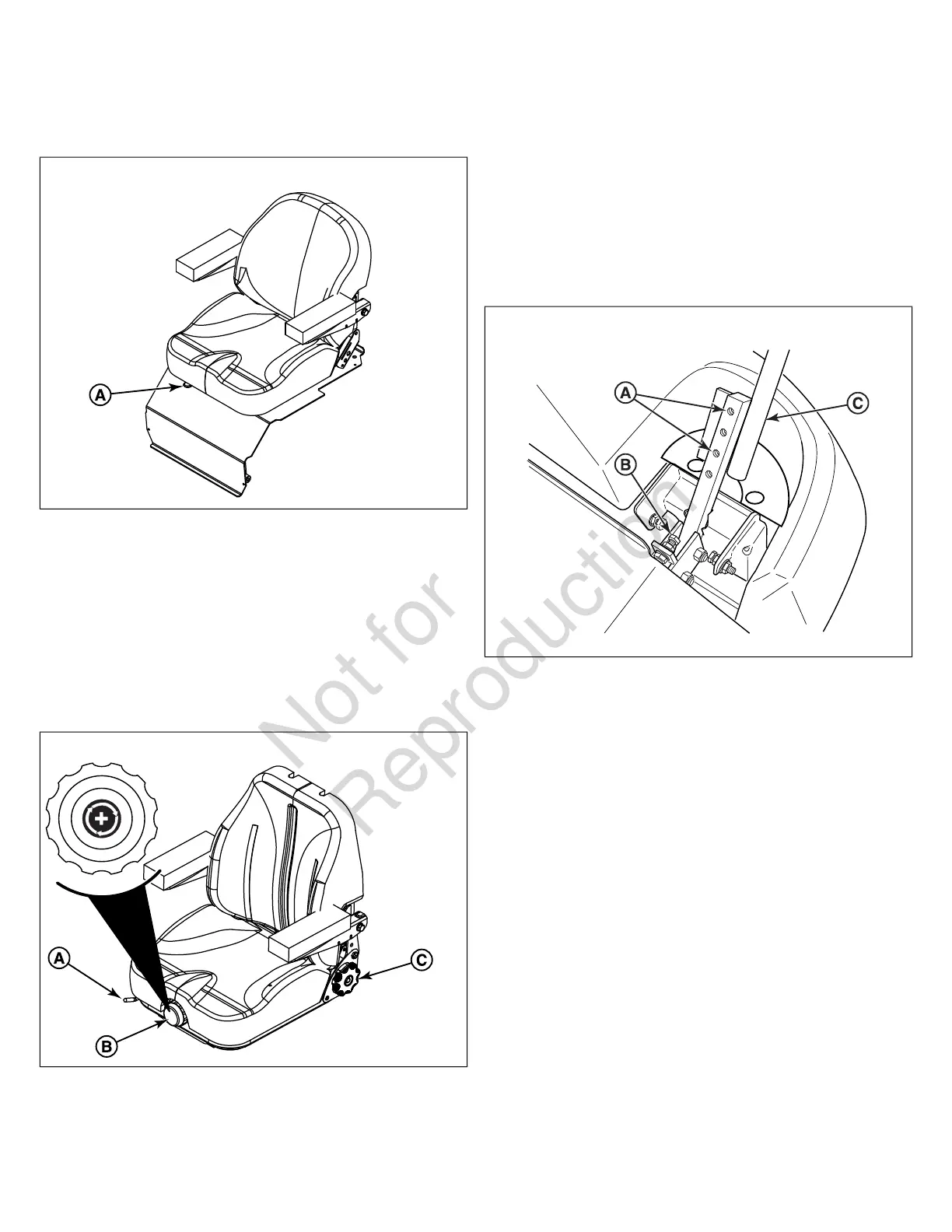

The seat can be adjusted forward and back. Move the lever (A,
Figure 45) towards the left, position the seat as desired, and
then release the lever to lock the seat into position.
45
Seat Adjustment (Suspension Seat)
In addition to the forward and backward seat adjustment, models
equipped with suspension seats can also be adjusted for
suspension (ride comfort) and seat back recline.
Forward and Backward Adjustment:
Move the forward / backward seat adjustment lever (A, Figure
46), position the seat as desired, and release the lever to lock
the seat into position.
46
Suspension Adjustment:
Turn the suspension adjustment knob (B) until the display scale
has a reading that matches the weight of the operator.
Recline Adjustment:
Turn the recline adjustment knob (C) until the desired amount
of recline is achieved.
Ground Speed Control Lever Adjustment
The control levers can be adjusted in three ways. The alignment
of the control levers, the placement of the levers (how close the
ends are to one another) and the height of the levers can be
adjusted.
To Adjust the Handle Alignment
Loosen the mount bolts (A, Figure 47) and pivot the lever(s) (C)
to align with each other.
47
To Adjust the Handle Placement
Loosen the jam nuts and adjust the placement bolt (B) in or out
to properly adjust the lever end spacing.
To Adjust the Handle Height
Remove the mounting hardware and reposition the handle either
up or down from its original position. You will need to readjust
the handle alignment as described above.
Speed Balancing Adjustment
If the rider veers to the right or left when the ground speed
control levers are in the maximum forward position, the top
speed of each of these levers can be balanced by turning the
adjustment bolt(s) (A, Figure 48). Only adjust the speed of the
wheel that is traveling faster.
