Test 3 - Engine should SHUT OFF if:
• Operator rises off seat with PTO engaged, OR
• Operator rises off seat with parking brake disengaged.
Test 4 - Blade Brake Check
The mower blades and mower drive belt should come to a
complete stop within seven (7) seconds after electric PTO
switch is turned off (or operator rises off seat).If the unit fails
the blade brake check, it is advised not to use the unit until it
is repaired and passes the blade brake check.
Note:Once the engine has stopped, PTO switch must be
turned off, parking brake must be engaged, and the ground
speed control levers must be locked in the NEUTRAL position
after the operator returns to the seat in order to start the
engine.
Features and Controls
Control Functions and Locations
The information below briefly describes the function of
individual controls. Starting, stopping, driving, and mowing
require the combined use of several controls applied in
specific sequences. To learn what combination and sequence
of controls to use for various tasks see the Operation section.

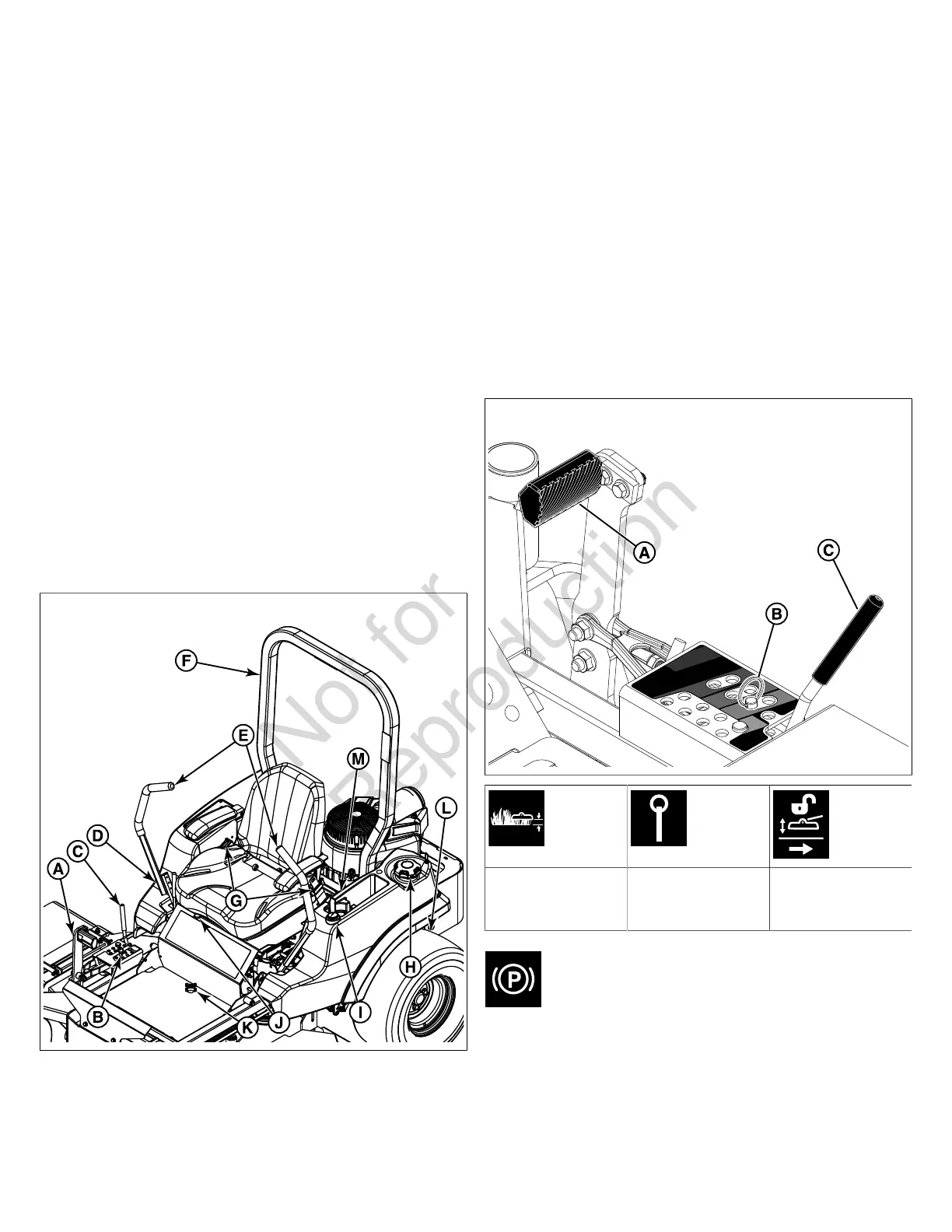

Zero-Turn Rider Controls
7
A. Deck Lift Pedal
B. Cutting Height Adjustment Pin
C. Deck Lift Lock Lever
D. Parking Brake
E. Ground Speed Control Levers
F. Roll Bar
G. Retractable Seat Belt
H. Fuel Tank Cap
I. Fuel Level Gauge
J. Seat Adjustment Lever
K. Removable Floor Plate
L. Transmission Release Levers (One per transmission)
M. Transmission Oil Fill/Tanks (One per transmission)
Deck Lift Pedal, Cutting Height Adjustment Pin & Deck
Lift Lock Lever: The deck lift pedal (A, Figure 8), the cutting
height adjustment pin (B), and the deck lift lock lever (C) are
used together to control the cutting height of the mower deck.
See Cutting Height Adjustment for instructions on using these
controls.
8
Cutting Height
Adjustment
Storage Hole for
Cutting Height
Adjustment Pin
Deck Lift Lock
Lever
Parking Brake: Pull the parking brake lever up
and back to engage the parking brake. Move the lever fully
forward and down to disengage the parking brake.
Note:To start the unit the parking brake must be engaged.
Engaging the parking brake locks the ground speed control
levers in the NEUTRAL position. The parking brake must be
disengaged before moving the ground speed control levers
out of the NEUTRAL position.
