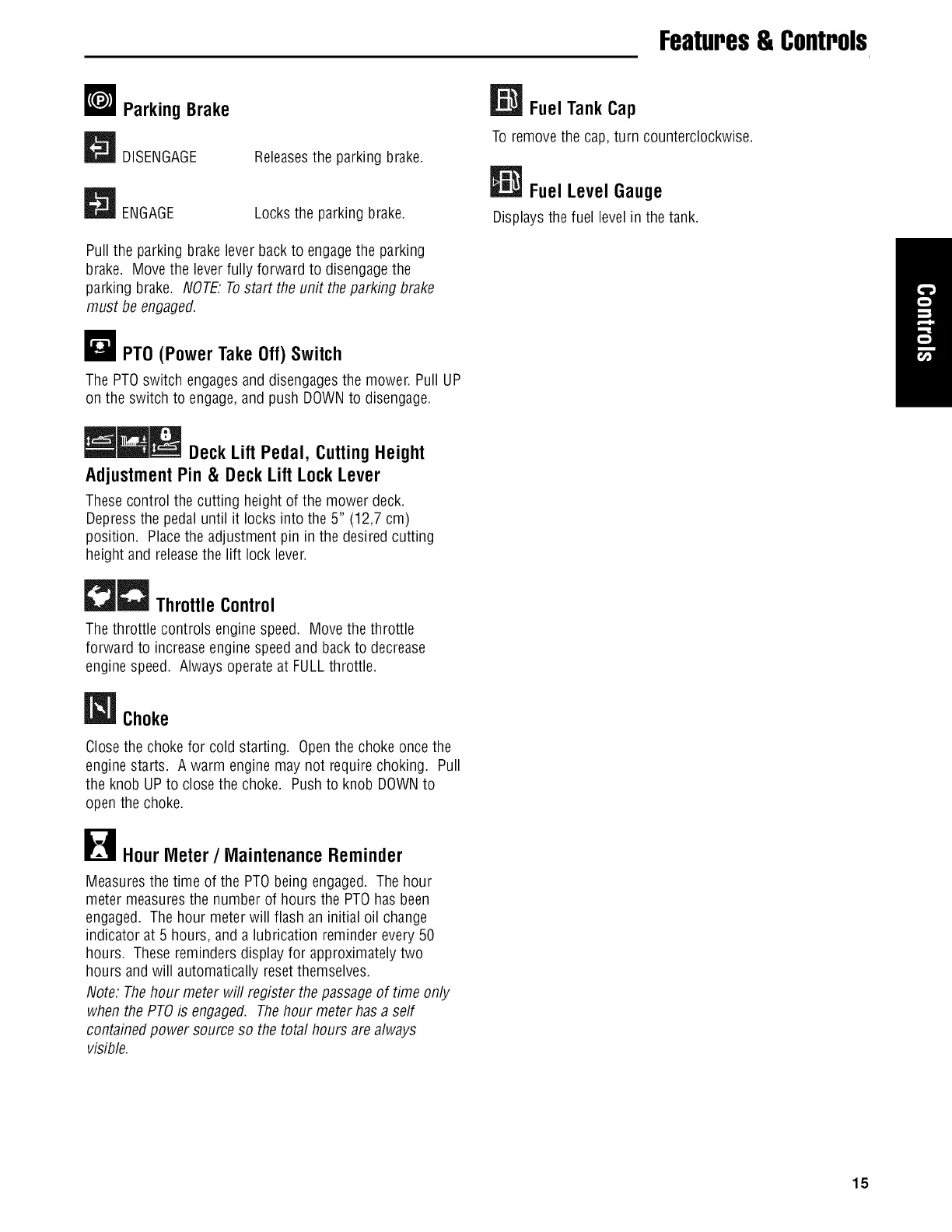

Features& Controls
_ Parking Brake
_ DISENGAGE
Releasesthe parking brake.
ENGAGE
Locks the parking brake.
Pull the parking brake lever back to engagethe parking
brake. Move the lever fully forward to disengage the
parking brake. NOTE.Tostart the unit the parking brake
must be engaged.
_PTO (Power Take Off) Switch
The PTOswitch engagesand disengagesthe mower. Pull UP
on the switch to engage,and push DOWNto disengage.
Fuel Tank Cap
To removethe cap, turn counterclockwise.
FuelLevelGauge
Displaysthe fuel level in the tank.
Deck Lift Pedal, Cutting Height
Adjustment Pin & Deck Lift Lock Lever
Thesecontrol the cutting height of the mower deck.
Depressthe pedal until it locks into the 5" (12,7 cm)
position. Placethe adjustment pin in the desired cutting
height and releasethe lift lock lever.
Throttle Control
Thethrottle controls engine speed. Movethe throttle
forward to increaseengine speedand back to decrease
engine speed. Always operateat FULLthrottle.
_ Choke
Closethe choke for cold starting. Openthe choke oncethe
engine starts. A warm engine may not require choking. Pull
the knob UPto close the choke. Push to knob DOWNto
open the choke.
B HourMeter / MaintenanceReminder
Measuresthe time of the PTObeing engaged. The hour
meter measuresthe number of hours the PTOhas been
engaged. The hour meter will flash an initial oil change
indicator at 5 hours, and a lubrication reminder every 50
hours. These reminders display for approximately two
hours andwill automatically reset themselves.
Note: Thehour meter will register thepassageof time only
whenthe PTOis engaged. Thehour meter hasa self
contained power source so the total hours are always
visible.
15
