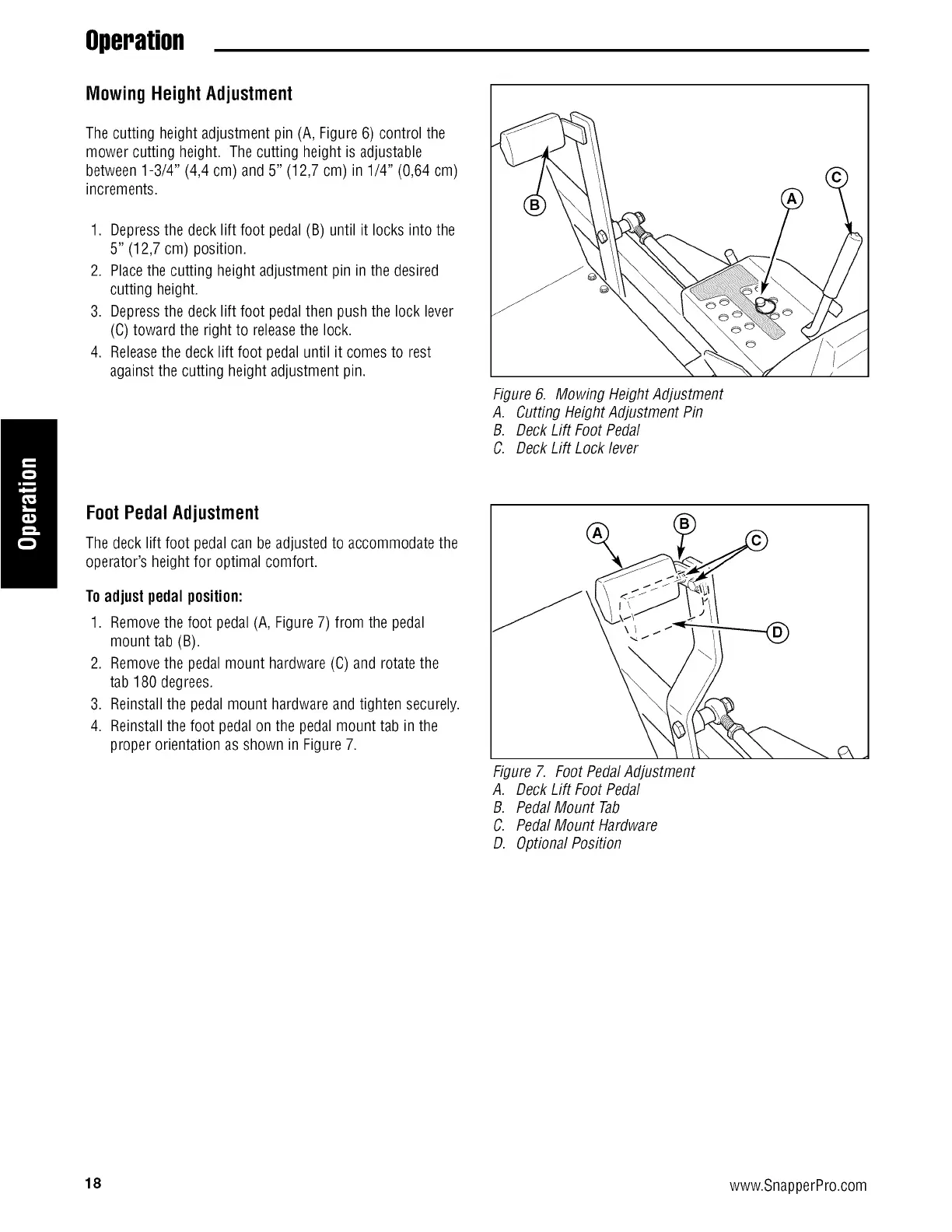

Snapper Pro S200X Series - Operation; Mowing Height Adjustment; Foot Pedal Adjustment

Operation
Mowing Height Adjustment
Thecutting height adjustment pin (A, Figure 6) control the
mower cutting height. The cutting height is adjustable
between 1-3/4" (4,4 cm) and 5" (12,7 cm) in 1/4" (0,64 cm)
increments.
1. Depressthe deck lift foot pedal (B) until it locks into the
5" (12,7 cm) position.
2. Placethe cutting height adjustment pin in the desired
cutting height.
3. Depressthe deck lift foot pedalthen push the lock lever
(C)toward the right to releasethe lock.
4. Releasethe deck lift foot pedal until it comes to rest
againstthe cutting height adjustment pin.
Figure 6. Mowing Height Adjustment
A. Cutting HeightAdjustment Pin
B. Deck Lift Foot Pedal
C. Deck Lift Lock lever
I
Foot Pedal Adjustment
Thedeck lift foot pedalcan be adjusted to accommodate the
operator's height for optimal comfort.
Toadjustpedalposition:
1. Removethe foot pedal (A, Figure7) from the pedal
mount tab (B).
2. Removethe pedalmount hardware(C) and rotatethe
tab 180 degrees.
3. Reinstall the pedal mount hardware and tighten securely.
4. Reinstall the foot pedalon the pedal mount tab in the
proper orientation as shown in Figure7.
%
Figure 7. Foot PedalAdjustment
A. Deck Lift Foot Pedal
B. Pedal Mount Tab
C. Pedal Mount Hardware
D. Optional Position
