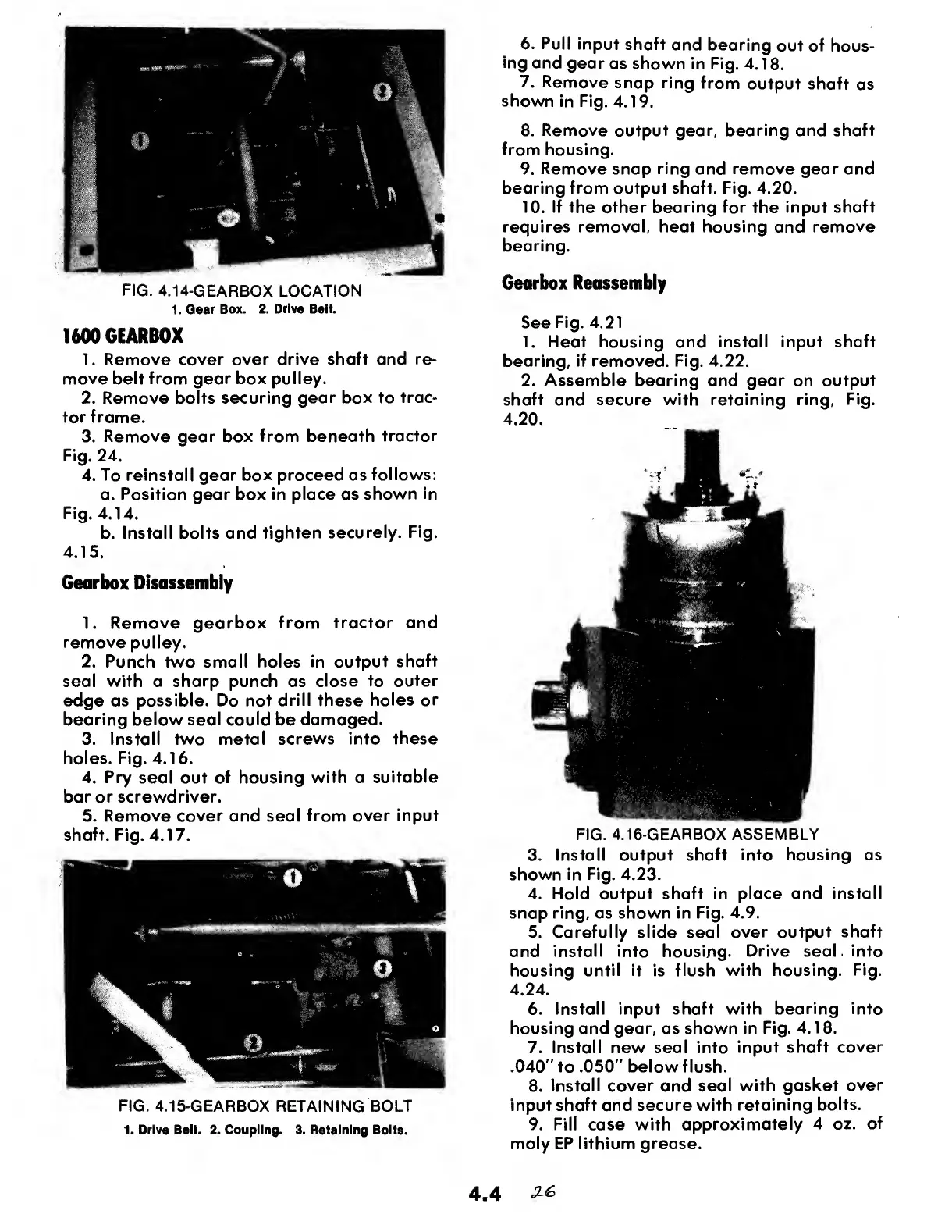

FIG.
4.14-GEARBOX
LOCATION
1.
Gear
Box.
2.
Drive
Belt.
1600
GEARBOX
1.
Remove
cover
over
drive
shaft
and
re¬
move
belt
from
gear
box
pulley.
2.
Remove
bolts
securing
gear
box
to
trac¬
tor
frame.
3.
Remove
gear
box
from
beneath
tractor
Fig.
24.
4.
To
reinstall
gear
box
proceed
as
follows:
a.
Position
gear
box
in
place
as
shown
in
Fig.
4.14.
b.
Install
bolts
and
tighten
securely.
Fig.
4.15.
Gearbox
Disassembly
1.
Remove
gearbox
from
tractor
and
remove
pulley.
2.
Punch
two
small
holes
in
output
shaft
seal
with
a
sharp
punch
as
close
to
outer
edge
as
possible.
Do
not
drill
these
holes
or
bearing
below
seal
could
be
damaged.
3.
Install
two
metal
screws
into
these
holes.
Fig.
4.16.
4.
Pry
seal
out
of
housing
with
a
suitable
bar
or
screwdriver.
5.
Remove
cover
and
seal
from
over
input
shaft.
Fig.
4.17.
FIG.
4.15-GEARBOX
RETAINING
BOLT
1.
Drive
Belt.
2.
Coupling.
3.
Retaining
Bolts.
6.
Pull
input
shaft
and
bearing
out
of
hous¬
ing
and
gear
as
shown
in
Fig.
4.18.
7.
Remove
snap
ring
from
output
shaft
as
shown
in
Fig.
4.19.
8.
Remove
output
gear,
bearing
and
shaft
from
housing.
9.
Remove
snap
ring
and
remove
gear
and
bearing
from
output
shaft.
Fig.
4.20.
10.
If
the
other
bearing
for
the
input
shaft
requires
removal,
heat
housing
and
remove
bearing.
Gearbox
Reassembly
See
Fig.
4.21
1.
Heat
housing
and
install
input
shaft
bearing,
if
removed.
Fig.
4.22.
2.
Assemble
bearing
and
gear
on
output
shaft
and
secure
with
retaining
ring,
Fig.
4.20.
FIG.
4.16-GEARBOX
ASSEMBLY
3.
Install
output
shaft
into
housing
as
shown
in
Fig.
4.23.
4.
Hold
output
shaft
in
place
and
install
snap
ring,
as
shown
in
Fig.
4.9.
5.
Carefully
slide
seal
over
output
shaft
and
install
into
housing.
Drive
seal
,
into
housing
until
it
is
flush
with
housing.
Fig.
4.24.
6.
Install
input
shaft
with
bearing
into
housing
and
gear,
as
shown
in
Fig.
4.18.
7.
Install
new
seal
into
input
shaft
cover
.040”
to
.050"
below
flush.
8.
Install
cover
and
seal
with
gasket
over
input
shaft
and
secure
with
retaining
bolts.
9.
Fill
case
with
approximately
4
oz.
of
moly
EP
lithium
grease.
4.4
^
