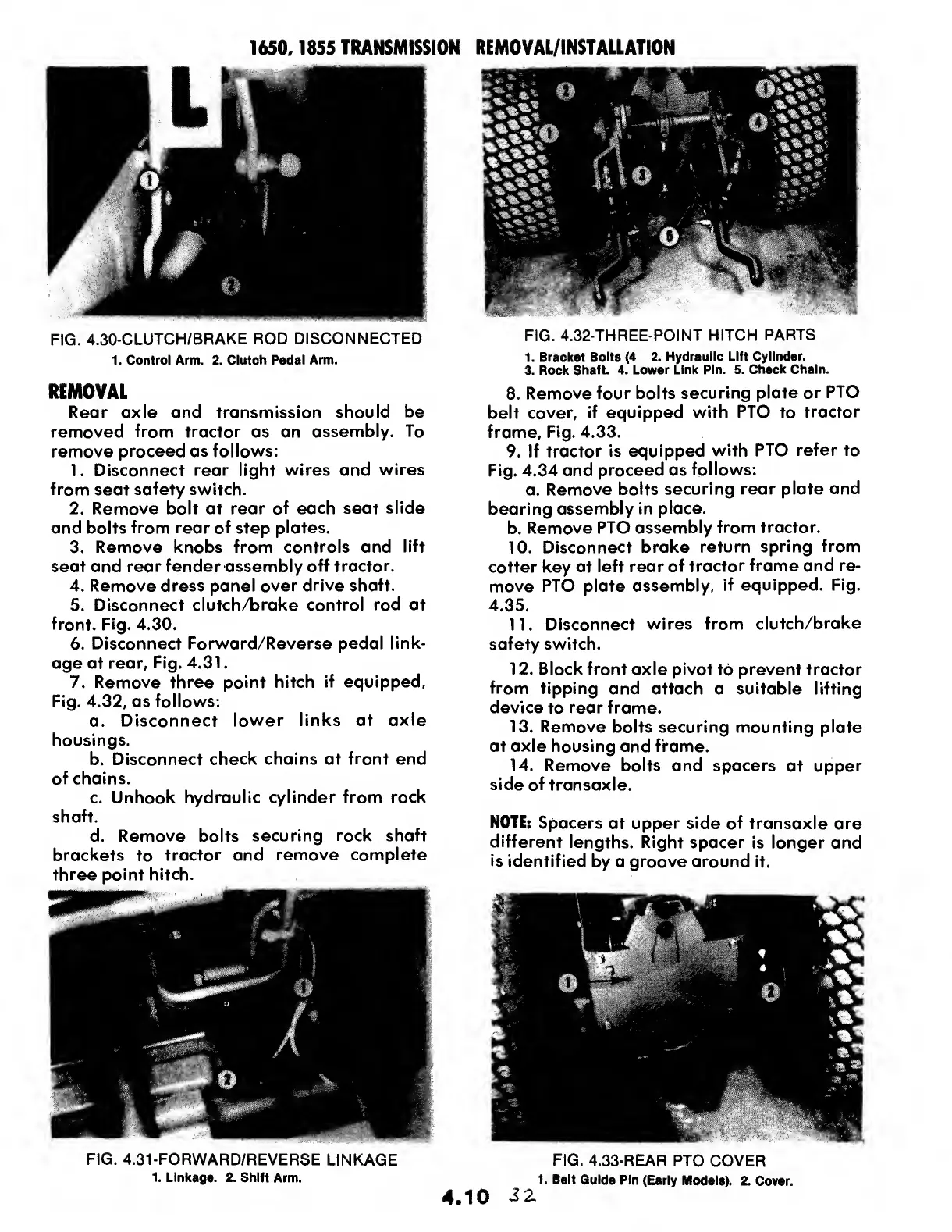

1650,1855
TRANSMISSION
REMOVAL/INSTALLATION
FIG.
4.31-FORWARD/REVERSE
LINKAGE
1.
Linkage.
2.
Shift
Arm.
4.10
32
FIG.
4.33-REAR
PTO
COVER
1.
Belt
Guide
Pin
(Early
Modela).
2.
Cover.
FIG.
4.32-THREE-POINT
HITCH
PARTS
1.
Bracket
Bolts
(4
2.
Hydraulic
Lift
Cylinder.
3.
Rock
Shaft.
4.
Lower
Link
Pin.
5.
Check
Chain.
8.
Remove
four
bolts
securing
plate
or
PTO
belt
cover,
if
equipped
with
PTO
to
tractor
frame,
Fig.
4.33.
9.
If
tractor
is
equipped
with
PTO
refer
to
Fig.
4.34
and
proceed
as
follows:
a.
R
emove
bolts
securing
rear
plate
and
bearing
assembly
in
place.
b.
R
emove
PTO
assembly
from
tractor.
10.
Disconnect
brake
return
spring
from
cotter
key
at
left
rear
of
tractor
frame
and
re¬
move
PTO
plate
assembly,
if
equipped.
Fig.
4.35.
11.
Disconnect
wires
from
clutch/brake
safety
switch.
12.
Block
front
axle
pivot
to
prevent
tractor
from
tipping
and
attach
a
suitable
lifting
device
to
rear
frame.
13.
Remove
bolts
securing
mounting
plate
at
axle
housing
and
frame.
14.
Remove
bolts
and
spacers
at
upper
side
of
transaxle.
NOTE:
Spacers
at
upper
side
of
transaxle
are
different
lengths.
Right
spacer
is
longer
and
is
identified
by
a
groove
around
it.
FIG.
4.30-CLUTCH/BRAKE
ROD
DISCONNECTED
1.
Control
Arm.
2.
Clutch
Pedal
Arm.
REMOVAL
Rear
axle
and
transmission
should
be
removed
from
tractor
as
an
assembly.
To
remove
proceed
as
follows:
1.
Disconnect
rear
light
wires
and
wires
from
seat
safety
switch.
2.
Remove
bolt
at
rear
of
each
seat
slide
and
bolts
from
rear
of
step
plates.
3.
Remove
knobs
from
controls
and
lift
seat
and
rear
fender
assembly
off
tractor.
4.
Remove
dress
panel
over
drive
shaft.
5.
Disconnect
clutch/brake
control
rod
at
front.
Fig.
4.30.
6.
Disconnect
Forward/Reverse
pedal
link¬
age
at
rear,
Fig.
4.31.
7.
Remove
three
point
hitch
if
equipped,
Fig.
4.32,
as
follows:
a.
Disconnect
lower
links
at
axle
housings.
b.
Disconnect
check
chains
at
front
end
of
chains.
c.
Unhook
hydraulic
cylinder
from
rock
shaft.
d.
Remove
bolts
securing
rock
shaft
brackets
to
tractor
and
remove
complete
three
point
hitch.
