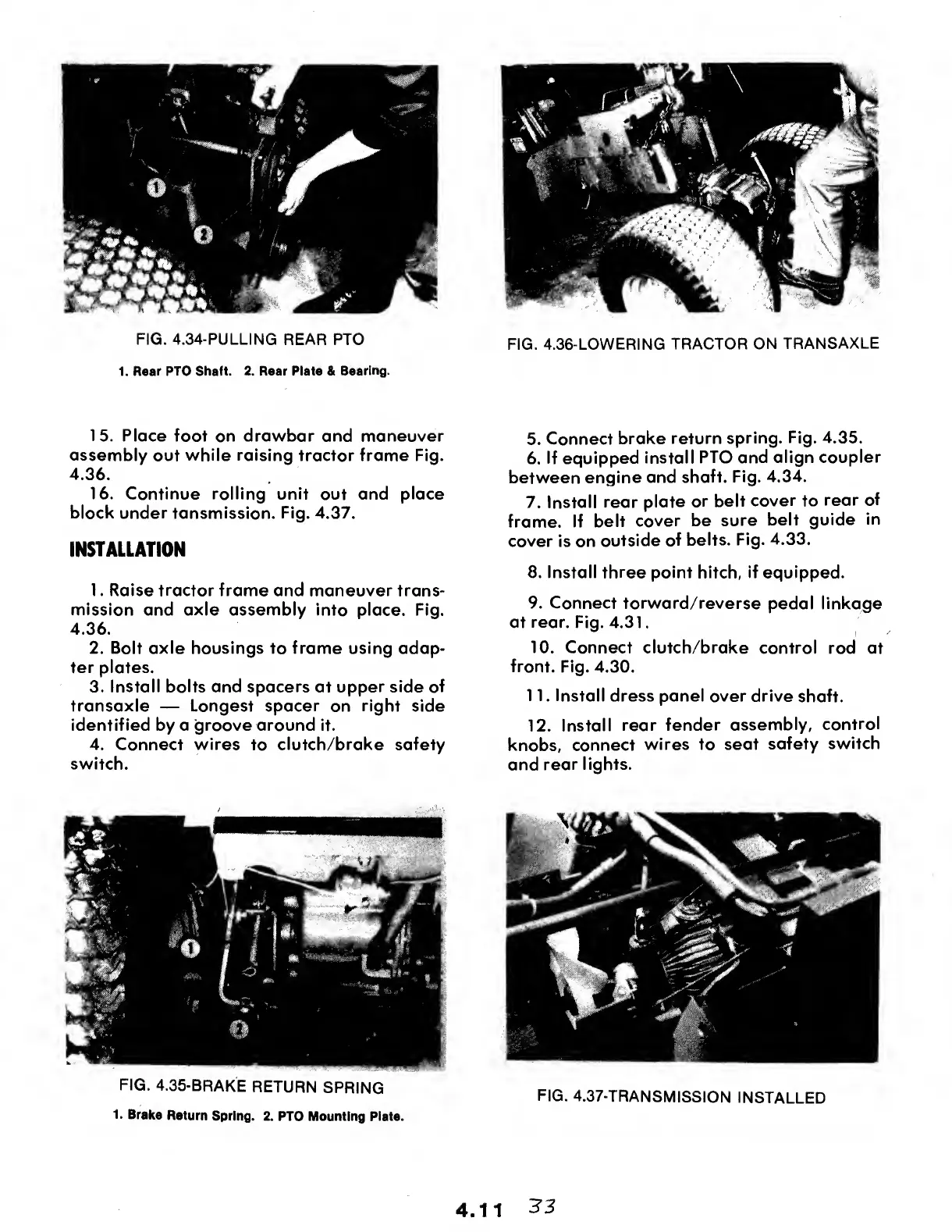

FIG. 4.34-PULLING REAR PTO
1. Rear PTO Shaft. 2. Rear Plate & Bearing.
FIG. 4.36-LOWERING TRACTOR ON TRANSAXLE
15. Place foot on drawbar and maneuver
assembly out while raising tractor frame Fig.
4.36.
16. Continue rolling unit out and place
block under tansmission. Fig. 4.37.
INSTALLATION
1. Raise tractor frame and maneuver trans¬
mission and axle assembly into place. Fig.
4.36.
2. Bolt axle housings to frame using adap¬
ter plates.
3. Install bolts and spacers at upper side of
transaxle — Longest spacer on right side
identified by a groove around it.
4. Connect wires to clutch/brake safety
switch.
FIG. 4.35-BRAKE RETURN SPRING
1. Brake Return Spring. 2. PTO Mounting Plate.
5. Connect brake return spring. Fig. 4.35.
6. If equipped install PTO and align coupler
between engine and shaft. Fig. 4.34.
7. Install rear plate or belt cover to rear of
frame. If belt cover be sure belt guide in
cover is on outside of belts. Fig. 4.33.
8. Install three point hitch, if equipped.
9. Connect torward/reverse pedal linkage
at rear. Fig. 4.31.
10. Connect clutch/brake control rod at
front. Fig. 4.30.
11. Install dress panel over drive shaft.
12. Install rear fender assembly, control
knobs, connect wires to seat safety switch
and rear lights.
FIG. 4.37-TRANSMISSION INSTALLED
4.11
