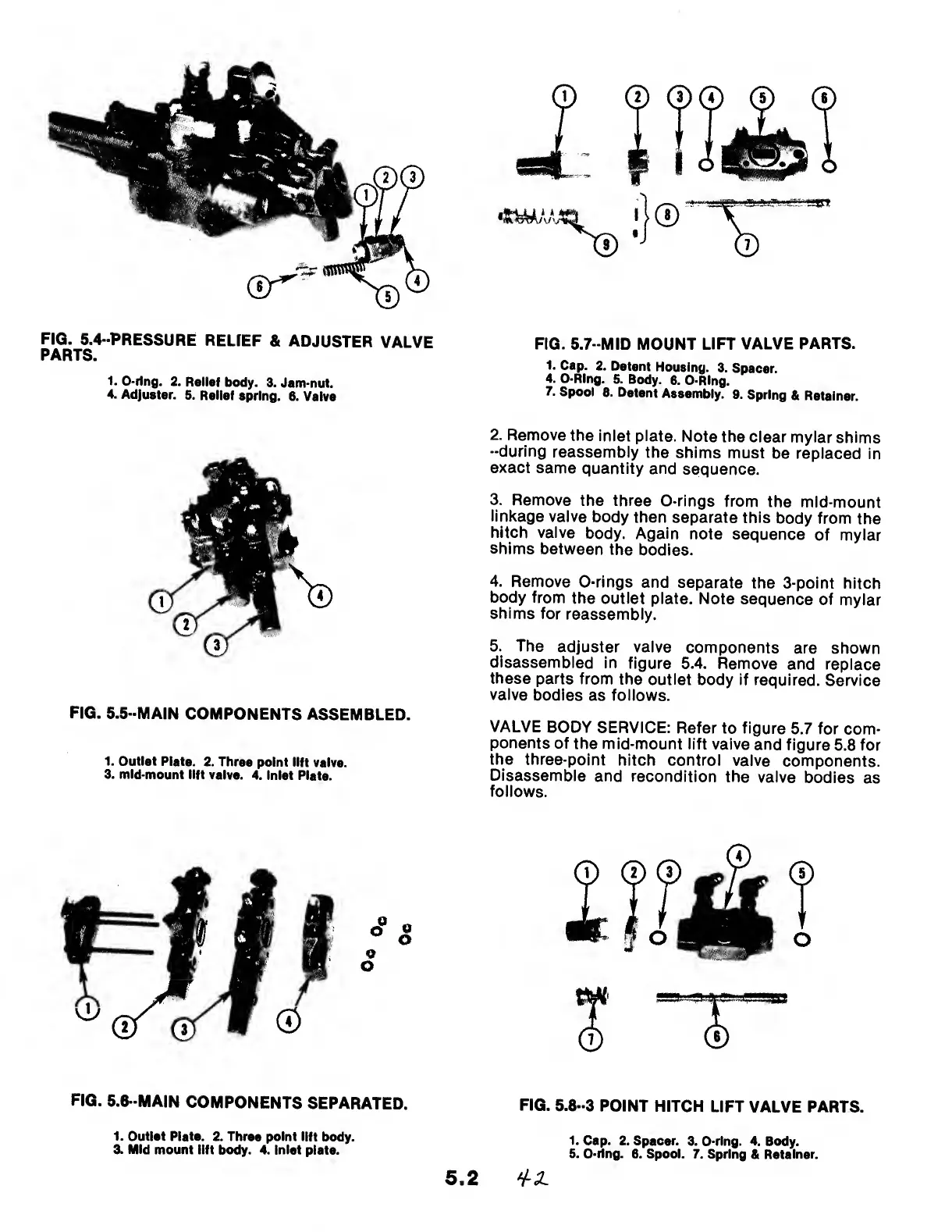

FIG. 5.4-PRESSURE RELIEF & ADJUSTER VALVE
PARTS.
1. O-ring. 2. Relief body. 3. Jam-nut.
4. Adjuster. 5. Relief spring. 6. Valve
FIG. 5.5-MAIN COMPONENTS ASSEMBLED.
1. Outlet Plate. 2. Three point lift valve.
3. mid-mount lift valve. 4. Inlet Plate.
FIG. 5.7-MID MOUNT LIFT VALVE PARTS.
1. Cap. 2. Detent Housing. 3. Spacer.
4. O-Ring. 5. Body. 6. O-RIng.
7. Spool 8. Detent Assembly. 9. Spring & Retainer.
2. Remove the inlet plate. Note the clear mylar shims
-during reassembly the shims must be replaced in
exact same quantity and sequence.
3. Remove the three O-rings from the mid-mount
linkage valve body then separate this body from the
hitch valve body. Again note sequence of mylar
shims between the bodies.
4. Remove O-rings and separate the 3-point hitch
body from the outlet plate. Note sequence of mylar
shims for reassembly.
5. The adjuster valve components are shown
disassembled in figure 5.4. Remove and replace
these parts from the outlet body if required. Service
valve bodies as follows.
VALVE BODY SERVICE: Refer to figure 5.7 for com¬
ponents of the mid-mount lift valve and figure 5.8 for
the three-point hitch control valve components.
Disassemble and recondition the valve bodies as
follows.
FIG. 5.6-MAIN COMPONENTS SEPARATED.
1. Outlet Plate. 2. Three point lift body.
3. Mid mount lift body. 4. Inlet plate.
FIG. 5.8-3 POINT HITCH LIFT VALVE PARTS.
1. Cap. 2. Spacer. 3. O-ring. 4. Body.
5. O-ring. 6. Spool. 7. Spring & Retainer.
