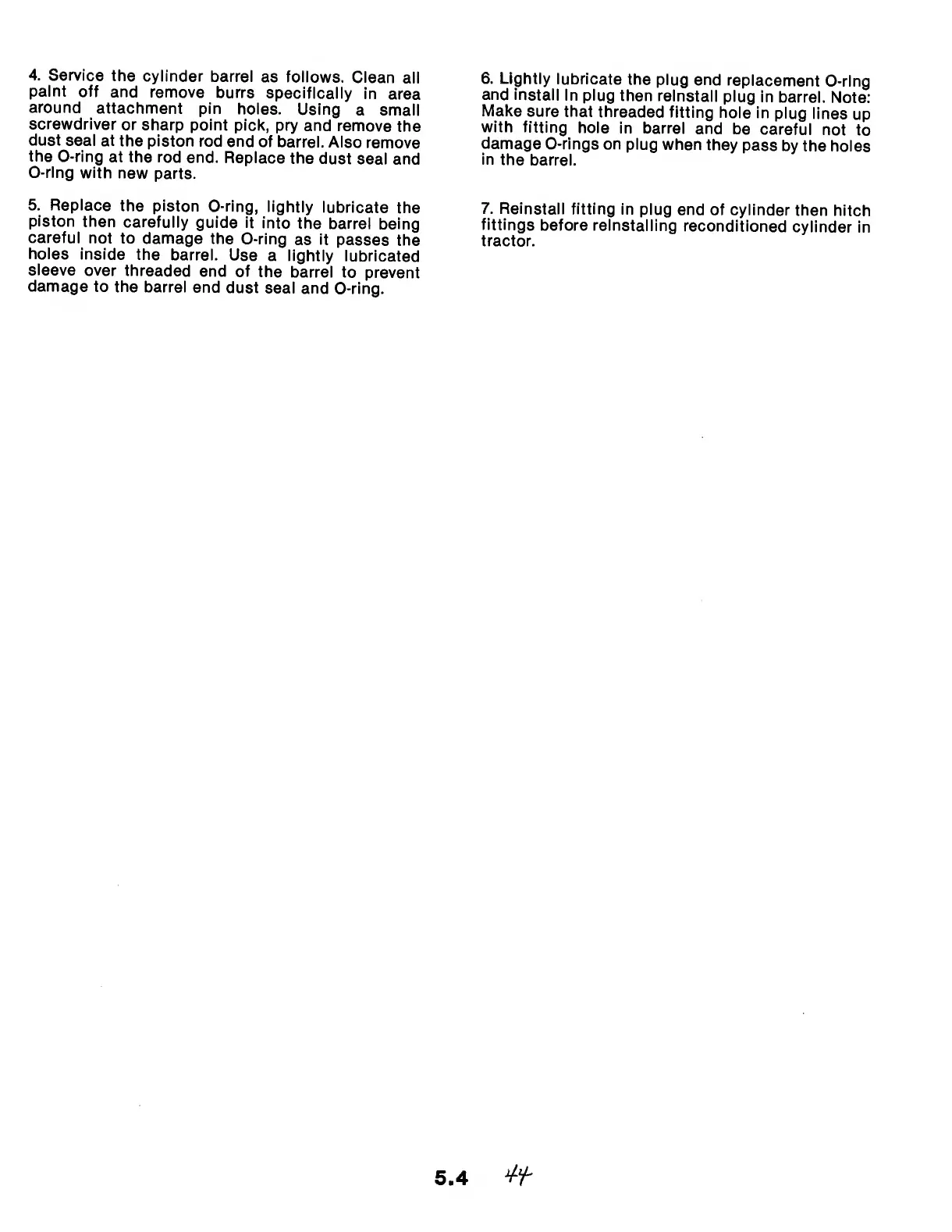

4. Service the cylinder barrel as follows. Clean all
paint off and remove burrs specifically in area
around attachment pin holes. Using a small
screwdriver or sharp point pick, pry and remove the
dust seal at the piston rod end of barrel. Also remove
the O-ring at the rod end. Replace the dust seal and
O-ring with new parts.
5. Replace the piston O-ring, lightly lubricate the
piston then carefully guide it into the barrel being
careful not to damage the O-ring as it passes the
holes inside the barrel. Use a lightly lubricated
sleeve over threaded end of the barrel to prevent
damage to the barrel end dust seal and O-ring.
6. L ightly lubricate the plug end replacement O-ring
and install in plug then reinstall plug in barrel. Note:
Make sure that threaded fitting hole in plug lines up
with fitting hole in barrel and be careful not to
damage O-rings on plug when they pass by the holes
in the barrel.
7. R einstall fitting in plug end of cylinder then hitch
fittings before reinstalling reconditioned cylinder in
tractor.
5.4 *+
