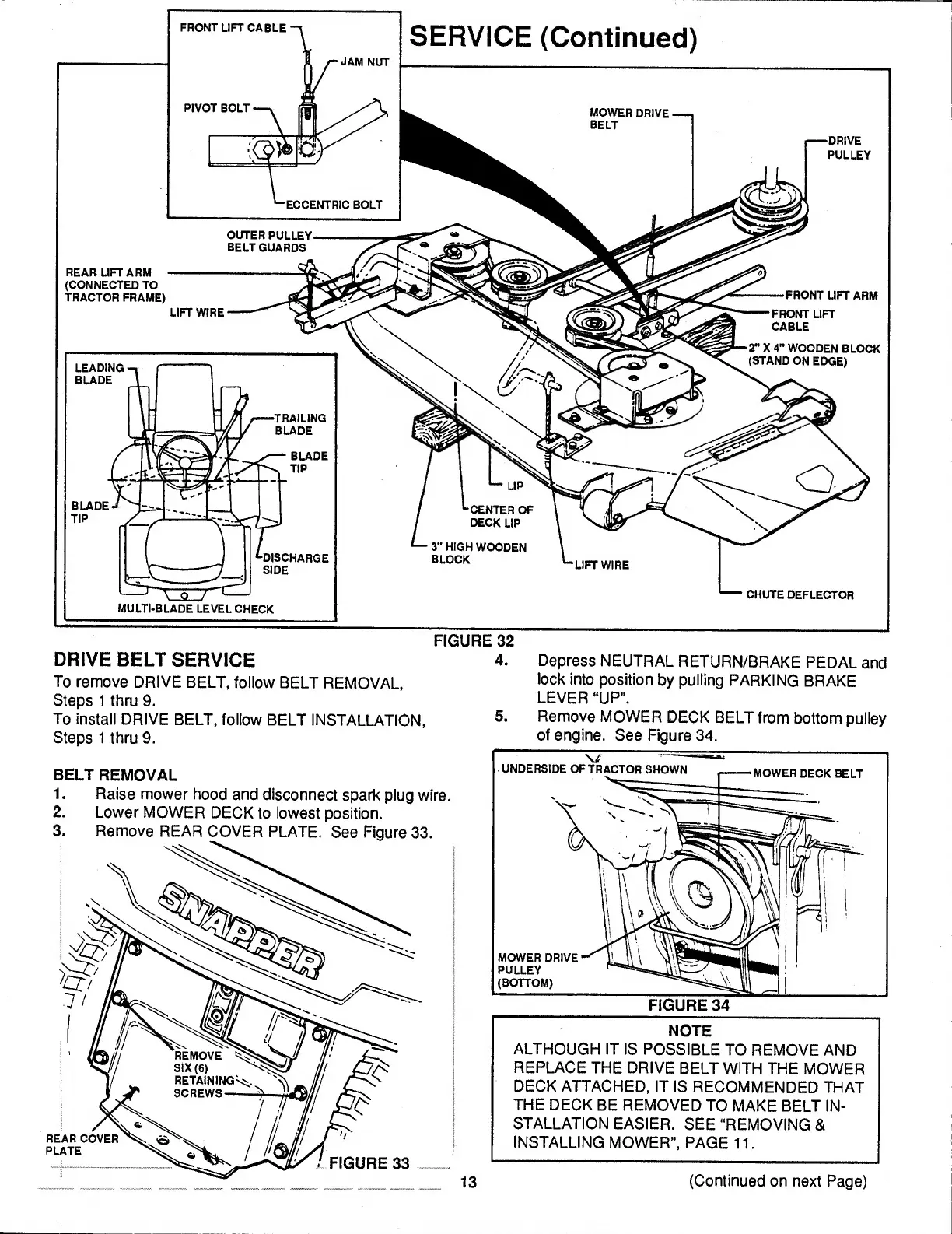

Snapper 2 Series - Drive Belt Service; Belt Removal

SERVICE (Continued)
OUTER PULLEY-
BELT GUARDS
REAR LIFT ARM -
(CONNECTED TO
TRACTOR FRAME)
LIFT WIRE-
’ ■ CENTER OF
DECK LIP
' 3” HIGH WOODEN
BLOCK
o.
•LIFT WIRE
CHUTE DEFLECTOR
DRIVE BELT SERVICE
To remove DRIVE BELT, follow BELT REMOVAL,
Steps 1 thru 9.
To install DRIVE BELT, follow BELT INSTALLATION,
Steps 1 thru 9.
FIGURE 32
4.
4. Depress NEUTRAL RETURN/BRAKE PEDAL and
lock into position by pulling PARKING BRAKE
LEVER “UP”.
5. Remove MOWER DECK BELT from bottom pulley
of engine. See Figure 34.
BELT REMOVAL
1. Raise mower hood and disconnect spark plug wire.
2. Lower MOWER DECK to lowest position.
3. Remove REAR COVER PLATE. See Figure 33.
13
(Continued on next Page)
