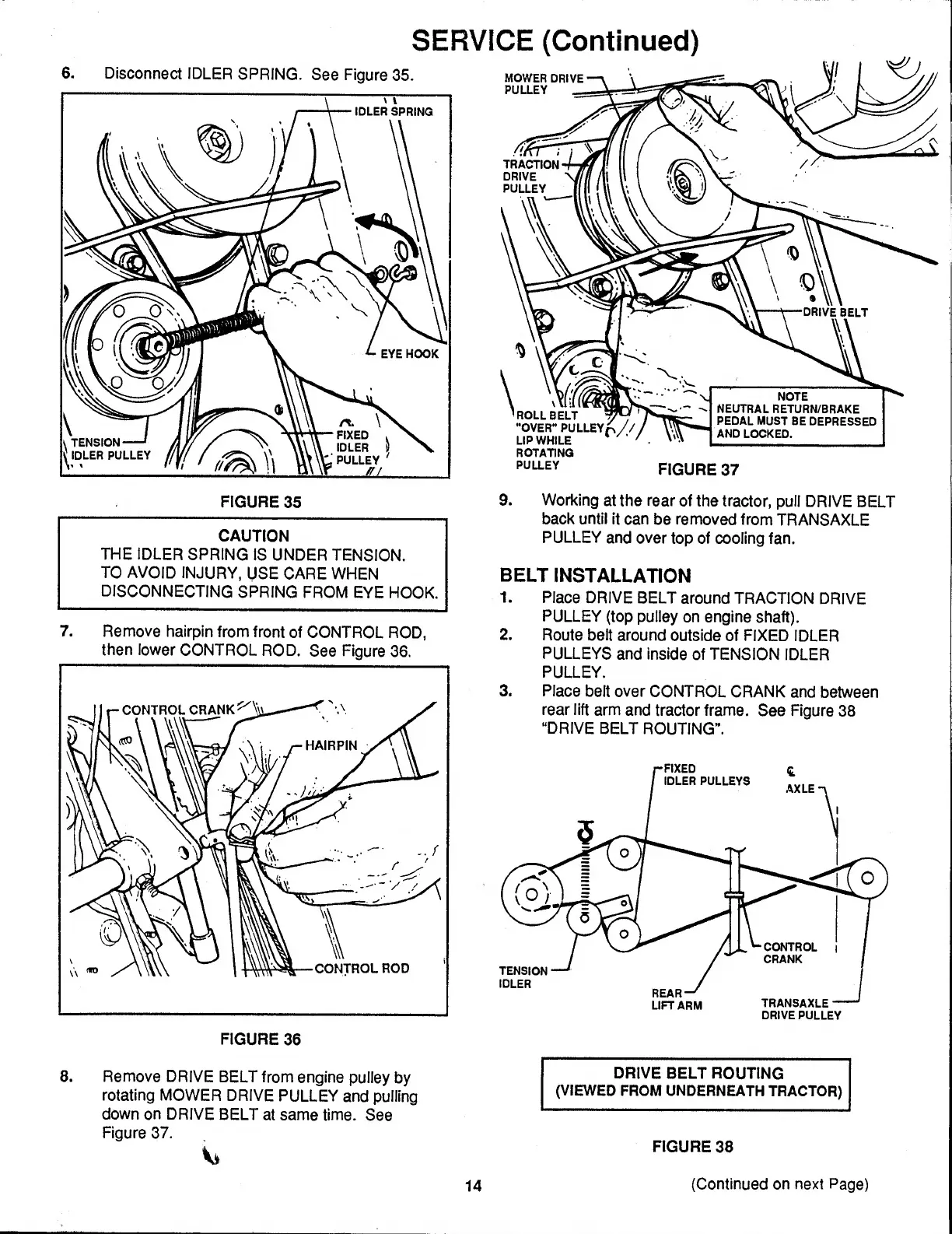

SERVICE
(Continued)
6.
Disconnect
IDLER
SPRING.
See
Figure
35.
MOWER
DRIVE
PULLEY
'ROLLBELT
,
"OVER"
PULLEYA
//
LIP
WHILE
'
ROTATING
PULLEY
NOTE
NEUTRAL
RETURN/BRAKE
PEDAL
MUST
BE
DEPRESSED
AND
LOCKED.
FIGURE
37
9.
Working
at
the
rear
of
the
tractor,
pull
DRIVE
BELT
CAUTION
THE
IDLER
SPRING
IS
UNDER
TENSION.
TO
AVOID
INJURY,
USE
CARE
WHEN
DISCONNECTING
SPRING
FROM
EYE
HOOK.
7.
Remove
hairpin
from
front
of
CONTROL
ROD,
then
lower
CONTROL
ROD.
See
Figure
36.
back
until
it
can
be
removed
from
TRANSAXLE
PULLEY
and
over
top
of
cooling
fan.
BELT
INSTALLATION
1.
Place
DRIVE
BELT
around
TRACTION
DRIVE
PULLEY
(top
pulley
on
engine
shaft).
2.
Route
belt
around
outside
of
FIXED
IDLER
PULLEYS
and
inside
of
TENSION
IDLER
PULLEY.
3.
P
lace
belt
over
CONTROL
CRANK
and
between
rear
lift
arm
and
tractor
frame.
See
Figure
38
“DRIVE
BELT
ROUTING”.
8.
Remove
DRIVE
BELT
from
engine
pulley
by
rotating
MOWER
DRIVE
PULLEY
and
pulling
down
on
DRIVE
BELT
at
same
time.
See
Figure
37.
4.
FIGURE
38
DRIVE
BELT
ROUTING
(VIEWED
FROM
UNDERNEATH
TRACTOR)
14
(Continued
on
next
Page)
