SERVICE (Continued)

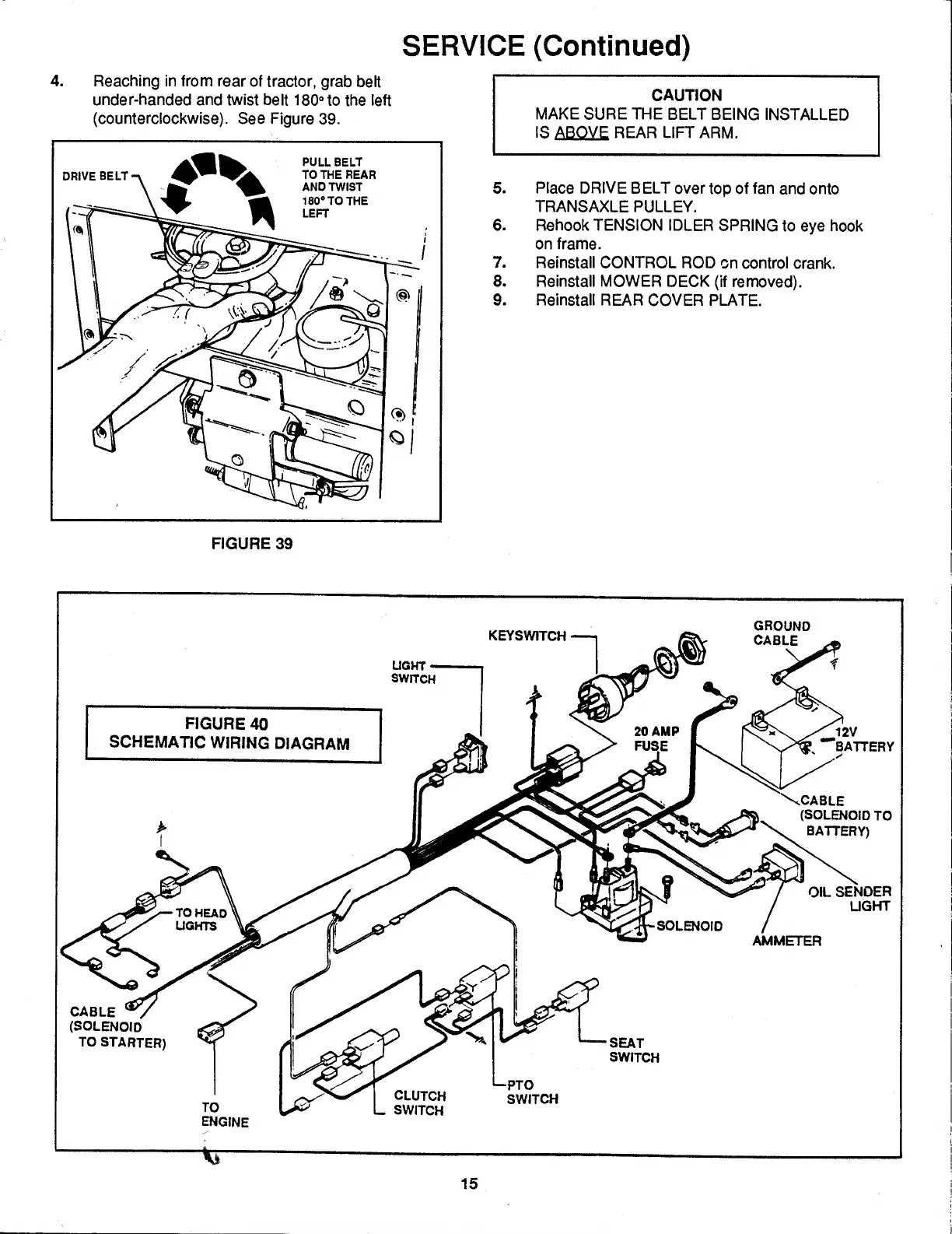

Reaching in from rear of tractor, grab belt
under-handed and twist belt 180“ to the left
(counterclockwise). See Figure 39.
CAUTION
MAKE SURE THE BELT BEING INSTALLED
IS ABOVE REAR LIFT ARM.
Place DRIVE BELT over top of fan and onto
TRANSAXLE PULLEY.
Rehook TENSION IDLER SPRING to eye hook
on frame.
Reinstall CONTROL ROD on control crank.
Reinstall MOWER DECK (if removed).
Reinstall REAR COVER PLATE.
FIGURE 39
UGHT —
swrrcH
FIGURE 40
SCHEMATIC WIRING DIAGRAM
• TO HEAD'
UQHTS
CABLE “V
(SOLENOID
TO STARTER)
TO
ENGINE
KEYSWITCH
CLUTCH
SWITCH
-PTO
SWITCH
20 AMP
FUSE
GROUND
r^ADI c
-SOLENOID
2V
BATTERY
\CABLE
(SOLENOID TO
\ BATTERY)
OIL SENDER
UGHT
AMMETER
•SEAT
SWITCH
