Snapper 20SPWM48 - SIDE DISCHARGE CHUTE INSTALLATION

Not for
Reproduction
16
Fig. 6
ASSEMBLY

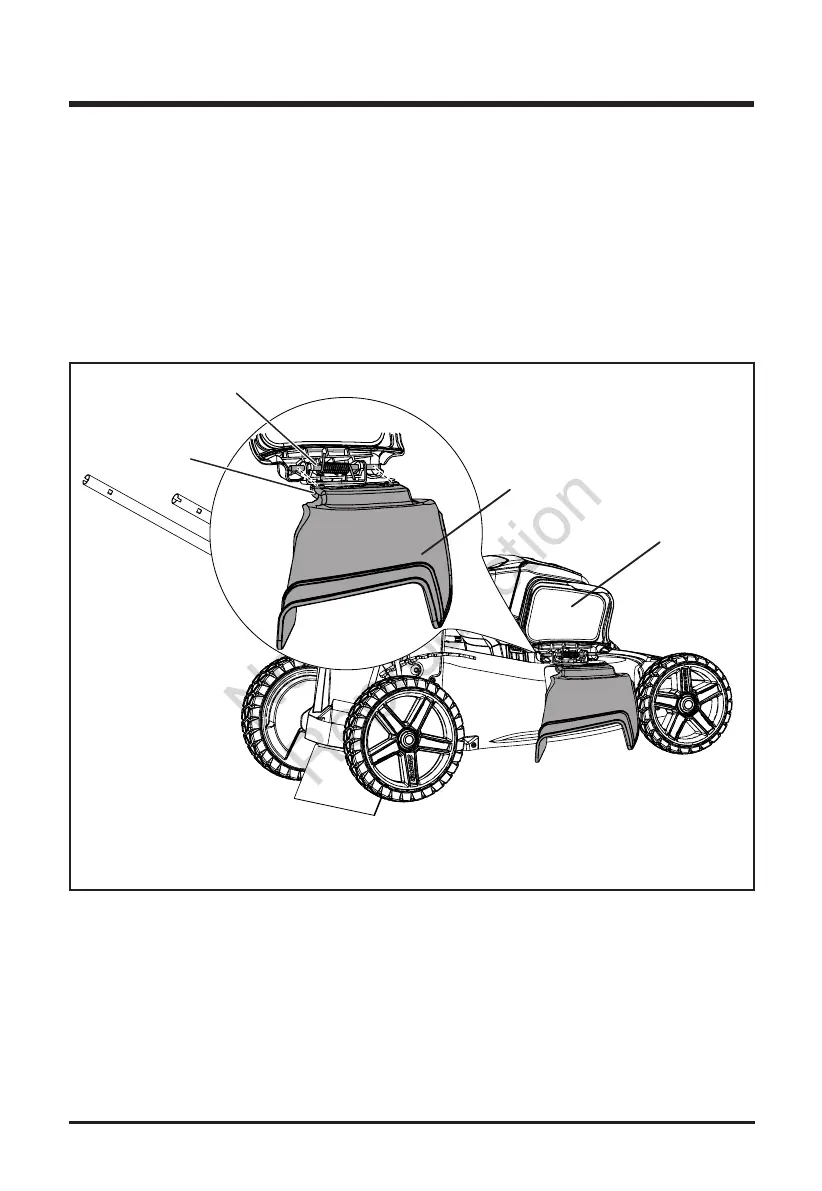

INSTALLING SIDE DISCHARGE CHUTE (See Figure 6)
• Lift the side discharge cover (1).
• Align the grooves (2) on the discharge chute (3) with the pins (4) on the
underside of the discharge cover (1).
• Lower the discharge chute until the hooks on the mower deck are secured
in the openings in the discharge chute.
• Release the side discharge cover.
(1)
(2)
(4)
(3)
