Snapper 3 Series Installation Instructions & Operator's Guide

Section I - INTRODUCTION
This manual covers SNAPPER Models 14223,16223
and 17243 Snow Throwers. The first number in the
Model designation indicates the horsepower of the
engine. The next two numbers indicate the width in
inches of the collector housing and the last number
indicates design series. The manual includes the
recommended operating instructions and the routine
service and adjustment procedures. Comprehensive
overhaul/repair manuals and parts manuals for these
models are available from your SNAPPER Dealer at
nominal cost.
HIGH-SPEED
. IMPELLER
Refer to the Engine Owner's Manual for specific details
involving operation and service of the engine. Make sure
that each person authorized to operate this Snow
Thrower reads this manual prior to operation and pays
particular attention to the IMPORTANT SAFETY
PRECAUTIONS on Page 2, and to all warning and
caution decals on the machine. Also, make sure all
operators become thoroughly familiar with the controls
and understand how they function. Refer to the

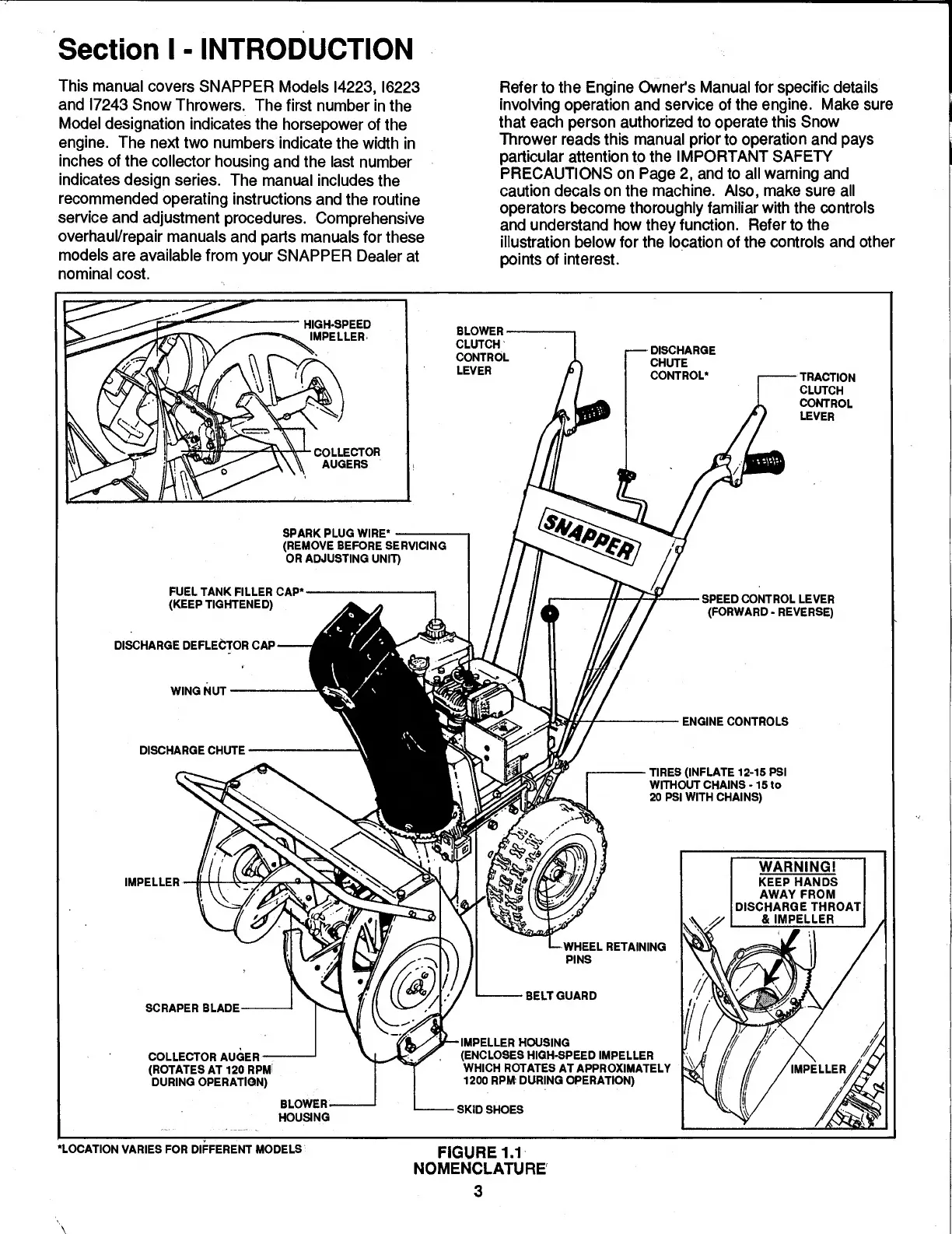

illustration below for the location of the controls and other
points of interest.
blower -
CLUTCH
CONTROL
LEVER
DISCHARGE
CHUTE
CONTROL*
■ TRACTION
CLUTCH
CONTROL
LEVER
•COLLECTOR
AUGERS
SPARK PLUG WIRE*-
(REMOVE BEFORE SERVICING
OR ADJUSTING UNIT)
%
FUEL TANK FILLER CAP*-
(KEEP TIGHTENED)
DISCHARGE DEFLECTOR CAP-
- SPEED CONTROL LEVER
(FORWARD - REVERSE)
DISCHARGE CHUTE -
ENGINE CONTROLS
TIRES (INFLATE 12-15 PSI
WITHOUT CHAINS-15 to
20 PSI WITH CHAINS)
IMPELLER •
WARNING!
KEEP HANDS
AWAY FROM
DISCHARGE THROAT
& IMPELLER
SCRAPER BLADE-
COLLECTOR AUGER —
(ROTATES AT 120 RPM
DURING OPERATION)
- WHEEL RETAINING
PINS
BLOWER -
HOUSING
- BELT GUARD
-IMPELLER HOUSING
(ENCLOSES HIGH-SPEED IMPELLER
WHICH ROTATES AT APPROXIMATELY
1200 RPM DURING OPERATION)
-SKID SHOES
IMPELLER
•LOCATION VARIES FOR DIFFERENT MODELS
FIGURE 1.1
NOMENCLATURE
