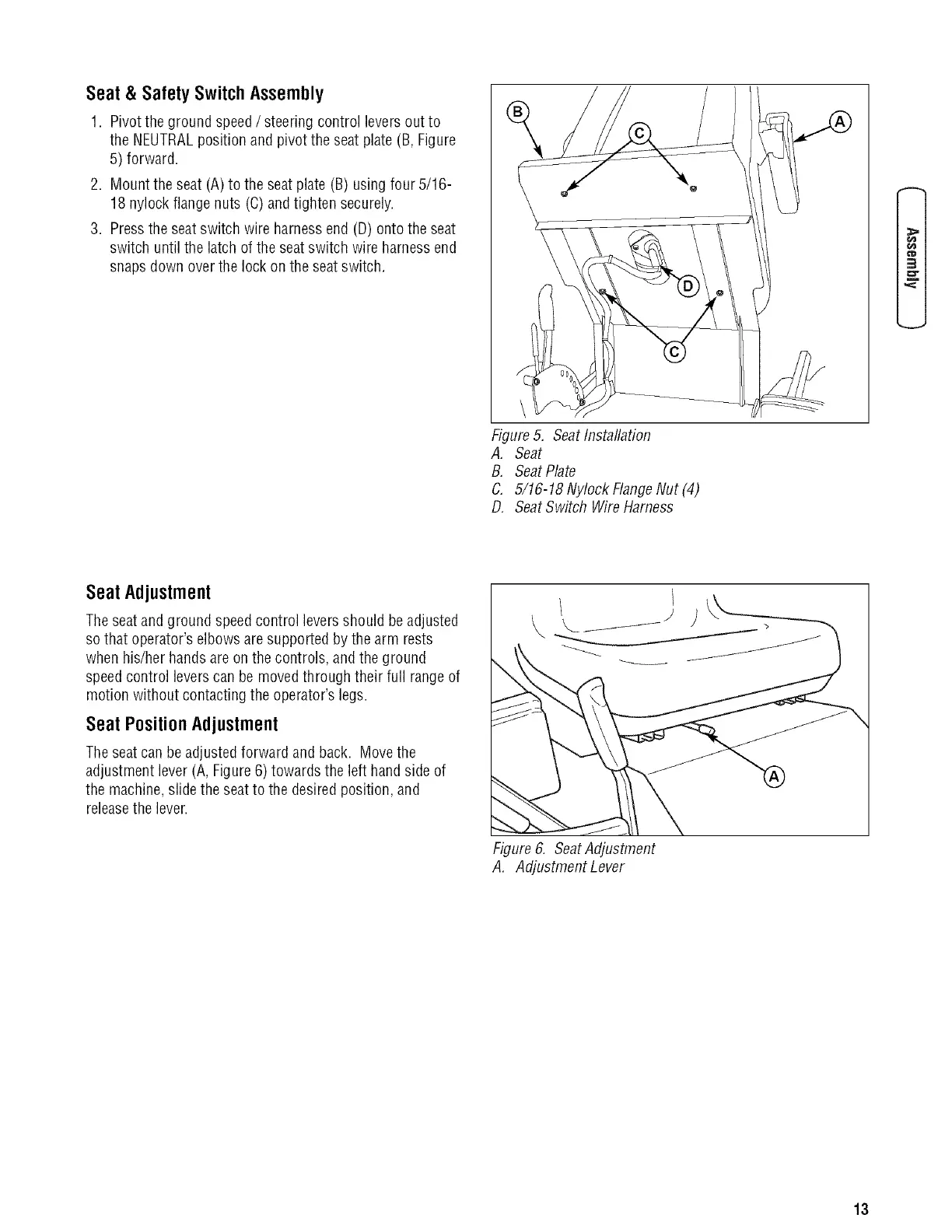

Seat& SafetySwitchAssembly
1. Pivot theground speed/ steering control levers out to
the NEUTRALposition and pivot the seat plate (B, Figure
5) forward.
2. Mount the seat (A) to the seat plate (B) usingfour 5/16-
18 nylock flangenuts (C)andtighten securely.
3. Pressthe seatswitch wire harnessend (D) onto the seat
switch until the latch of the seat switch wire harness end
snaps down over the lock on the seatswitch.
¢'D
3
Figure5. SeatInstallation
A, Seat
B. SeatPlate
C. 5/16-18 Nylock FlangeNut (4)
D, Seat Switch Wire Harness
SeatAdjustment
Theseatand ground speedcontrol levers should be adjusted
sothat operator's elbows are supported bythe arm rests
when his/her hands are onthe controls, and the ground
speedcontrol levers canbe movedthrough their full range of
motion without contacting the operator's legs.
Seat Position Adjustment
Theseatcan be adjustedforward and back. Movethe
adjustment lever (A, Figure6) towards the left hand side of
the machine,slide the seat to the desired position, and
releasethe lever.
Figure6. SeatAdjustment
A. Adjustment Lever
13
