Lubrication
Lubricate the unit atthe following lubrication points shown
in Figure24.
Grease:
i_ • front casterwheel axles
• front casteryokes
• roller straps (deck lift pivots)
• mower deck idler arm pivot
• mower deckarbors
Usegreasefittings whenpresent. Disassembleparts to apply
greaseto moving parts when greasefittings are not installed.
Not all greases arecompatible. Useautomotive-type lithium
grease.
Oil:
• control handle pivots
• dischargechute hinge
Generally,all moving metal parts should be oiled where
contact is madewith other parts. Keepoil and greaseoff
belts and pulleys. Rememberto wipe fittings and surfaces
cleanboth beforeand after lubrication.
Idler
Arm Pivot
=z
f_

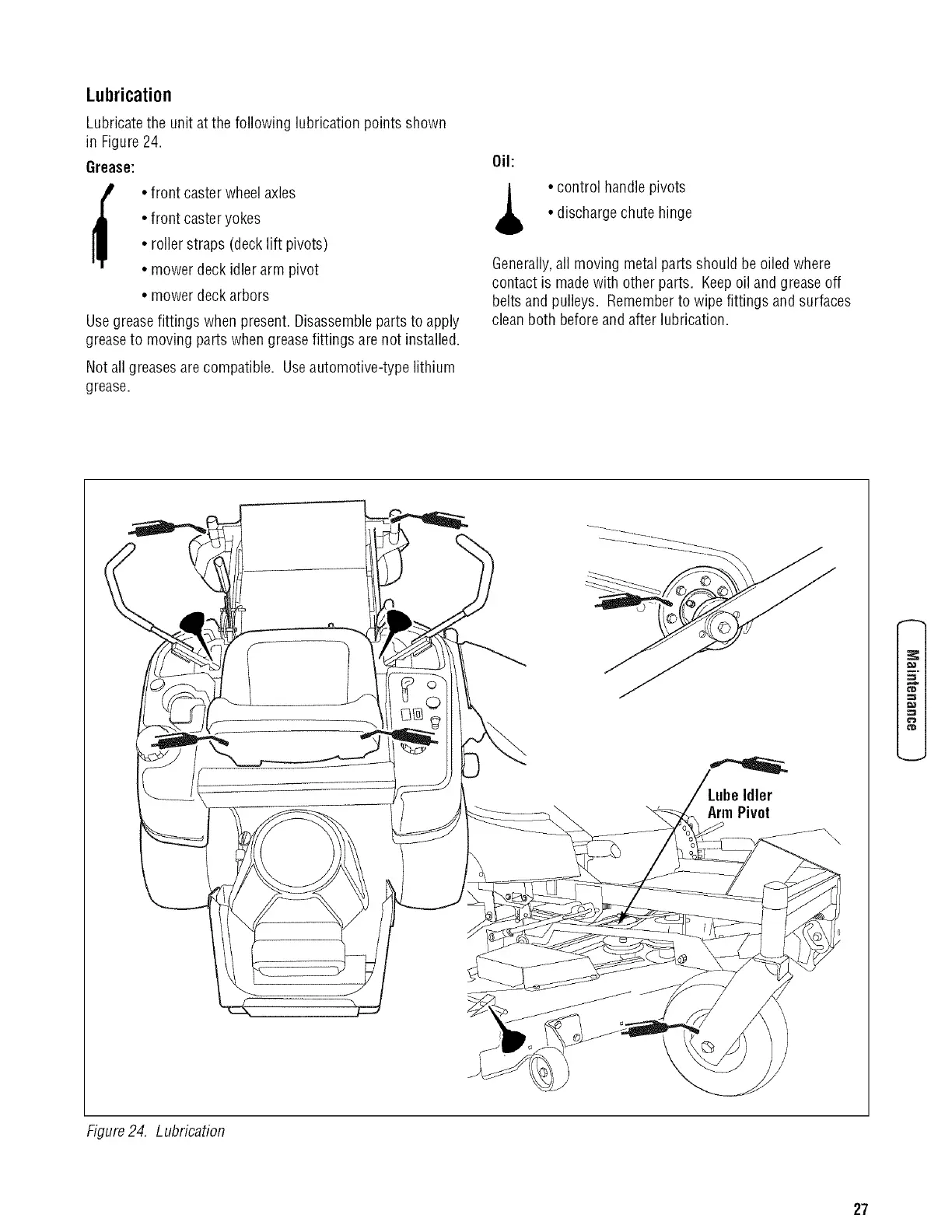

Figure24. Lubrication
27
To Next Page
