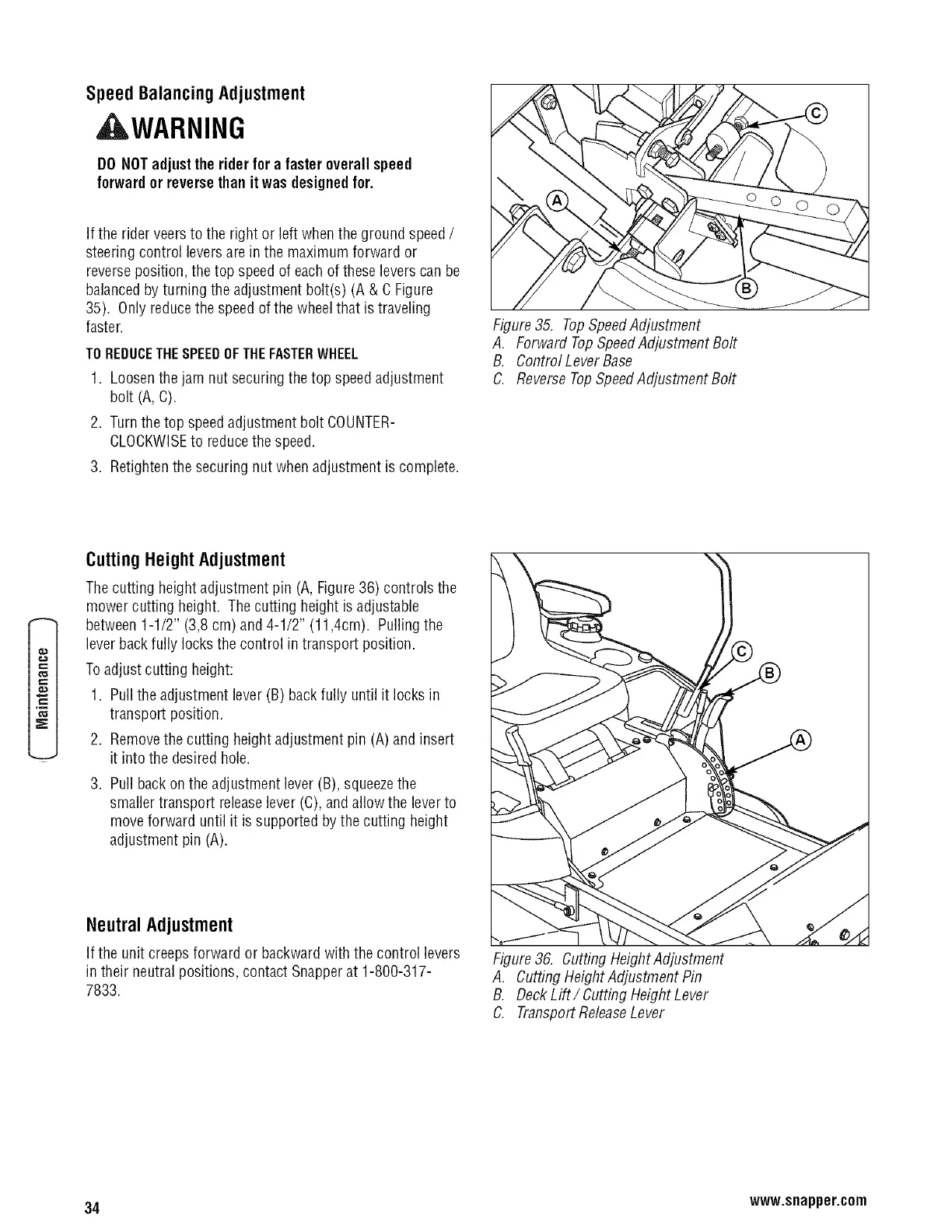

SpeedBalancingAdjustment
_WARNING
DO NOTadjusttherider for a faster overall speed
forward or reversethanit was designedfor.
If the rider veers to the right or left when the ground speed/
steering control leversare in the maximum forward or
reverseposition, the top speedof each of these leverscan be
balancedby turning the adjustment bolt(s) (A & C Figure
35). Only reducethe speedof the wheel that is traveling
faster.
TOREDUCETHESPEEDOFTHEFASTERWHEEL
1. Loosenthe jam nut securing thetop speed adjustment
bolt (A, C).
2. Turnthe top speedadjustment bolt COUNTER-
CLOCKWISEto reducethe speed.
3. Retightenthe securing nut when adjustment is complete.
Figure35. TopSpeedAdjustment
A, Forward TopSpeedAdjustment Bolt
B, Control Lever Base
C. ReverseTopSpeedAdjustment Bolt
CuttingHeightAdjustment
Thecutting heightadjustment pin (A, Figure36) controls the
mower cutting height. Thecutting height is adjustable
between 1-1/2" (3,8 cm) and 4-1/2" (11,4cm). Pulling the
leverback fully locks the control in transport position.
Toadjust cutting height:
1. Pull the adjustment lever (B) back fully until it locks in
transport position.
2. Removethe cutting heightadjustment pin (A) and insert
it into the desired hole.
3. Pull back on the adjustment lever (B), squeezethe
smaller transport releaselever (C), and allow the lever to
move forward until it is supported bythe cutting height
adjustment pin (A).
NeutralAdjustment
If the unit creeps forward or backwardwith the control levers
in their neutral positions, contact Snapperat 1-800-317-
7833.
Figure36. Cutting HeightAdjustment
A, Cutting Height Adjustment Pin
B, DeckLift/ Cutting Height Lever
C. TransportReleaseLever
34 www.snapper.com
