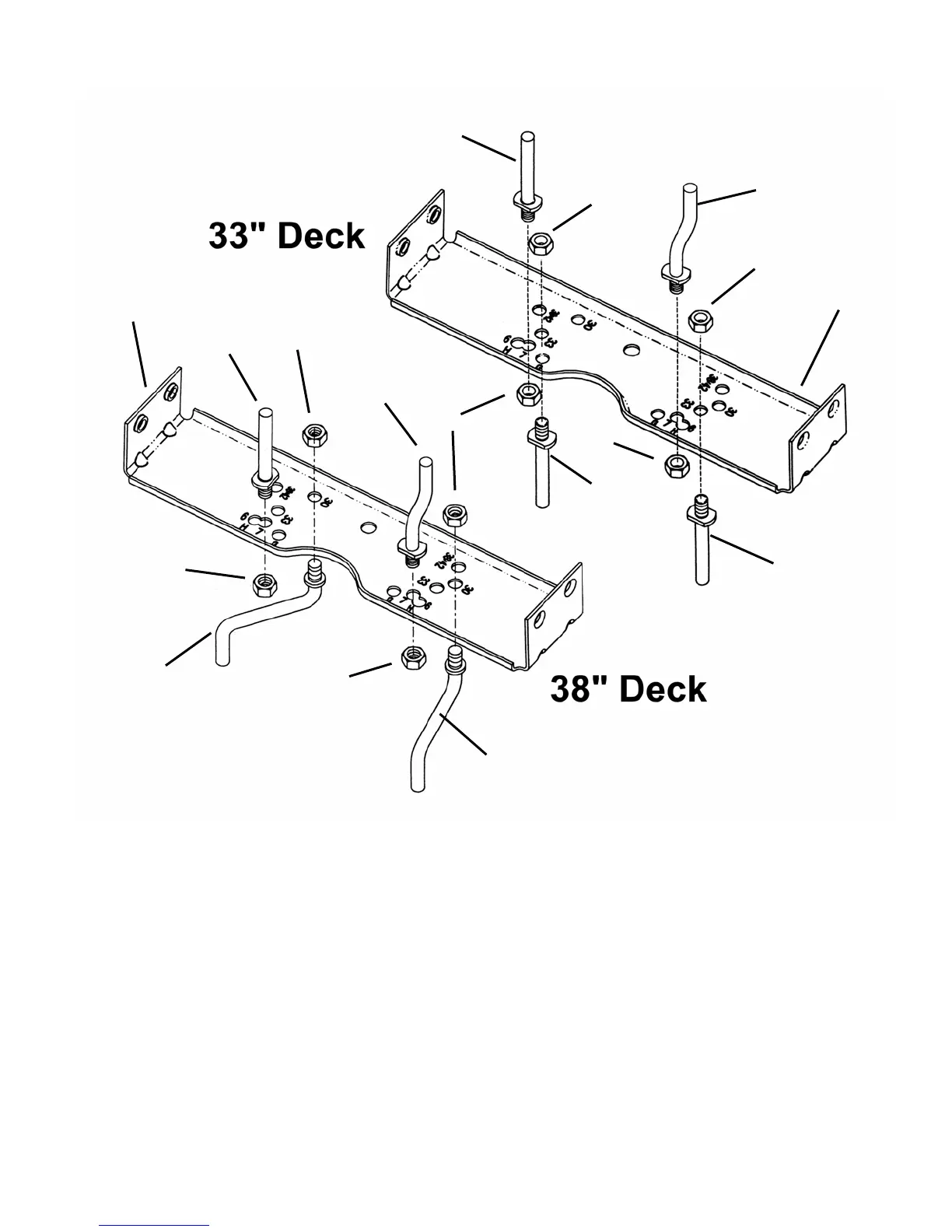

BELT GUIDE ASSEMBLY
ITEM PART NO. DESCRIPTION
1 3-5963 BRACKET, Belt Guide
2 9-1575 NUT, 5/16-18 Hex Center Lock, Grade B or 5 (4)
3 2-8303 STUD, Belt Guide (2 or 4)
4 3-5528 STUD, Belt Guide 38” Dual Brake Deck (2)
5 7-2924 STUD, Belt Guide
6 2-8304 STUD, Belt Guide 33” Deck (2)
MANUAL No. 06448
