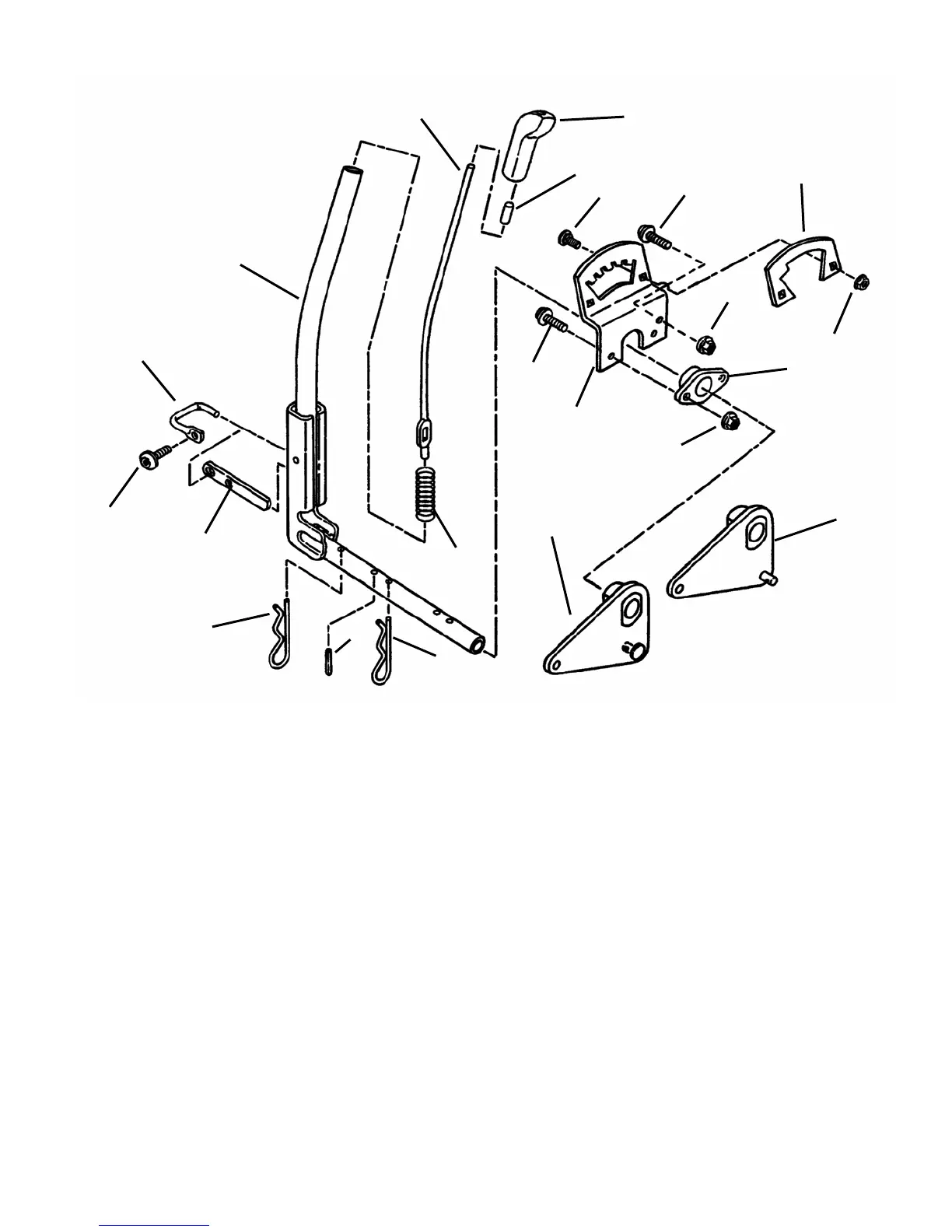

IMPLEMENT LIFT PARTS
ITEM PART NO. DESCRIPTION
1 4-1655 LEVER, Implement Lift (33” Decks)
-- 4-1015 LEVER, Implement Lift (38” Decks)
2 2-2565 ROD, Lift Lever
3 1-9363 KNOB, Lift Lever
4 1-4361 CAP, Lift Lever Rod
5 3-3449 QUADRANT, Lift Lever
6 9-1001 SCREW, 5/16-18 x 5/8” Truss Head (Torx)
7 9-1000 SCREW, 5/16-18 x 7/8” Truss Head (Torx) (2)
8 9-0005 BOLT, 1/4-20 x 1/2” Short Neck Carriage, Grade 5 (2)
9 3-4559 DETENT, High Cut Lockout (Euro Models Only!)
10 9-0583 NUT, 1/4-20 Hex Flange Lock, Grade 5 (2)
11 9-0585 NUT, 5/16-18 Hex Flange Lock, Grade 5 (2)
12 2-2567 PIVOT, Lift Lever
13A 4-1254 BELL CRANK, Lift Lever (33” Decks)
13B 4-1255 BELL CRANK, Lift Lever (38” Decks)
14 2-2566 SPRING
15 1-3844 PIN, Hair, 5/32 x 2 5/8” (2)
16 2-2895 PIN, Dowel, 1/4 x 1 1/8”
17 2-2568 DETENT, Latch
18 9-0999 SCREW, 1/4-20 x 5/8” Truss Head (Torx)
19 2-4742 LATCH, Pivot
MANUAL No. 06448
