4
NOTE: TO ORDER HOOD A
SSEMBLY FOR
MODELS LT145H33GBV AND
LT145H38GBV USE ASSEMBLY No. 5-2921.
29
NOTE: TO ORDER HOOD A
SSEMBLY FOR
MODEL ELT145H33GBV USE
ASSEMBLY No. 5-3528.
10
14
17
16
18
19
20
28
26
25
23
24
22
21
15
13
4
3
2
1
9
27
7
11
6
5
4
8
25
5
6
10
12
15
13
3
1
27
26

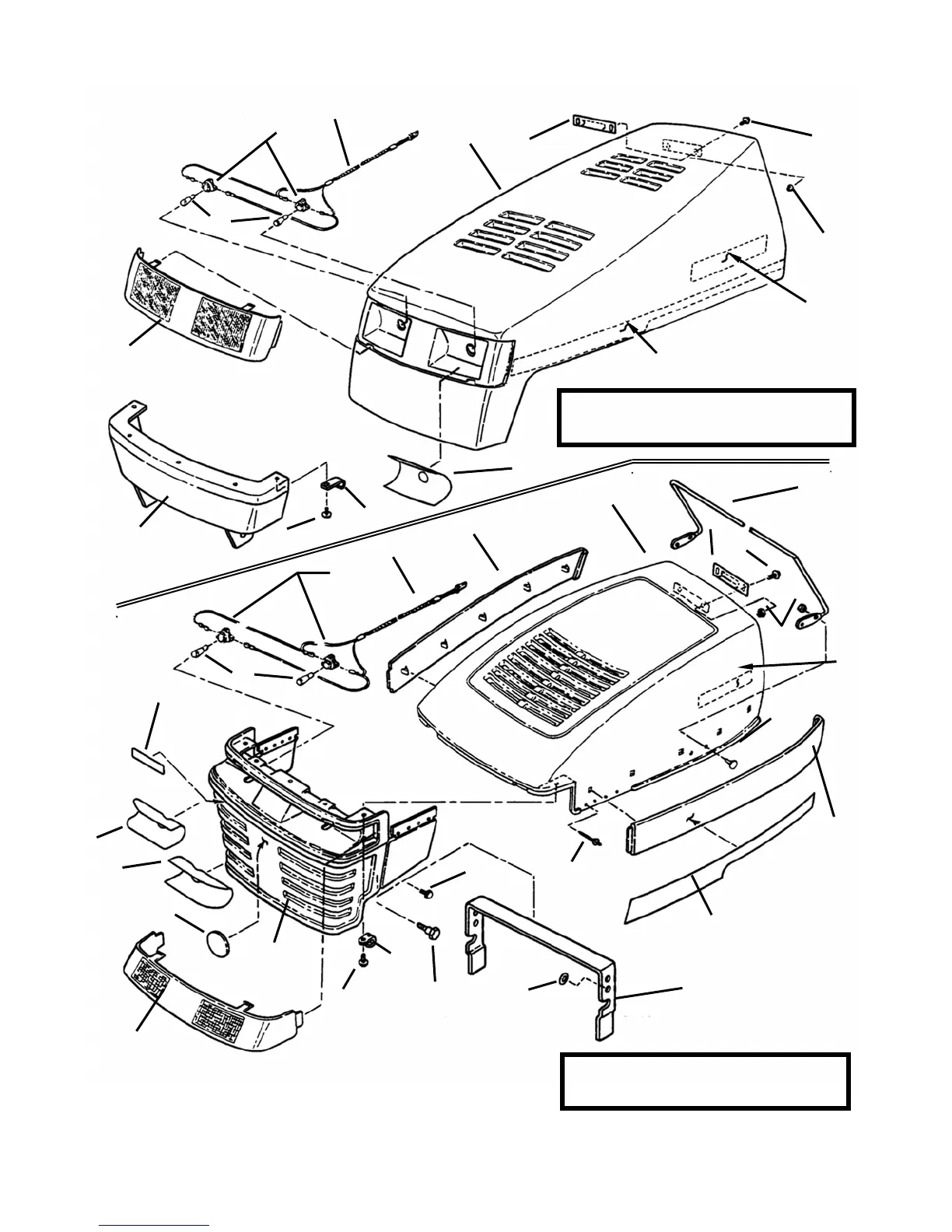

HOOD, BUMPER, HEADLIGHTS & COMPONENTS
MANUAL No. 06448
3
5
Table of Contents
Table of Contents
2
Wheels, Front and Rear
3
Manual
4
Hood, Bumper, Headlights & Components
4
Hood, Bumper, Headlights & Components
5
Steering Wheel, Console, Fuel Tank
6
Steering Wheel, Console, Fuel Tank
7
Seat, Rear Fender & Components
8
Cast Front Axle
10
Bearing
11
Cast Front Axle
11
TRANSMISSION GROUP (Hydro Drive)
12
TRANSMISSION GROUP (Hydro Drive)
13
Frame, Clutch, Brake & Steering Components
14
Blade Engagement & Transmission Controls
16
Blade Engagement & Transmission Controls
17
Belt Guide Assembly
18
Electrical Components
19
33" Cutting Deck, Belts, Brakes
20
38" Cutting Deck, Belts, Brakes
25
SPINDLE (30" & 33" Decks)
26
SPINDLE (38" Decks)
27
Engine Components
28
ELECTRICAL (Wiring Schematic)
30
Implement Lift Parts
31
Decals
32
Decals
33
Hydro Reservoir Assembly
34
MANUAL no
36
