Snapper G Series Parts Manual

19
9
8
10
11
3
2
1
12
9
13
5
4
7
6

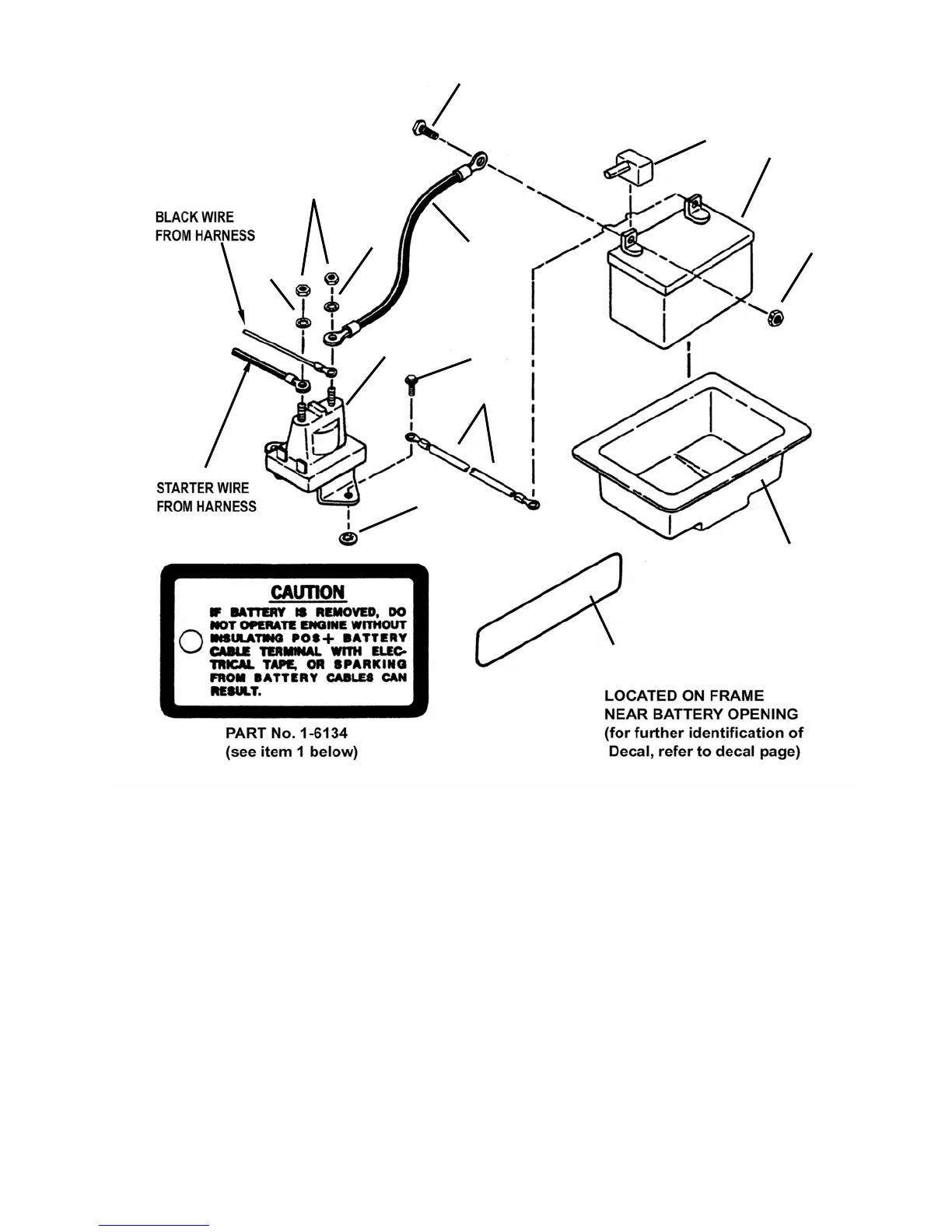

ELECTRICAL COMPONENTS
ITEM PART NO. DESCRIPTION
1 6-0618 KIT, Battery (Includes Caution Tag, Part No.
1-6134 & Battery without Acid)
2 9-0372 NUT, 1/4-20 Hex Center Lock, Grade B or 5 (2)
3 1-7853 TRAY, Battery
4 1-2485 RETAINER, 1/4“ Bolt
5 2-6414 CABLE, Ground (Black)
6 7-5622 SOLENOID (Was 18604)
7 9-0539 SCREW, 1/4-20 x 1/2” Self-Tapping (2)
8 9-0977 NUT, 1/4-20 Hex Jam (2)
9 9-1314 WASHER, 1/4 Internal Tooth Lock (2)
10 1-4476 CABLE, Positive (Red)
11 2-7172 SCREW, 1/4-20 x 5/8” Hex Head Cap, Grade 5 (2)
12 1-2444 COVER, Positive Terminal
13 2-6415 DECAL, Caution, Battery Installation
MANUAL No. 06448
